GEAR CHANGE MECHANISM
EX500F3 GPZ500S 1996 AUSTRIA

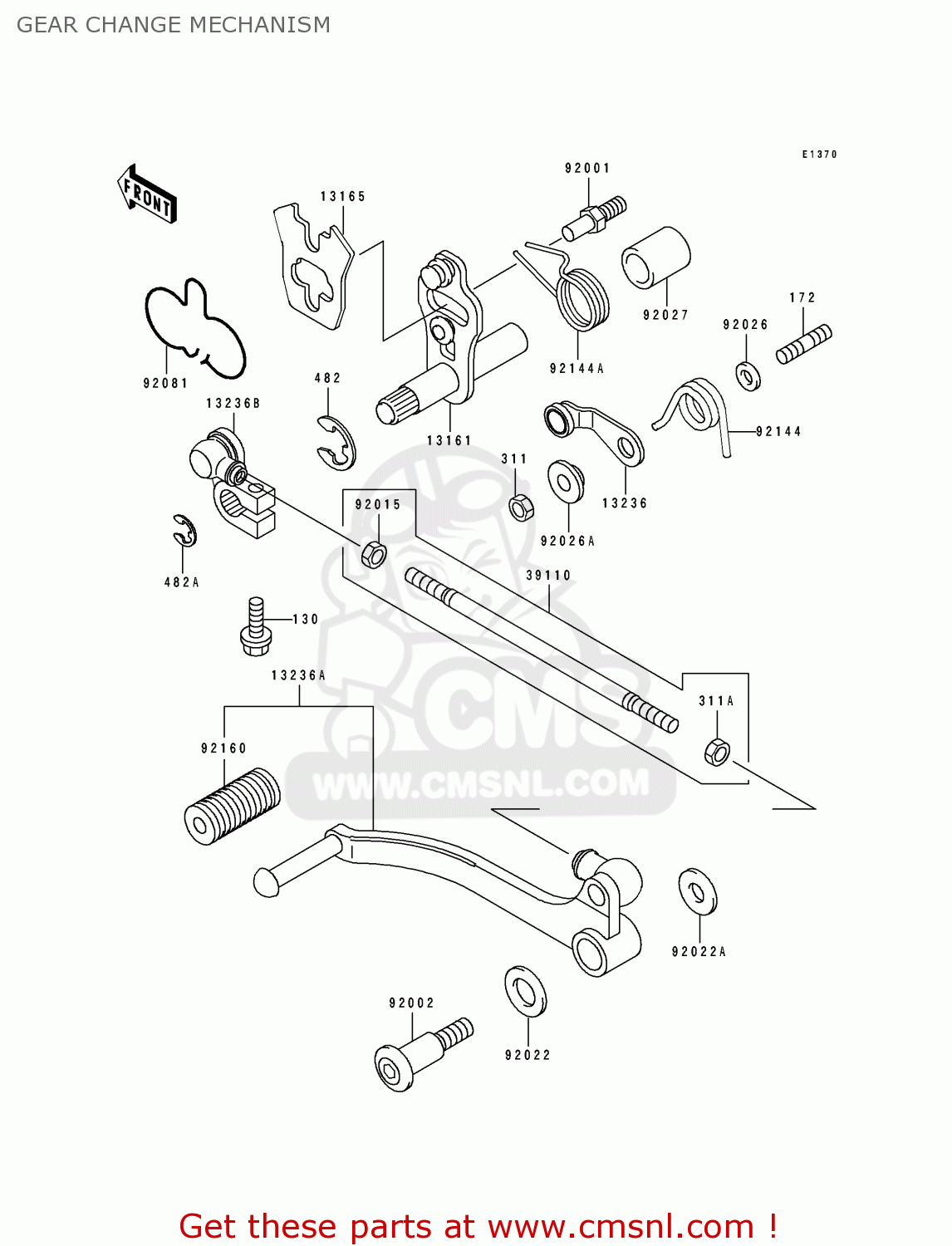

Gear change mechanism diagram EX500F3 GPZ500S 1996 AUSTRIA
GEAR CHANGE MECHANISM EX500F3 GPZ500S 1996 AUSTRIA
×
prices are in EUR
ref
part #
description
quantity
130
130S0620
ref: 130
BOLT-FLANGED,6X20,BLA
€ 2.50
172
172G0614
ref: 172
STUD,6X14
€ 1.00
311
311G0600
ref: 311
NUT,6M/M
€ 0.50
311A
311J0600
ref: 311A
NUT-HEX
€ 1.00
482
482J0200
ref: 482
CIRCLIP-TYPE-E,12MM
€ 2.50
482A
482L7000
ref: 482A
CIRCLIP-TYPE-E
€ 2.50
13161
131611117
ref: 13161
LEVER-COMP-CHANGE SHA
€ 56.00
13165
131651034
ref: 13165
PAWL,CHANGE LEVER
€ 7.00
13236
132361103
ref: 13236
LEVER-COMP,GEAR POSIT
€ 13.00
13236A
132361153
ref: 13236A
LEVER-COMP,CHANGE PED
€ 51.50
13236B
132361154
ref: 13236B
LEVER-COMP,CHANGE LIN
€ 55.00
39110
391101077
ref: 39110
ROD-ASSY-TIE
€ 9.50
92001
920011455
ref: 92001
BOLT
€ 3.00
92002
920021926
ref: 92002
BOLT,CHANGE PEDAL
€ 10.50
92015
920151178
ref: 92015
NUT
€ 2.50
92022
92022072
ref: 92022
WASHER,12.5X22X1.2
€ 2.50
92022A
920221561
ref: 92022A
WASHER,8.5X20X1.6
€ 2.50
92026
92026094
ref: 92026
WASHER,THRUST
€ 6.50
92026A
920261217
ref: 92026A
SPACER
€ 3.50
92027
920271440
ref: 92027
COLLAR,13X18.3X21.5
€ 3.50
92081
920811785
ref: 92081
SPRING,CHANGE LEVER
€ 6.00
92144
921441180
ref: 92144
SPRING,POSITION LEVER
€ 6.00
92144A
921441644
ref: 92144A
SPRING,CHANGE PEDAL R
€ 6.00
92160
921601036
ref: 92160
DAMPER,CHANGE PEDAL
€ 3.50
