COWLING
EX500D7 GPZ500S 2000 UNITED KINGDOM

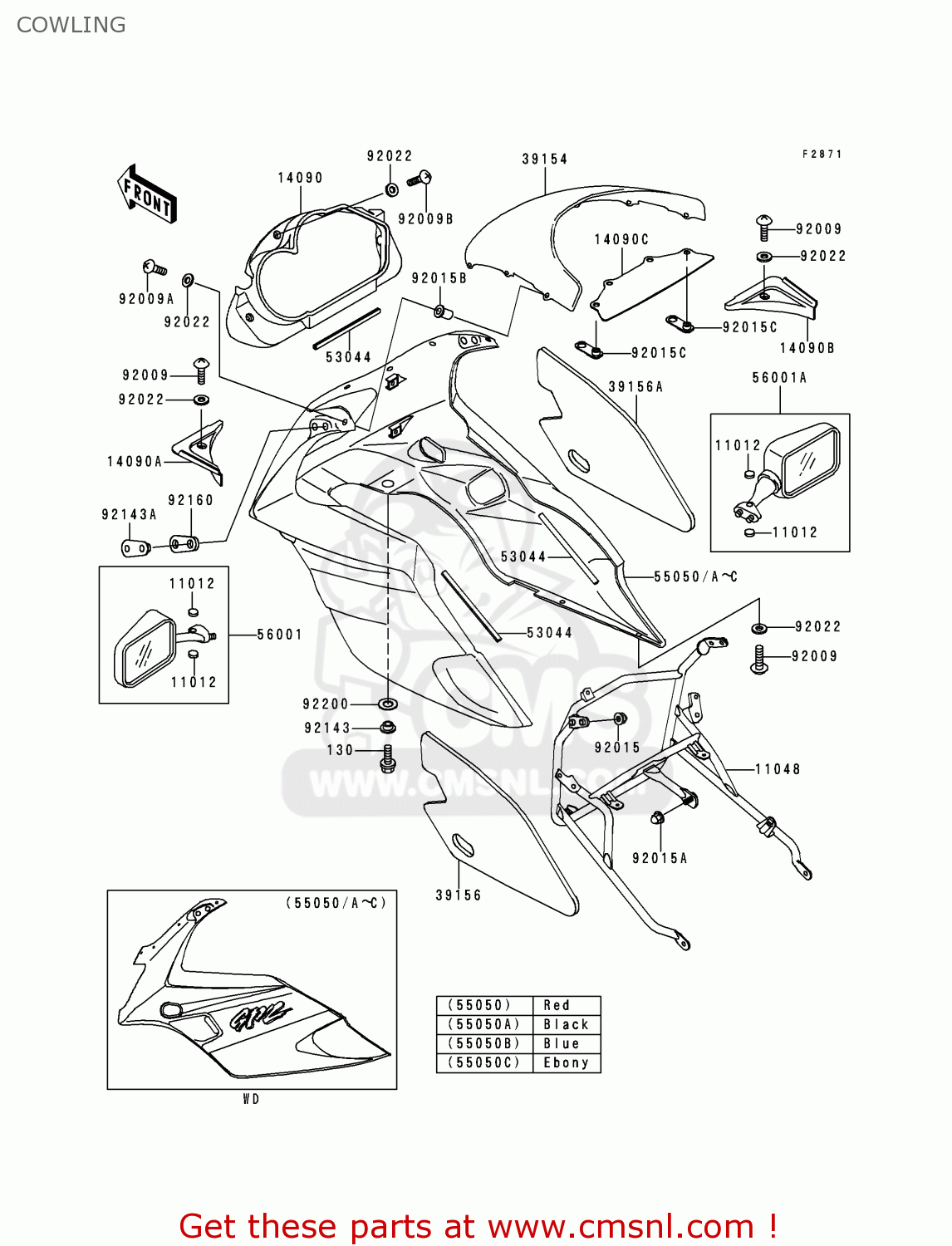

Cowling diagram EX500D7 GPZ500S 2000 UNITED KINGDOM
COWLING EX500D7 GPZ500S 2000 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
130
130J0620
ref: 130
BOLT-FLANGED,6X20
€ 2.50
11012
110121818
ref: 11012
CAP,MIRROR
€ 2.00
11048
110481368
ref: 11048
BRACKET,UPP COWLING
€ 198.50
14090
140901397
ref: 14090
COVER,INNER COWLING,C
€ 91.50
14090A
140901398
ref: 14090A
COVER,INNER COWLING,L
€ 46.00
14090B
140901399
ref: 14090B
COVER,INNER COWLING,R
€ 41.50
14090C
140901488
ref: 14090C
COVER,WINDSHIELD
€ 15.00
39154
391541125
ref: 39154
WINDSHIELD
€ 184.50
39156
391561423
ref: 39156
PAD,UPP COWLING,LH
€ 18.00
39156A
391561424
ref: 39156A
PAD,UPP COWLING,RH
€ 18.00
53044
530441276
ref: 53044
TRIM
€ 6.00
55050B
550505306E1
ref: 55050B
COWLING-ASSY.,UPP,C.L
€ 866.00
55050C
550505307H8
ref: 55050C
COWLING-ASSY.,UPP,EBO
€ 892.00
56001
5600113766C
ref: 56001
MIRROR-ASSY,LH,EBONY
€ 81.50
56001A
5600113776C
ref: 56001A
MIRROR-ASSY,RH,EBONY
€ 81.50
92009
920091479
ref: 92009
SCREW,5X15
€ 2.50
92009A
920091654
ref: 92009A
SCREW
€ 0.50
92009B
920091660
ref: 92009B
SCREW
€ 3.00
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92015A
920151174
ref: 92015A
NUT,CAP,8MM,BLACK
€ 3.00
92015B
920151757A
ref: 92015B
NUT,5MM
€ 5.00
92015C
920151949
ref: 92015C
NUT
€ 5.00
92022
920221521
ref: 92022
WASHER,NYLON,5.3X11.5
€ 2.50
92143
921431088
ref: 92143
COLLAR,L=6.6
€ 3.50
92143A
921431699
ref: 92143A
COLLAR
€ 2.50
92160
921601089
ref: 92160
DAMPER,MIRROR
€ 4.50
92200
922001013
ref: 92200
WASHER,10.3X20X1
€ 3.00
