CARBURETOR PARTS
EX500D7 GPZ500S 2000 UNITED KINGDOM

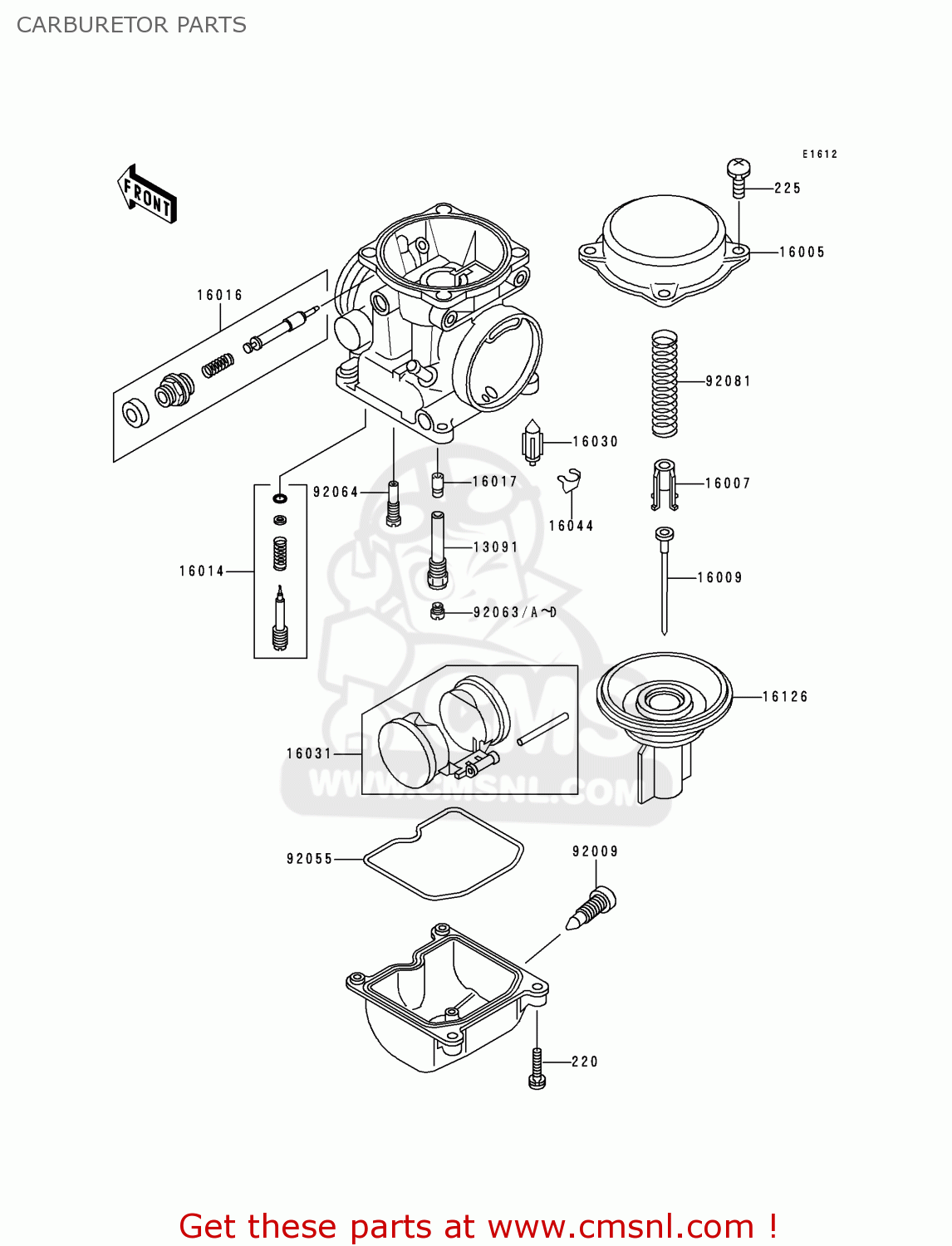

Carburetor parts diagram EX500D7 GPZ500S 2000 UNITED KINGDOM
CARBURETOR PARTS EX500D7 GPZ500S 2000 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
16005
160051057
ref: 16005
TOP-CHAMBER,MIXING,27
€ 30.50
16007
160071117
ref: 16007
SEAT-SPRING,THROTTLE
€ 16.50
16009
160091342
ref: 16009
NEEDLE-JET,N36N
€ 24.00
16014
160141081
ref: 16014
SCREW-PILOT AIR
€ 15.50
16016
160161090
ref: 16016
PLUNGER,STARTER
€ 46.50
16017
160171208
ref: 16017
JET-NEEDLE,#6
€ 37.00
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261173
ref: 16126
VALVE,VACUUM
€ 159.50
92009
920091551
ref: 92009
SCREW,DRAIN
€ 6.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631014
ref: 92063
MAIN JET,#135
€ 9.50
92063A
920631069
ref: 92063A
MAIN JET,2ND #125
€ 9.50
92063B
920631074
ref: 92063B
MAIN JET,2ND #128
€ 9.50
92063C
920631075
ref: 92063C
MAIN JET,2ND #130
€ 9.50
92063D
920631076
ref: 92063D
JET-MAIN,#132
€ 9.50
92064
920641101
ref: 92064
JET-PILOT,#35
€ 11.50
92081
920811874
ref: 92081
SPRING,VACUUM VALVE
€ 17.50
