CRANKCASE

EX500D6 NINJA 500 1999 USA CALIFORNIA CANADA

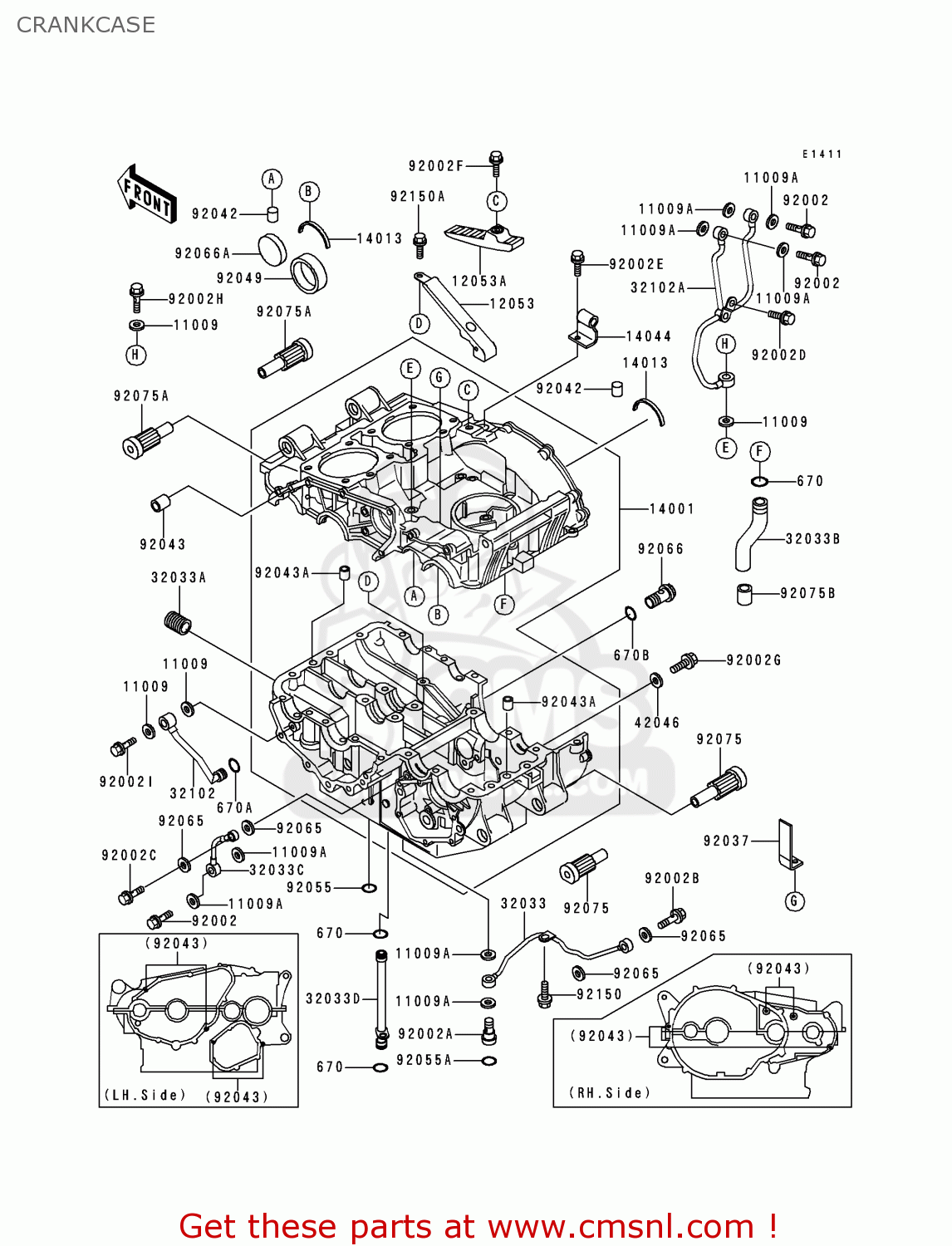

Crankcase diagram EX500D6 NINJA 500 1999 USA CALIFORNIA CANADA

CRANKCASE EX500D6 NINJA 500 1999 USA CALIFORNIA CANADA
CRANKCASE EX500D6 NINJA 500 1999 USA CALIFORNIA CANADA
CRANKCASE EX500D6 NINJA 500 1999 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009A
110091344
ref: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.50
12053
120531216
ref: 12053
GUIDE-CHAIN,LWR
120531216
€ 31.50
12053A
120531217
ref: 12053A
GUIDE-CHAIN,UPP
120531217
€ 33.50
14001
140011090
ref: 14001
SET-CRANKCASE
€ 1,807.00
14013
14013004
ref: 14013
RING-BEARING SETTING
14013004
€ 7.00
14044
140441059
ref: 14044
HOLDER-CABLE
140441059
€ 5.00
32033
320331530
ref: 32033
PIPE
320331530
€ 38.50
32033A
320331535
ref: 32033A
PIPE
320331535
€ 9.00
32033B
320331538
ref: 32033B
PIPE
320331538
€ 26.00
32033C
320331539
ref: 32033C
PIPE
320331539
€ 29.50
32033D
320331574
ref: 32033D
PIPE
320331574
€ 39.50
32102
321021541
ref: 32102
PIPE
321021541
€ 29.00
32102A
321021710
ref: 32102A
PIPE
321021710
€ 84.50
42046
42046008
ref: 42046
WASHER,6.5X24X1.2
€ 2.00
92002
920021429
ref: 92002
BOLT,8X20
920021429
€ 7.00
92002A
920021467
ref: 92002A
BOLT
€ 19.00
92002B
920021471
ref: 92002B
BOLT,BANJO,6X28
€ 12.00
92002C
920021473
ref: 92002C
BOLT,BANJO,6X19
920021473
€ 8.50
92002D
920021569
ref: 92002D
BOLT,6X12
920021569
€ 2.50
92002E
920021570
ref: 92002E
BOLT,6X16
920021570
€ 3.00
92002F
920021571
ref: 92002F
BOLT,6X16
920021571
€ 4.00
92002G
920021656
ref: 92002G
BOLT, 6 X 14
920021656
€ 3.00
92002H
920021809
ref: 92002H
BOLT
€ 10.00
92002I
920021941
ref: 92002I
BOLT,BANJO,10X30
€ 6.50
92037
920371679
ref: 92037
CLAMP
920371679
€ 3.50
92042
92042016
ref: 92042
PIN,DOWEL,6X16
92042016
€ 3.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920431264
ref: 92043A
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92049
920491070
ref: 92049
SEAL-OIL,AE2343F0
920491070
€ 11.50
92055
92055048
ref: 92055
RING-O,OD=18
92055048
€ 3.00
92055A
92055074
ref: 92055A
O RING
92055074
€ 5.50
92065
92065096
ref: 92065
GASKET,FUEL COCK (NAS)
92065096
€ 3.00
92066
920661205
ref: 92066
PLUG,MAIN GALLERY
920661205
€ 19.00
92066A
920661208
ref: 92066A
PLUG,RCA 345.5
920661208
€ 10.00
92075
920751678
ref: 92075
DAMPER,L=79.5
920751678
€ 33.00
92075A
920751679
ref: 92075A
DAMPER,L=93
920751679
€ 35.50
92075B
920751742
ref: 92075B
DAMPER
920751742
€ 3.00
92150
921501826
ref: 92150
BOLT,6X12
921501826
€ 2.50
670
670B1510
ref: 670
O RING,9.8X1.9
670B1510
€ 2.50
670A
670B2010
ref: 670A
O RING,10MM
670B2010
€ 1.00
670B
670B2021
ref: 670B
O RING,21MM
670B2021
€ 3.00
92150A
921501868
ref: 92150A
BOLT,6X12
921501868
€ 2.00
