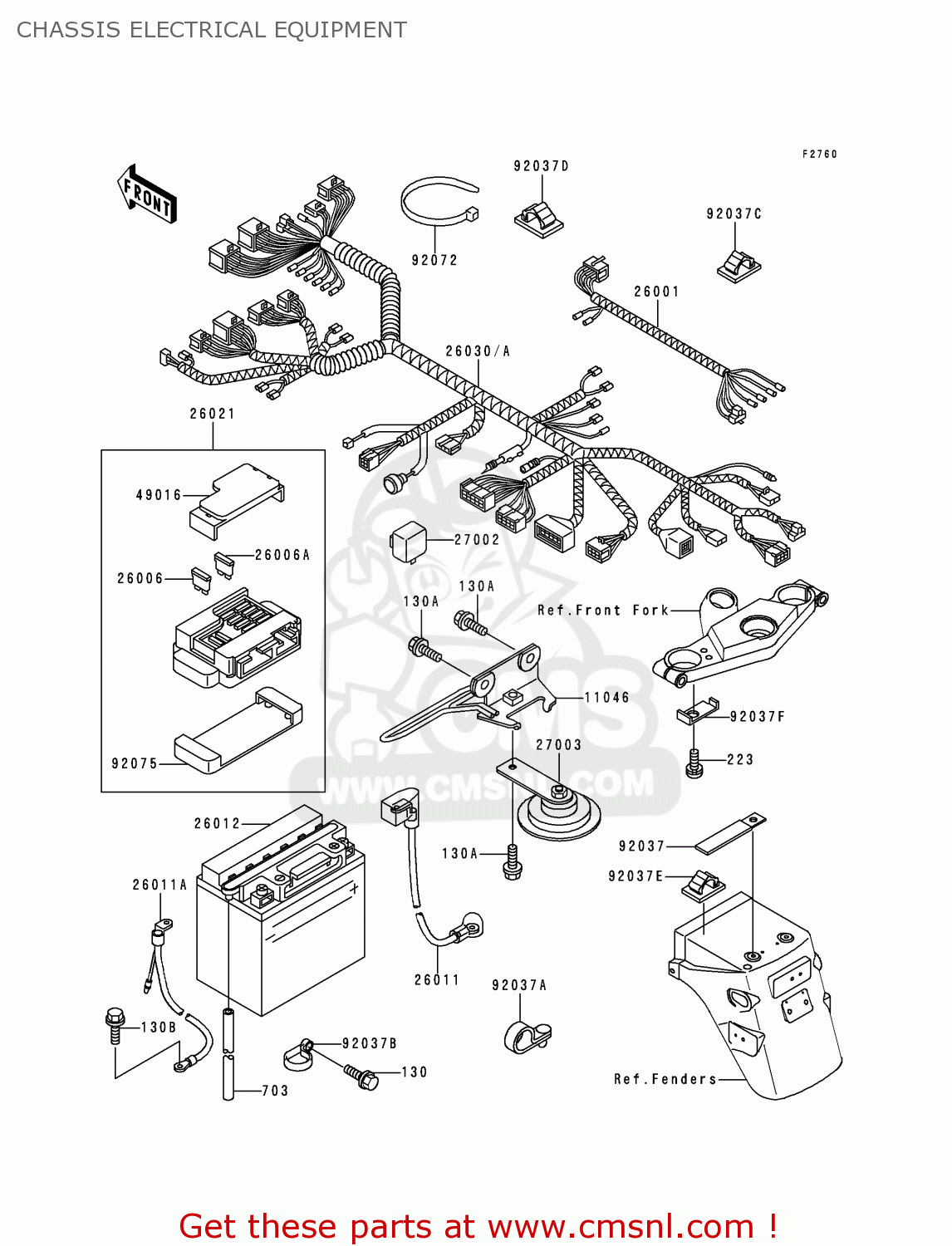

CHASSIS ELECTRICAL EQUIPMENT

ref

part #

description

quantity

130

130B0610
ref: 130

BOLT,FLANGED,6X10

€ 0.50

130A

130C0612
ref: 130A

BOLT-FLANGED,6X12

€ 1.50

130B

130V0610
ref: 130B

BOLT-FLANGED,6X10

€ 0.50

223

223C0610
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

703

703A08530
ref: 703

TUBE-RUBBER,8X12X530

€ 13.50

11046

110461233
ref: 11046

BRACKET,HORN&CABLE

€ 15.00

26001

260011859
ref: 26001

HARNESS,FRONT SIGNAL

€ 27.50

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111388
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 26.50

26011A

260111389
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 26.50

26012

260121349
ref: 26012

BATTERY,FB14L-A2,12V

€ 61.50

26021

260211089
ref: 26021

JUNCTION BOX

€ 126.00

26030

260301620
ref: 26030

HARNESS,MAIN

€ 204.00

27002

270021101
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270031288
ref: 27003

HORN

€ 62.00

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92037B

920371727
ref: 92037B

CLAMP,HOSE

€ 5.50

92037C

920371793
ref: 92037C

CLAMP,HARNESS

€ 4.00

92037D

920371794
ref: 92037D

CLAMP

€ 5.00

92037E

920371816
ref: 92037E

CLAMP,HARNESS

€ 5.00

92037F

920371916
ref: 92037F

CLAMP,HARNESS

€ 3.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

all assemblies
