FRONT CALIPER
EX500B4 1991 EUROPE FR GR IT NR SP

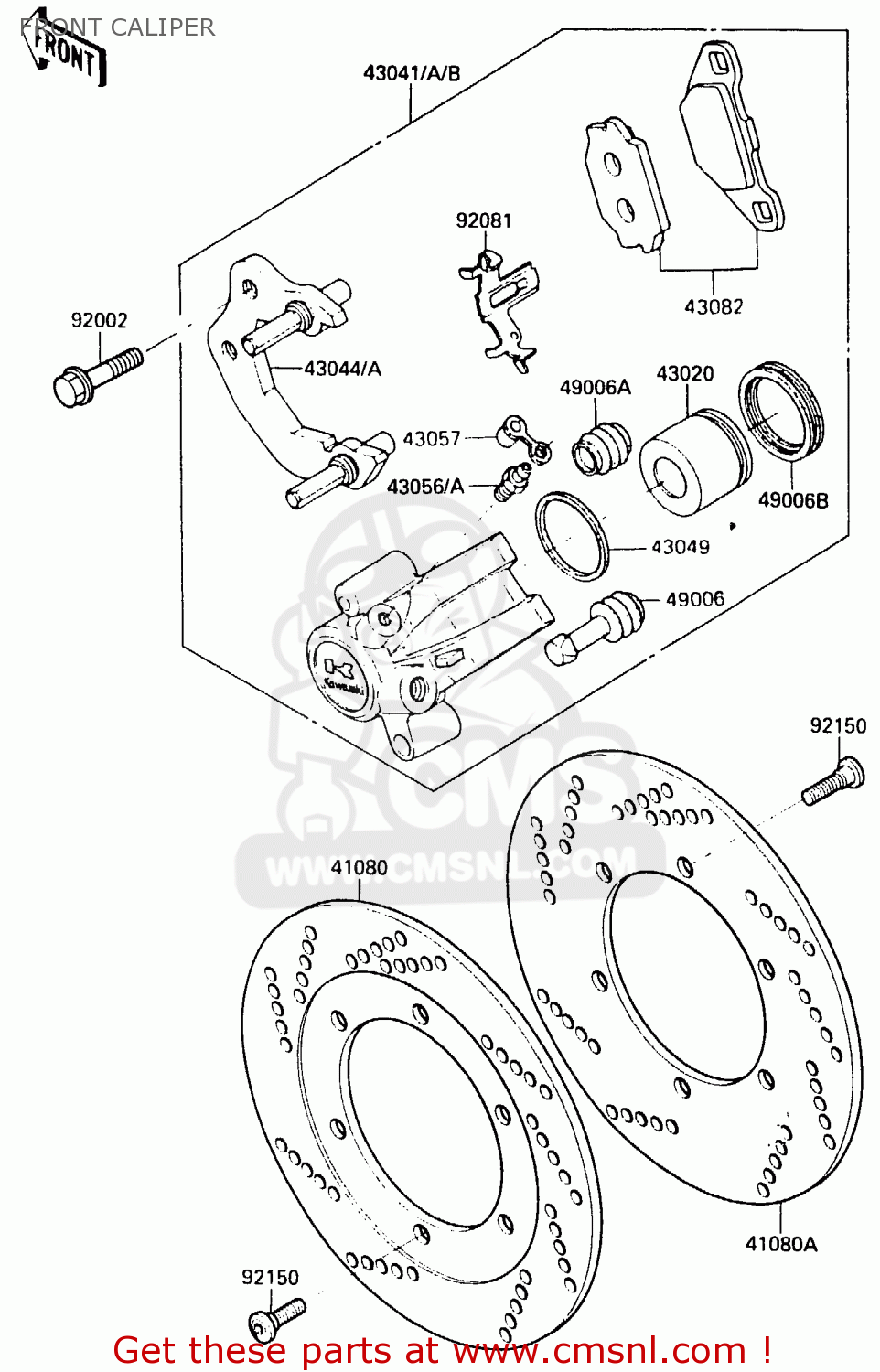

Front caliper diagram EX500B4 1991 EUROPE FR GR IT NR SP
FRONT CALIPER EX500B4 1991 EUROPE FR GR IT NR SP
×
prices are in EUR
ref
part #
description
quantity
41080
410801214
ref: 41080
DISC,FR,LH
€ 257.50
41080A
410801215
ref: 41080A
DISC,FR,RH
€ 253.00
43020
430201082
ref: 43020
PISTON-COMP-BRAKE
€ 49.00
43041A
430411358
ref: 43041A
CALIPER-ASSY,FR,RH
€ 441.00
43041B
430411397
ref: 43041B
CALIPER-ASSY, FR, LH
€ 425.00
43044
430441027
ref: 43044
HOLDER-COMP-CALIPER,F
€ 118.50
43044A
430441028
ref: 43044A
HOLDER-COMP-CALIPER
€ 121.50
43049
430491026
ref: 43049
PACKING,PISTON SEAL (NAS)
€ 9.00
43056A
430561054
ref: 43056A
BREATHER-BRAKE
€ 16.50
43057
43057003
ref: 43057
CAP-BREATHER
€ 3.00
43082
430821056
ref: 43082
PAD-ASSY-BRAKE,FR (NAS)
€ 42.50
49006
490061054
ref: 49006
BOOT,CALIPER
€ 8.00
49006A
490061055
ref: 49006A
BOOT,CALIPER
€ 4.50
49006B
490061091
ref: 49006B
BOOT,PISTON
€ 11.00
92002
920021489
ref: 92002
BOLT,FLANGED,8X42
€ 6.00
92081
920811341
ref: 92081
SPRING
€ 10.00
92150
921501132
ref: 92150
BOLT,DISC PLATE,8X30
€ 5.00
