CLUTCH
EX500B4 1991 EUROPE FR GR IT NR SP

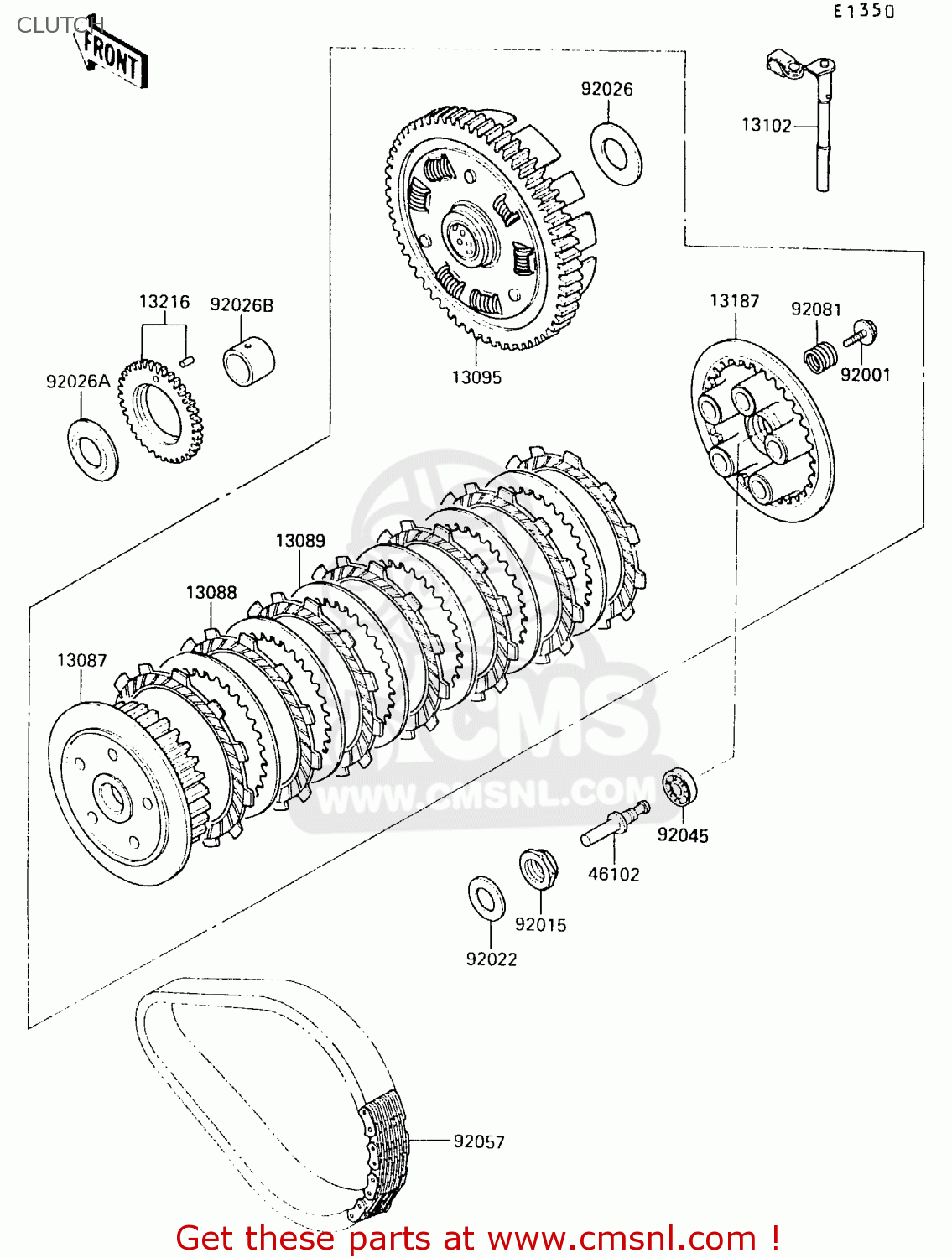

Clutch diagram EX500B4 1991 EUROPE FR GR IT NR SP
CLUTCH EX500B4 1991 EUROPE FR GR IT NR SP
×
prices are in EUR
ref
part #
description
quantity
13087
130871052
ref: 13087
HUB-CLUTCH
€ 96.00
13088
130881013
ref: 13088
PLATE-FRICTION (NAS)
€ 12.50
13089
13089026
ref: 13089
PLATE,CLUTCH STEEL (NAS)
€ 6.50
13095
130951158
ref: 13095
HOUSING-COMP-CLUTCH
€ 433.50
13102
131021087
ref: 13102
RELEASE-COMP-CLUTCH
€ 43.00
13187
131871012
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 61.00
13216
132161066
ref: 13216
GEAR-COMP,40T
€ 59.50
46102
461021134
ref: 46102
ROD,CLUTCH
€ 22.00
92001
920011066
ref: 92001
BOLT, CLUTCH SPR FITT
€ 4.00
92015
920151555
ref: 92015
NUT,20MM
€ 9.00
92022
920221116
ref: 92022
WASHER,20.3X36X2.3
€ 5.50
92026
92026022
ref: 92026
SPACER,25.5X47X2.5
€ 6.50
92026A
920261242
ref: 92026A
SPACER
€ 20.00
92026B
920261243
ref: 92026B
SPACER,25X30X23.5
€ 20.50
92045
920451235
ref: 92045
BEARING-BALL,6001C3ML
€ 15.50
92057
920571229
ref: 92057
CHAIN,PRIMARY
€ 73.50
92081
920811864
ref: 92081
SPRING,CLUTCH
€ 5.00
