OIL PUMP
EX500A6 GPZ500S 1992 UNITED KINGDOM SD

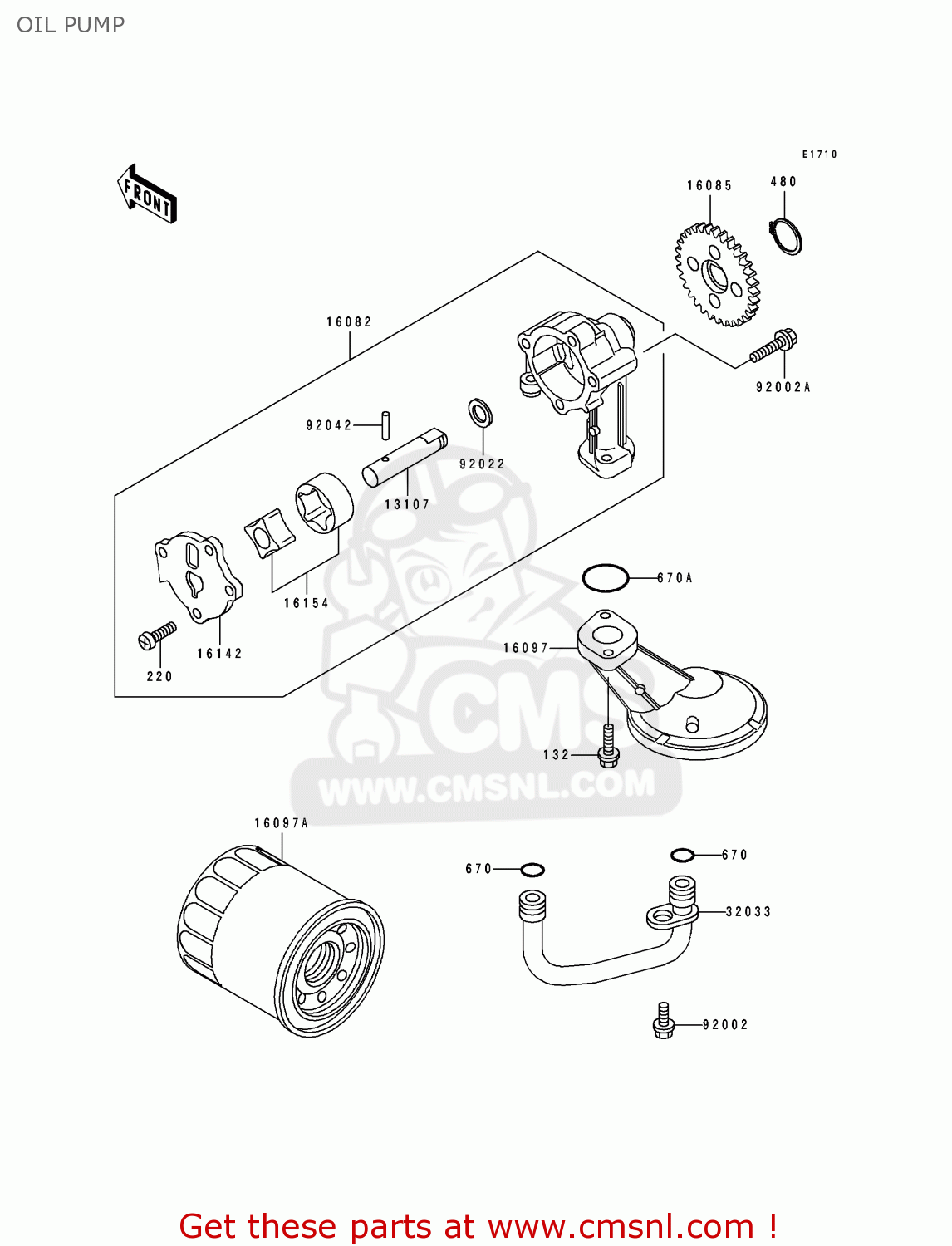

Oil pump diagram EX500A6 GPZ500S 1992 UNITED KINGDOM SD
OIL PUMP EX500A6 GPZ500S 1992 UNITED KINGDOM SD
×
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
480
480J1100
ref: 480
CIRCLIP-TYPE-C,11MM
€ 0.50
670
670B2010
ref: 670
O RING,10MM
€ 1.00
670A
670D2022
ref: 670A
O-RING, 22M/M
€ 6.50
13107
131071202
ref: 13107
SHAFT,OIL PUMP
€ 16.00
16082
160821085
ref: 16082
PUMP-ASSY-OIL
€ 160.50
16085
160851143
ref: 16085
GEAR,OIL PUMP
€ 99.00
16097
160971056
ref: 16097
FILTER-ASSY-OIL
€ 13.00
16097A
160971064
ref: 16097A
FILTER-ASSY-OIL
€ 10.50
16142
161421077
ref: 16142
COVER-PUMP,OIL
€ 11.00
16154
161541066
ref: 16154
ROTOR-PUMP,OIL
€ 39.00
32033
320331540
ref: 32033
PIPE
€ 38.00
92002
920021572
ref: 92002
BOLT,6X12
€ 2.00
92002A
920021609
ref: 92002A
BOLT
€ 3.00
92022
92022311
ref: 92022
WASHER,PLAIN
€ 2.50
92042
92042014
ref: 92042
PIN-GEAR CHANGE DRUM
€ 0.50
