CYLINDER HEAD
EX500A6 GPZ500S 1992 UNITED KINGDOM SD

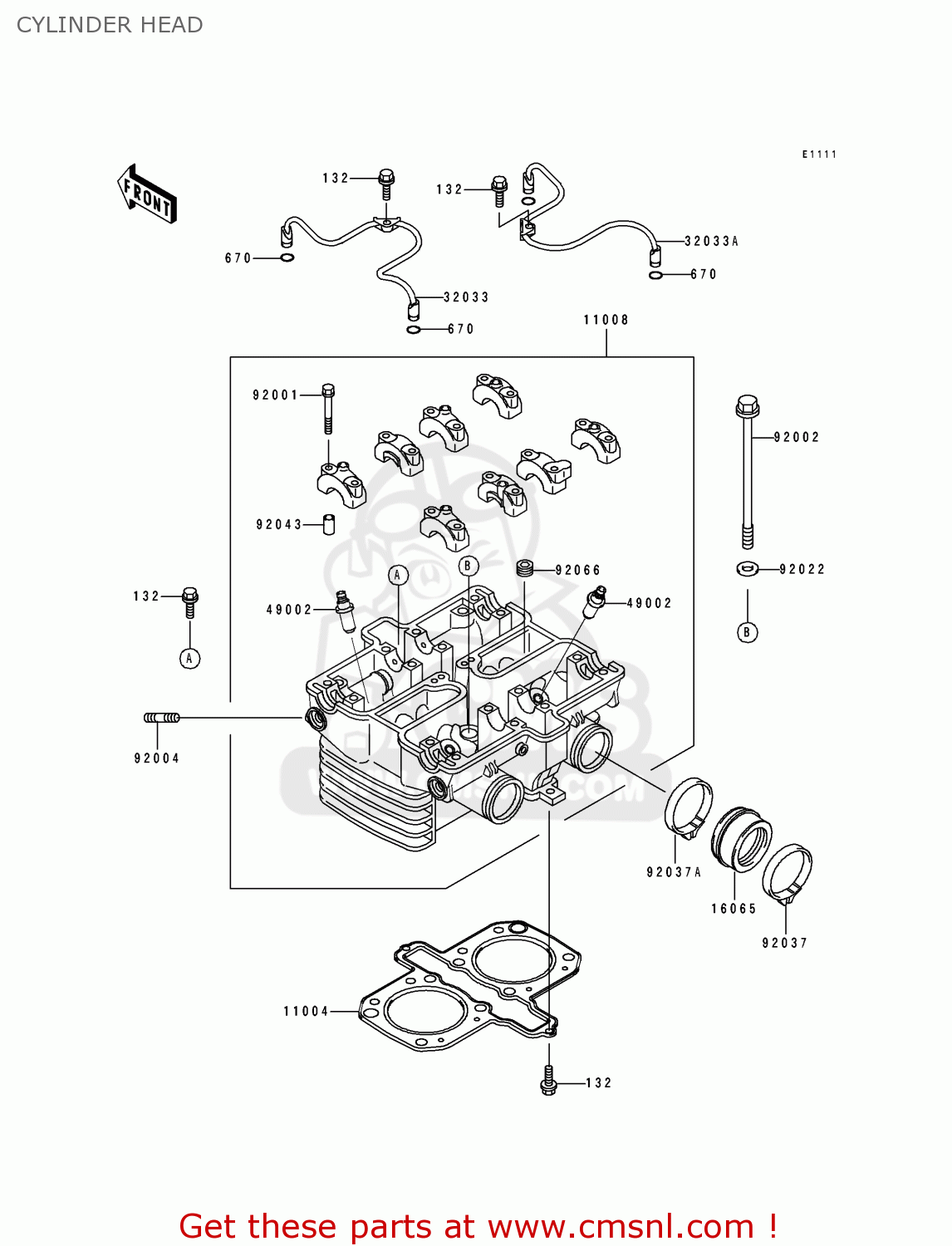

Cylinder head diagram EX500A6 GPZ500S 1992 UNITED KINGDOM SD
CYLINDER HEAD EX500A6 GPZ500S 1992 UNITED KINGDOM SD
×
prices are in EUR
ref
part #
description
quantity
132
132G0620
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
670
670D1507
ref: 670
O RING,7MM
€ 1.00
11004
110041159
ref: 11004
GASKET-HEAD (NAS)
€ 61.00
11008
110081230
ref: 11008
HEAD-COMP-CYLINDER
€ 1,316.00
16065
160651130
ref: 16065
HOLDER-CARBURETOR
€ 25.50
32033
320331527
ref: 32033
PIPE,OIL,LH
€ 44.00
32033A
320331528
ref: 32033A
PIPE,OIL,RH
€ 44.00
49002
490021052
ref: 49002
GUIDE-VALVE
€ 26.00
92001
920011872
ref: 92001
BOLT,6X46
€ 2.50
92002
920021943
ref: 92002
BOLT,10X164
€ 10.50
92004
920041214
ref: 92004
STUD
€ 3.50
92022
920221591
ref: 92022
WASHER,10.5X20X1.6
€ 3.00
92037
920371304
ref: 92037
CLAMP,ID=53,BLACK
€ 7.00
92037A
920371523
ref: 92037A
CLAMP
€ 8.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92066
920661253
ref: 92066
PLUG,PT1/2X12.5
€ 6.50
