IGNITION SYSTEM

EX500A6 1992 USA CALIFORNIA CANADA

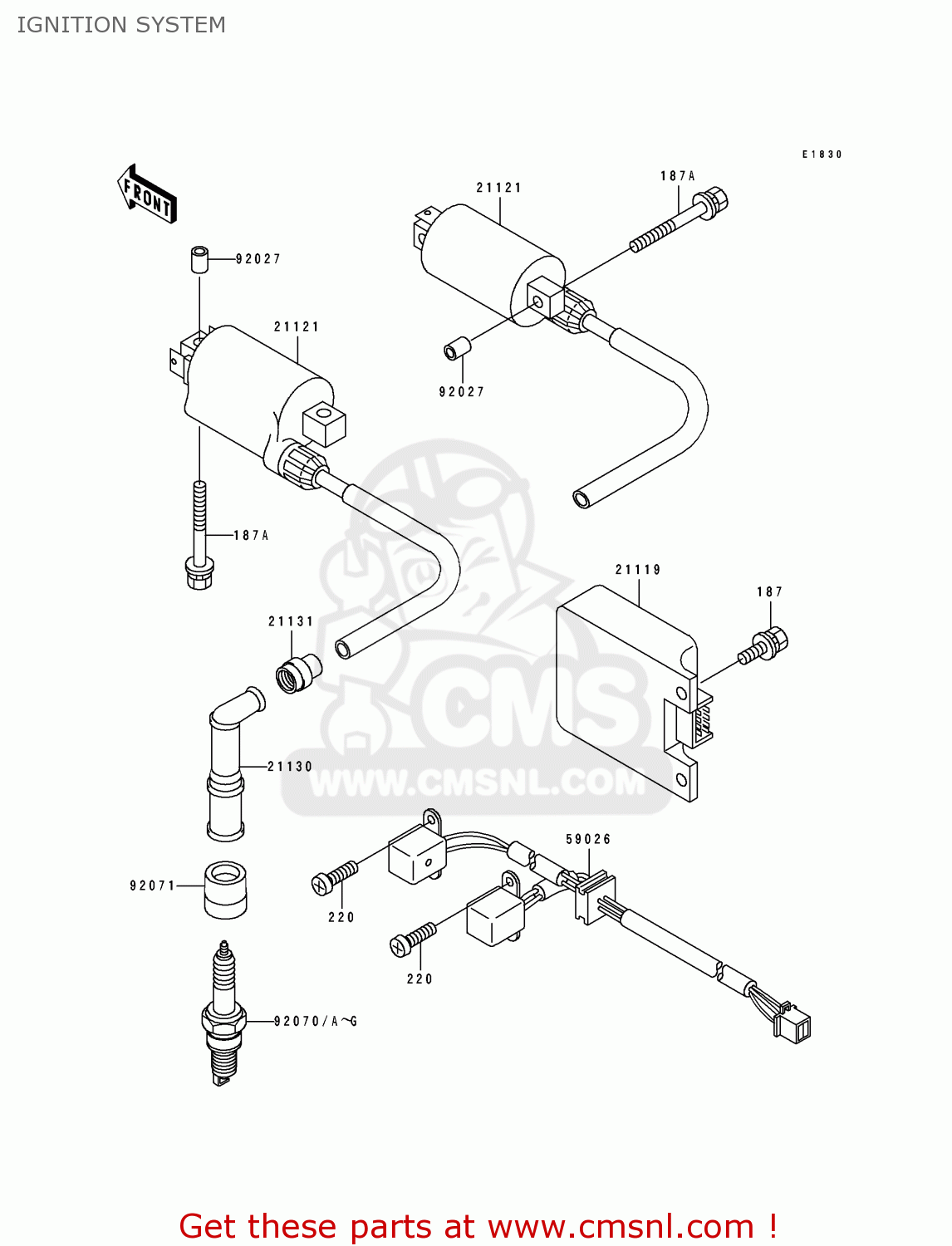

Ignition system diagram EX500A6 1992 USA CALIFORNIA CANADA

IGNITION SYSTEM EX500A6 1992 USA CALIFORNIA CANADA
IGNITION SYSTEM EX500A6 1992 USA CALIFORNIA CANADA
IGNITION SYSTEM EX500A6 1992 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
187
187B0618
ref: 187
BOLT-UPSET-WSP
€ 0.50
187A
187G0625
ref: 187A
BOLT-UPSET-WSP
€ 2.50
220
220B0510
ref: 220
SCREW-PAN-CROS,5X10
220B0510
€ 0.50
21119
211191219
ref: 21119
IGNITER
211191219
€ 479.50
21121
211211153
ref: 21121
COIL-IGNITION
211211153
€ 144.50
21130
211301068
ref: 21130
CAP-SPARK PLUG
211301068
€ 28.00
21131
21131005
ref: 21131
GROMMET,TENSION,ITALY
21131005
€ 4.00
59026
590261066
ref: 59026
COIL-PULSING
590261066
€ 141.50
92027
92027103
ref: 92027
COLLAR
92027103
€ 2.50
92070

ref: 92070
CN
92070A
920701011
ref: 92070A
CAUS
D8EA (NGK SPARKPLUG)
920701011
€ 4.00
92070B
920701019
ref: 92070B
CN
DR8ES (NGK SPARKPLUG)
€ 4.00
92070C

ref: 92070C
CAUS
92070D
920701034
ref: 92070D
CAUS
D9EA (NGK SPARKPLUG)
920701034
€ 4.00
92070E

ref: 92070E
CAUS
92070F

ref: 92070F
CN
92070G
920701116
ref: 92070G
CN
DR8ES-L (NGK SPARKPLU
€ 4.00
92071
920711146
ref: 92071
GROMMET,PLUG CAP
920711146
€ 6.50
