BRAKE PEDAL/TORQUE LINK

EX500A6 1992 USA CALIFORNIA CANADA

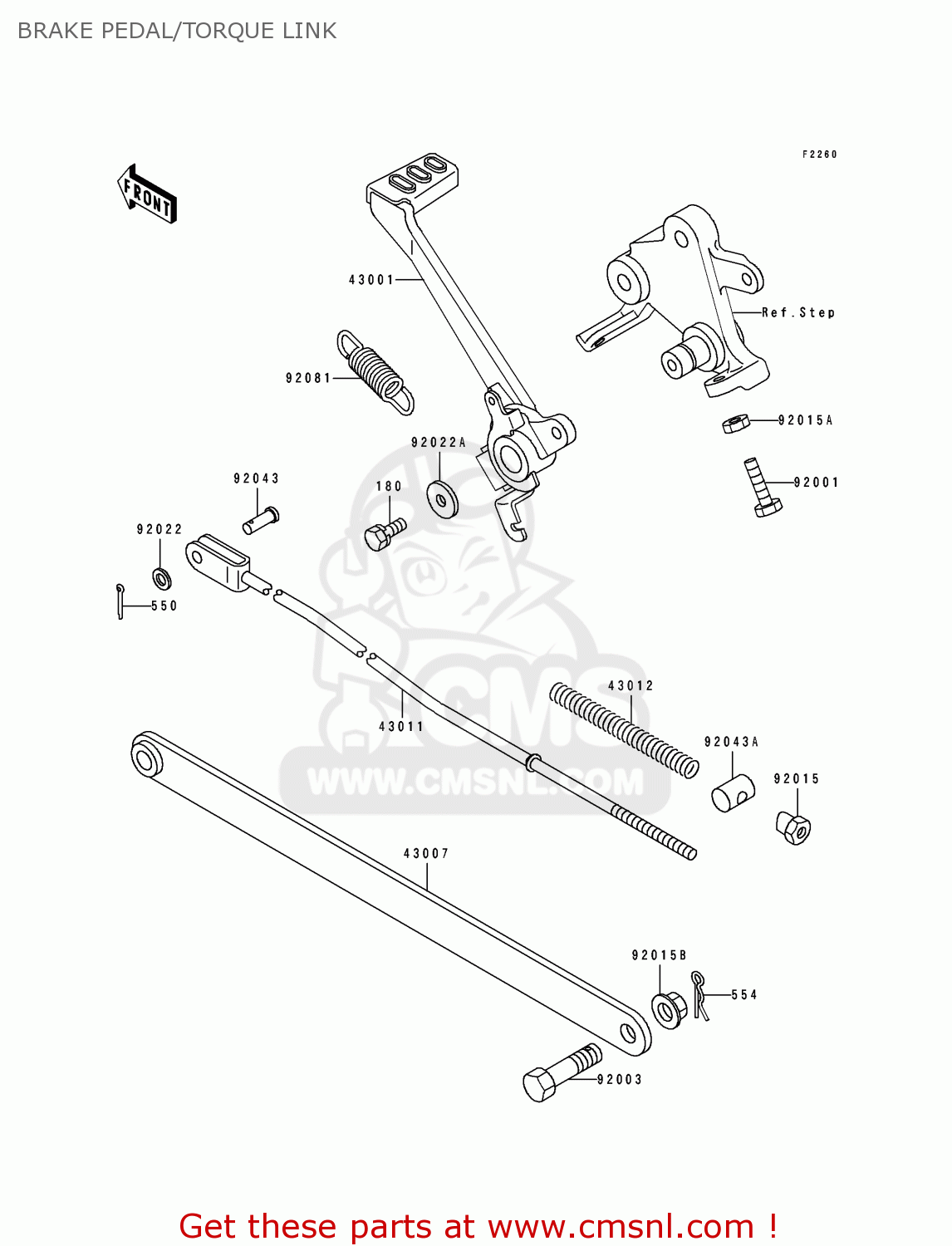

Brake pedal/torque link diagram EX500A6 1992 USA CALIFORNIA CANADA

BRAKE PEDAL/TORQUE LINK EX500A6 1992 USA CALIFORNIA CANADA
BRAKE PEDAL/TORQUE LINK EX500A6 1992 USA CALIFORNIA CANADA
BRAKE PEDAL/TORQUE LINK EX500A6 1992 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
180
180D0616
ref: 180
BOLT-UPSET-WS
180D0616
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
550D2015
€ 1.00
554
554A0800
ref: 554
PIN-SNAP,8MM
554A0800
€ 1.00
43001
430011219
ref: 43001
LEVER-BRAKE,PEDAL
430011219
€ 69.00
43007
430071131
ref: 43007
ROD-TORQUE
430071131
€ 23.00
43011
430111136
ref: 43011
ROD-BRAKE
430111136
€ 13.50
43012
43012001
ref: 43012
SPRING,BRAKE ROD
43012001
€ 3.00
92001
920011090
ref: 92001
BOLT,HEX HEAD,6X25
920011090
€ 2.50
92003
92003034
ref: 92003
BOLT-HEX HEAD,10MM
92003034
€ 9.00
92015
92015042
ref: 92015
NUT-BRAKE ROD ADJUST
92015042
€ 4.00
92015A
920151391
ref: 92015A
NUT,6MM
920151391
€ 2.00
92015B
920151428
ref: 92015B
NUT,FLANGED,10MM
920151428
€ 3.00
92022
920221556
ref: 92022
WASHER,STEP,RR
920221556
€ 0.50
92022A
920221557
ref: 92022A
WASHER,6.5X20X1.6
920221557
€ 1.00
92043
92043064
ref: 92043
PIN-BRAKE ROD FITTING
92043064
€ 4.50
92043A
92043065
ref: 92043A
PIN-BRAKE ROD
92043065
€ 3.50
92081
920811147
ref: 92081
SPRING,BRAKE PEDAL
920811147
€ 8.00
