TRANSMISSION
EX500A2 1988 USA CALIFORNIA CANADA

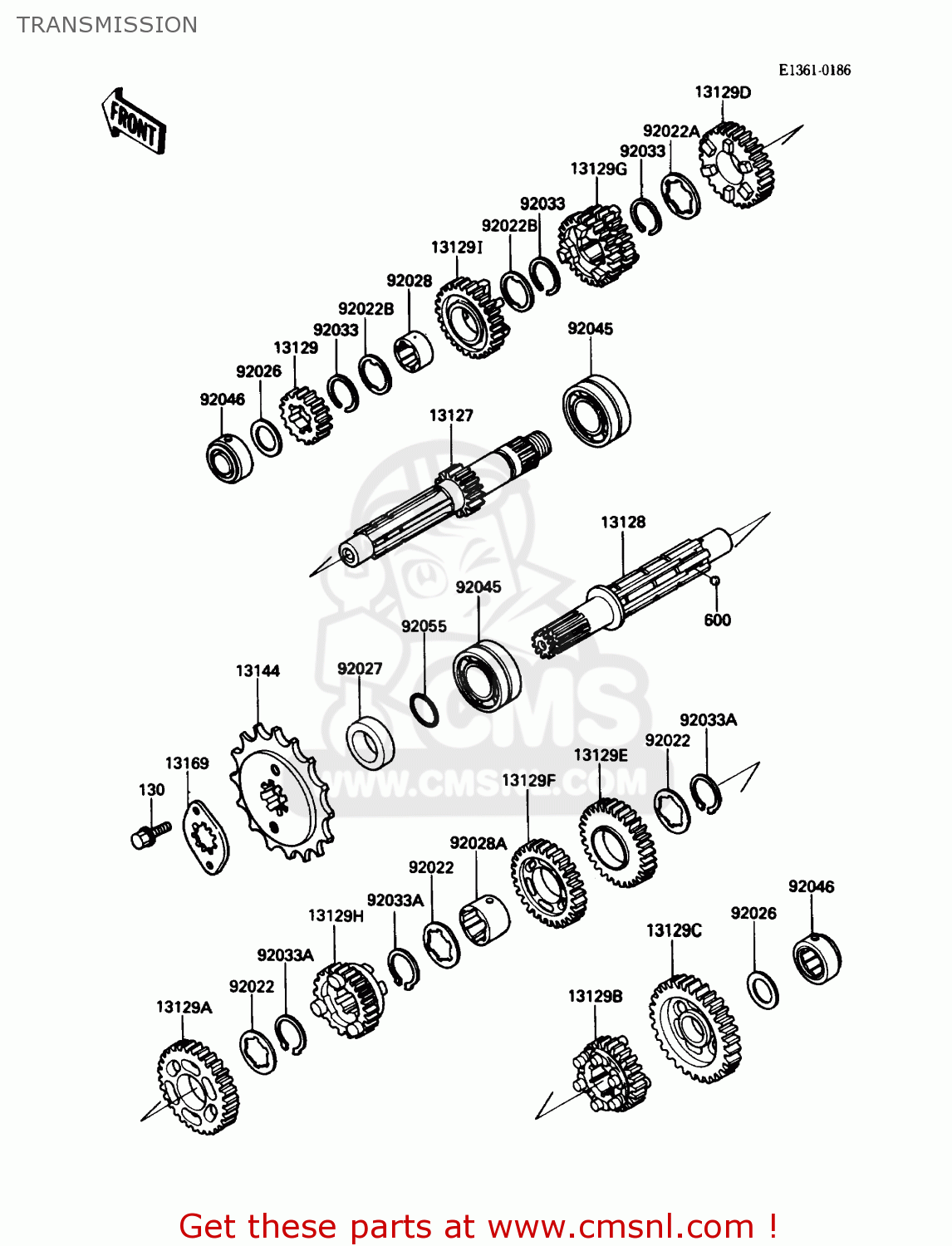

Transmission diagram EX500A2 1988 USA CALIFORNIA CANADA
TRANSMISSION EX500A2 1988 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0610
ref: 130
BOLT-FLANGED,6X10
€ 0.50
600
600A0500
ref: 600
BALL-STEEL,5/32
€ 0.50
13127
131271148
ref: 13127
SHAFT-TRANSMISSION IN
€ 187.50
13128
131281143
ref: 13128
SHAFT-TRANSMISSION OU
€ 178.50
13129
131291077
ref: 13129
2ND GEAR,DRIVE,18T
€ 79.50
13129A
131291078
ref: 13129A
2ND GEAR,OUTPUT,32T
€ 75.50
13129B
131291083
ref: 13129B
GEAR,OUTPUT 5TH,25T
€ 114.50
13129C
131291564
ref: 13129C
GEAR,OUTPUT LOW,36T
€ 120.50
13129D
131291657
ref: 13129D
GEAR,INPUT 5TH,26T
€ 134.50
13129E
131291659
ref: 13129E
GEAR,OUTPUT 3RD,29T
€ 44.00
13129F
131291660
ref: 13129F
GEAR,OUTPUT 4TH,27T
€ 113.50
13129G
131291846
ref: 13129G
GEAR,INPUT 3RD&4TH,21
€ 103.00
13129H
131291858
ref: 13129H
GEAR,OUTPUT TOP,23T
€ 45.00
13129I
131291859
ref: 13129I
GEAR,INPUT TOP,27T
€ 107.00
13144
131441085
ref: 13144
SPROCKET-OUTPUT,16T
€ 25.00
13169
131691109
ref: 13169
PLATE,ENGINE SPROCKET
€ 5.50
92022
920221139
ref: 92022
WASHER,TOOTHED,28.3X3
€ 4.00
92022A
920221861
ref: 92022A
WASHER,TOOTHED,25.3X3
€ 4.00
92022B
92024033
ref: 92022B
WASHER,TOOTHED,25.5X3
€ 4.50
92026
920261022
ref: 92026
SPACER,20.3X30X2.0
€ 3.00
92027
920271857
ref: 92027
COLLAR,25X40X12
€ 18.50
92028
920281003
ref: 92028
BUSHING,DRIVE TOP GER
€ 17.50
92028A
920281364
ref: 92028A
BUSHING,OUTPUT 3RD&4T
€ 22.00
92033
92033026
ref: 92033
CIRCLIP
€ 6.00
92033A
920331037
ref: 92033A
SNAP RING,25.9X1.2T
€ 3.00
92045
92045035
ref: 92045
BEARING-BALL,83993SH2
€ 66.50
92046
920461161
ref: 92046
BEARING-NEEDLE,NKZ20X
€ 46.00
92055
92055035
ref: 92055
O RING
€ 3.00
