FUEL TANK

EX500A2 1988 USA CALIFORNIA CANADA

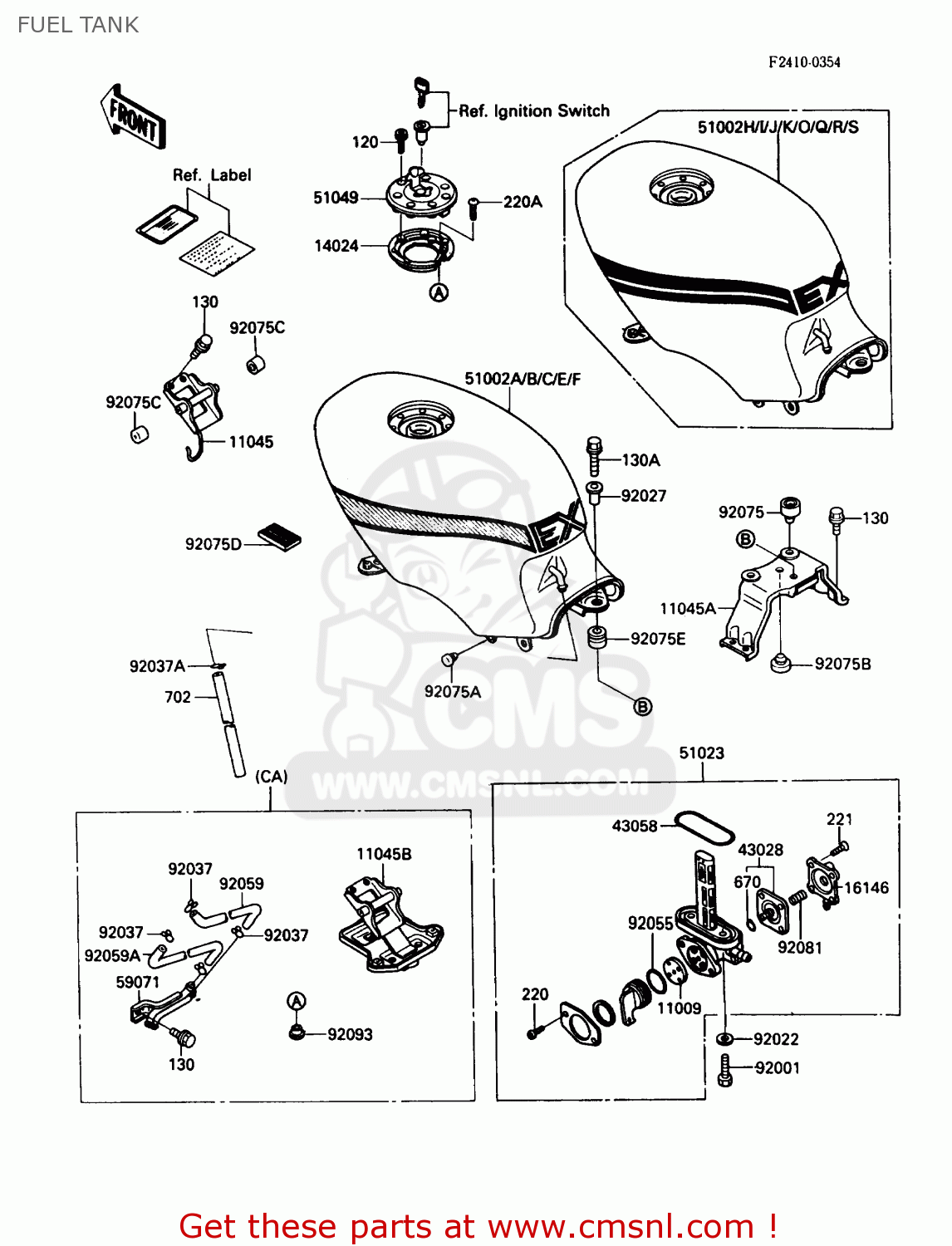

Fuel tank diagram EX500A2 1988 USA CALIFORNIA CANADA

FUEL TANK EX500A2 1988 USA CALIFORNIA CANADA
FUEL TANK EX500A2 1988 USA CALIFORNIA CANADA
FUEL TANK EX500A2 1988 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
110091188
€ 4.00
11045
110451362
ref: 11045
CNUS
BRACKET,FUEL TANK,FR
110451362
€ 28.50
11045A
110451363
ref: 11045A
BRACKET,FUEL TANK,RR
110451363
€ 39.00
11045B
110451389
ref: 11045B
CA
FUEL TANK BRACKET,FRONT
€ 36.00
14025
140251913
ref: 14025
COVER,TANK CAP
140251913
€ 13.50
16146
161461010
ref: 16146
COVER-ASSY,TAP DIAPHR
161461010
€ 17.00
43028
430281033
ref: 43028
DIAPHRAGM
430281033
€ 15.00
43028
430281033
ref: 43028
CNUS
DIAPHRAGM
430281033
€ 15.00
43058
51039003
ref: 43058
'O' RING
51039003
€ 4.00
51002H
510025360B1
ref: 51002H
CNUS
FUEL TANK,COMPLETE,FIRECRACKER RED
€ 505.00
51002I
510025361R1
ref: 51002I
CNUS
FUEL TANK,COMPLETE,PEARL ALPINE WHITE
€ 504.00
51002J
510025362B1
ref: 51002J
CA
FUEL TANK,COMPLETE,FIRECRACKER RED
€ 505.00
51002K
510025363R1
ref: 51002K
CA
FUEL TANK,COMPLETE,PEARL ALPINE WHITE
€ 505.00
120
120S0512
ref: 120
BOLT-SOCKET
120S0512
€ 1.00
130
130B0612
ref: 130
CNUS
BOLT-FLANGED,6X12
€ 0.50
130
130B0612
ref: 130
CA
BOLT-FLANGED,6X12
€ 0.50
51023
510231142
ref: 51023
TAP-ASSY,FUEL
€ 95.50
51049
510491091
ref: 51049
CAP-TANK,FUEL
510491091
€ 88.00
59071
590711122
ref: 59071
CA
EVAPORATOR JOINT
€ 26.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
920011091
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
92022183
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
920271780
€ 4.50
92037
92037010
ref: 92037
CA
CLAMP-FUEL PIPE
92037010
€ 2.50
92037A
920371712
ref: 92037A
CLAMP
920371712
€ 3.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
920551085
€ 3.00
92059
920591767
ref: 92059
CA
EVAPORATOR TUBE
€ 5.50
92059A
920591768
ref: 92059A
CA
TUBE,EVAPO
920591768
€ 6.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
92075A
92075021
ref: 92075A
DAMPER
92075021
€ 3.00
92075B
920751045
ref: 92075B
DAMPER,STAND STOPPER
920751045
€ 5.00
92075C
920751115
ref: 92075C
DAMPER,FUEL TANK FRON
920751115
€ 4.00
92075D
920751489
ref: 92075D
DAMPER,SIDE BAG BRACK
920751489
€ 6.00
92075E
920751736
ref: 92075E
DAMPER
920751736
€ 4.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
920811240
€ 2.50
92093
920931030
ref: 92093
CA
OIL SEAL,FUEL TANK CA
920931030
€ 5.00
130A
130B0830
ref: 130A
BOLT-FLANGED,8X30
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
220C0508
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
