STARTER MOTOR
EX500A1 1987 USA CALIFORNIA CANADA

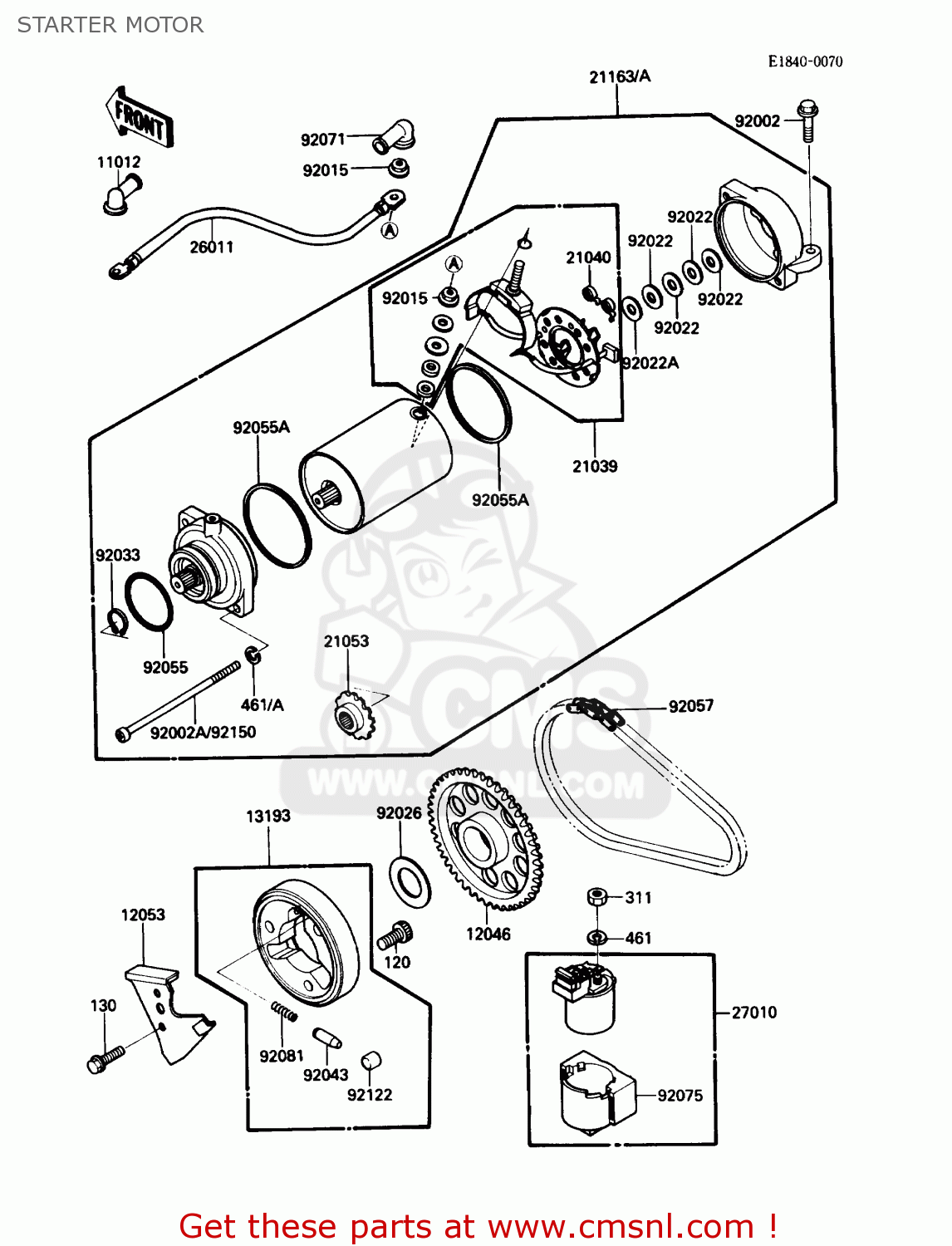

Starter motor diagram EX500A1 1987 USA CALIFORNIA CANADA
STARTER MOTOR EX500A1 1987 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
120
120P0816
ref: 120
BOLT-SOCKET
€ 2.50
130
130G0620
ref: 130
BOLT,FLANGED,6X20
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
461
461F0600
ref: 461
WASHER-SPRING,6MM
€ 0.50
11012
110121354
ref: 11012
CAP,TERMINAL
€ 7.00
12046
120461072
ref: 12046
SPROCKET,ONEWAY CLUTC
€ 69.00
12053
120531214
ref: 12053
GUIDE-CHAIN
€ 29.50
13193
131931060
ref: 13193
CLUTCH-ASSY-ONEWAY
€ 122.00
21039
210391053
ref: 21039
BRUSH,CARBON
€ 89.50
21040
210401003
ref: 21040
SPRING-BRUSH
€ 6.00
21053
210531057
ref: 21053
SPROCKET-ASSY
€ 28.50
21163
211631005
ref: 21163
MOTOR ASSY,STARTER
€ 665.00
26011
260111135
ref: 26011
WIRE-LEAD,STARTER MOT
€ 51.50
27010
270101213
ref: 27010
SWITCH,MAGNETIC
€ 111.00
92002
920021086
ref: 92002
BOLT,6X25
€ 3.50
92002A
920021474
ref: 92002A
BOLT
€ 9.50
92015
920151476
ref: 92015
NUT,6MM
€ 2.50
92022
21025011
ref: 92022
WASHER, THRUST, 0.2T
€ 4.00
92022A
920221132
ref: 92022A
WASHER,9.1X18X0.8
€ 4.00
92026
920261285
ref: 92026
SPACER,25.2X40X1.0
€ 4.00
92033
92033034
ref: 92033
CIRCLIP
€ 7.00
92043
92043087
ref: 92043
PIN
€ 8.00
92055
21027005
ref: 92055
'O' RING,42.8MM
€ 5.50
92055A
920551086
ref: 92055A
O RING,64MM
€ 6.50
92057
920571197
ref: 92057
CHAIN,STARTER,BF05MX6
€ 15.50
92071
21017017
ref: 92071
GROMMET-CORD
€ 6.50
92075
920751863
ref: 92075
DAMPER,MAGNETIC SWITC
€ 14.00
92081
92081110
ref: 92081
SPRING
€ 3.00
92122
92122004
ref: 92122
ROLLER,15X13
€ 7.00
