FUEL TANK
EX500A1 1987 USA CALIFORNIA CANADA

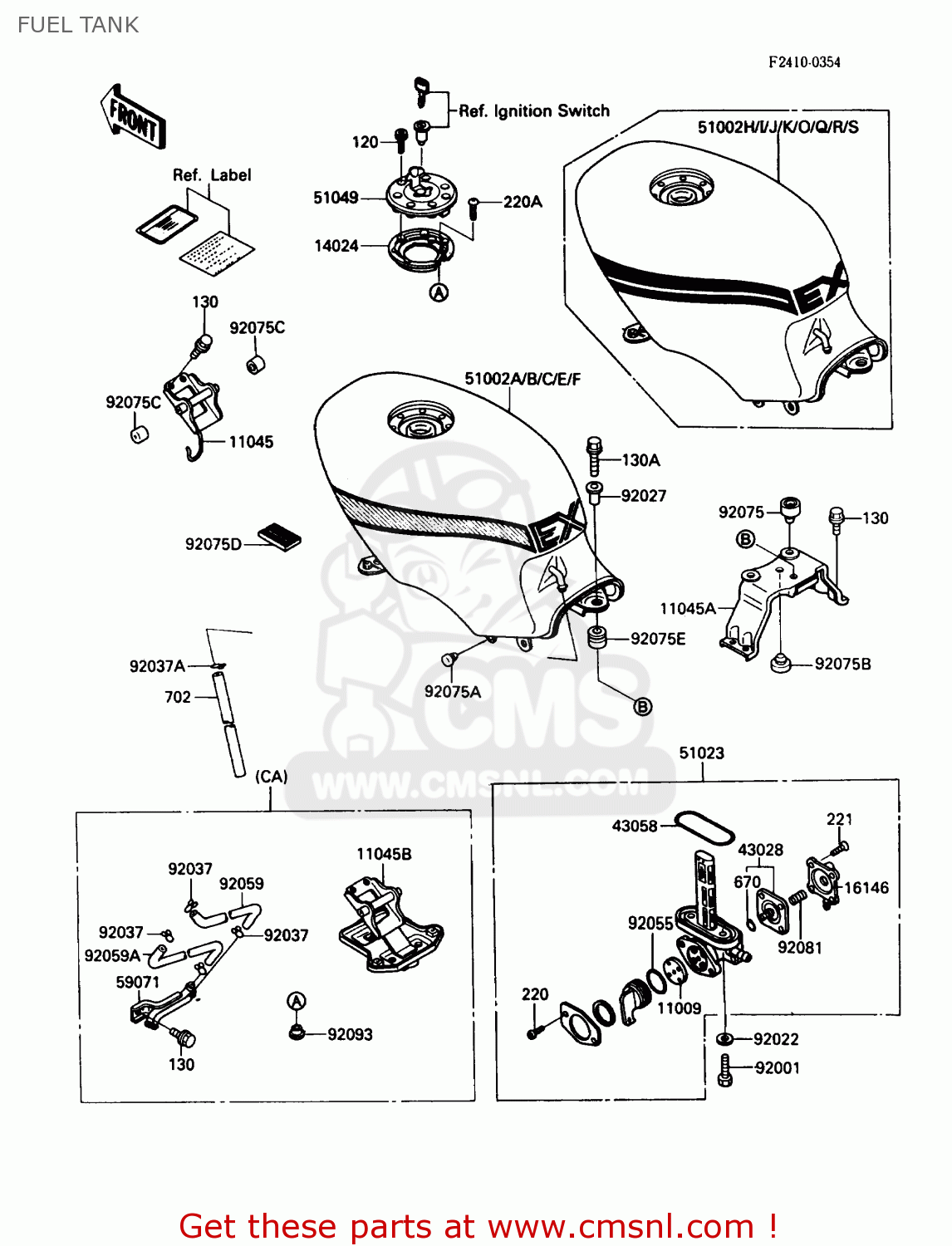

Fuel tank diagram EX500A1 1987 USA CALIFORNIA CANADA
FUEL TANK EX500A1 1987 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
€ 4.00
11045
110451362
ref: 11045
CNUS
BRACKET,FUEL TANK,FR
€ 28.50
11045A
110451363
ref: 11045A
BRACKET,FUEL TANK,RR
€ 39.00
11045B
110451389
ref: 11045B
CA
FUEL TANK BRACKET,FRONT
€ 36.00
14025
140251913
ref: 14025
COVER,TANK CAP
€ 13.50
16146
161461010
ref: 16146
COVER-ASSY,TAP DIAPHR
€ 17.00
43028
430281033
ref: 43028
DIAPHRAGM
€ 15.00
43028
430281033
ref: 43028
CNUS
DIAPHRAGM
€ 15.00
43058
51039003
ref: 43058
'O' RING
€ 4.00
51002A
510025293B1
ref: 51002A
CN
TANK-COMP-FUEL,F.RED
€ 0.00
51002B
510025294R1
ref: 51002B
CNUS
FUEL TANK,COMPLETE,PEARL ALPINE WHITE
€ 505.00
51002C
510025295R1
ref: 51002C
CA
FUEL TANK,COMPLETE,PEARL ALPINE WHITE
€ 502.00
51002E
510025297H8
ref: 51002E
US
FUEL TANK,COMPLETE,EBONY
€ 503.50
51002F
510025298H8
ref: 51002F
CA
FUEL TANK,COMPLETE,EBONY
€ 503.50
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
130
130B0612
ref: 130
CNUS
BOLT-FLANGED,6X12
€ 0.50
130
130B0612
ref: 130
CA
BOLT-FLANGED,6X12
€ 0.50
51023
510231142
ref: 51023
TAP-ASSY,FUEL
€ 95.50
51049
510491091
ref: 51049
CAP-TANK,FUEL
€ 88.00
59071
590711122
ref: 59071
CA
EVAPORATOR JOINT
€ 26.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
€ 4.50
92037
92037010
ref: 92037
CA
CLAMP-FUEL PIPE
€ 2.50
92037A
920371712
ref: 92037A
CLAMP
€ 3.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
€ 3.00
92059
920591767
ref: 92059
CA
EVAPORATOR TUBE
€ 5.50
92059A
920591768
ref: 92059A
CA
TUBE,EVAPO
€ 6.50
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
€ 3.00
92075A
92075021
ref: 92075A
DAMPER
€ 3.00
92075B
920751045
ref: 92075B
DAMPER,STAND STOPPER
€ 5.00
92075C
920751115
ref: 92075C
DAMPER,FUEL TANK FRON
€ 4.00
92075D
920751489
ref: 92075D
DAMPER,SIDE BAG BRACK
€ 6.00
92075E
920751736
ref: 92075E
DAMPER
€ 4.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
€ 2.50
92093
920931030
ref: 92093
CA
OIL SEAL,FUEL TANK CA
€ 5.00
130A
130B0830
ref: 130A
BOLT-FLANGED,8X30
€ 1.00
220
220B0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220C0508
ref: 220A
SCREW-PAN-CROS
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
670
670B1504
ref: 670
O RING,4MM
€ 2.50
702
702A07380
ref: 702
TUBE-RUBBER
€ 9.50
