REAR HUB
EX305B7 GPZ305 1989 FG / BELT DRIVE

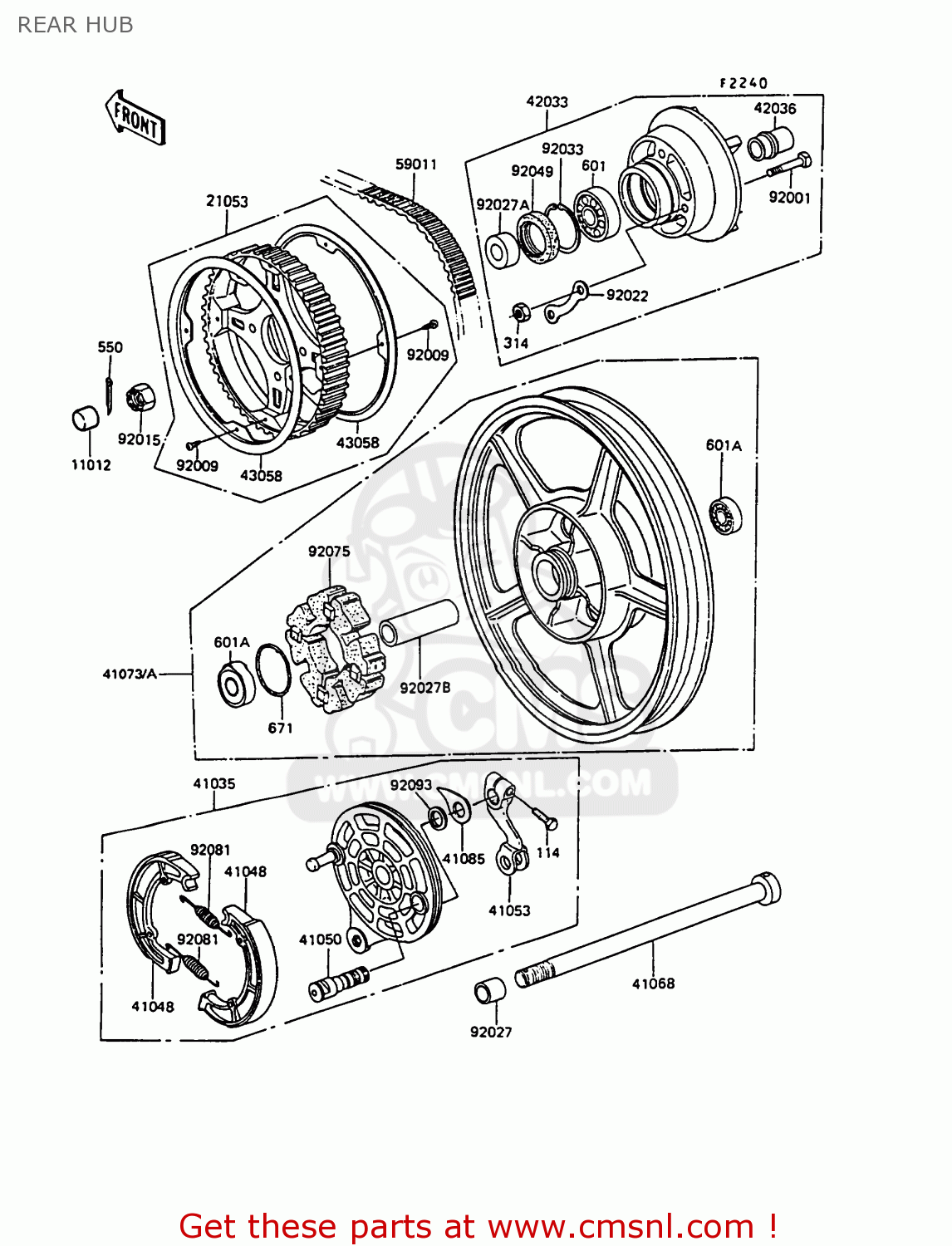

Rear hub diagram EX305B7 GPZ305 1989 FG / BELT DRIVE
REAR HUB EX305B7 GPZ305 1989 FG / BELT DRIVE
×
prices are in EUR
ref
part #
description
quantity
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
314
314B1000
ref: 314
NUT,10MM
€ 0.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
€ 1.00
601
601B6205G
ref: 601
BEARING BALL
€ 14.00
601A
601B6303ZZ
ref: 601A
BEARING-BALL,#6303ZZC
€ 32.50
671
671B2560
ref: 671
O RING,60MM
€ 1.50
11012
110121590
ref: 11012
CAP,AXLE NUT
€ 3.50
21053
210531010
ref: 21053
SPROCKET-ASSY,RR,50T
€ 245.50
41035
410351151
ref: 41035
PANEL-ASSY-BRAKE,RR,F
€ 279.50
41048
41048020
ref: 41048
SHOE,BRAKE (MCA)
€ 26.00
41050
410501001
ref: 41050
CAM-BRAKE
€ 24.00
41053
410531031
ref: 41053
LEVER-BRAKE CAM
€ 49.00
41068
410681122
ref: 41068
AXLE,RR
€ 45.00
41073
410731204B1
ref: 41073
WHEEL-ASSY,RR,F.RED
€ 629.50
41073A
410731204J9
ref: 41073A
WHEEL-ASSY,RR,M.GRAY
€ 694.50
41085
41085004
ref: 41085
INDICATOR,BRAKE SHOE
€ 10.00
42033
420331101
ref: 42033
COUPLING-ASSY,REAR HU
€ 161.00
42036
420361002
ref: 42036
SLEEVE,COUPLING
€ 27.50
43058
430581024
ref: 43058
RING,REAR HUB SPROCKE
€ 36.50
59011
590111006
ref: 59011
BELT,125T,125U-14M35
€ 293.50
92001
92003156
ref: 92001
BOLT,RR SPROCKET FIT
€ 6.50
92009
920091167
ref: 92009
SCREW,5X10
€ 4.50
92015
92015055
ref: 92015
NUT,16MM
€ 8.00
92022
92088005
ref: 92022
WASHER,SPROCKET LOCK
€ 4.00
92027
920271257
ref: 92027
COLLAR,17.2X30X24.5
€ 21.50
92027A
920271321
ref: 92027A
COLLAR,REAR AXLE,LH,L
€ 17.00
92027B
920271506
ref: 92027B
COLLAR,REAR WHEEL,L=6
€ 9.00
92033
920331043
ref: 92033
RING,SNAP,56.2M/M
€ 6.00
92049
92052006
ref: 92049
OIL SEAL WTC35527
€ 6.50
92075
920751008
ref: 92075
DAMPER,REAR HUB SHOCK
€ 53.50
92081
42020004
ref: 92081
SPRING-BRAKE SHOE
€ 5.50
92093
41051003
ref: 92093
DUST SHIELD-BRAKE CAM
€ 2.50
