Genuine EX Kawasaki Parts delivered quickly!


CRANKCASE BOLT PATTERN

EX305B7 GPZ305 1989 FG / BELT DRIVE

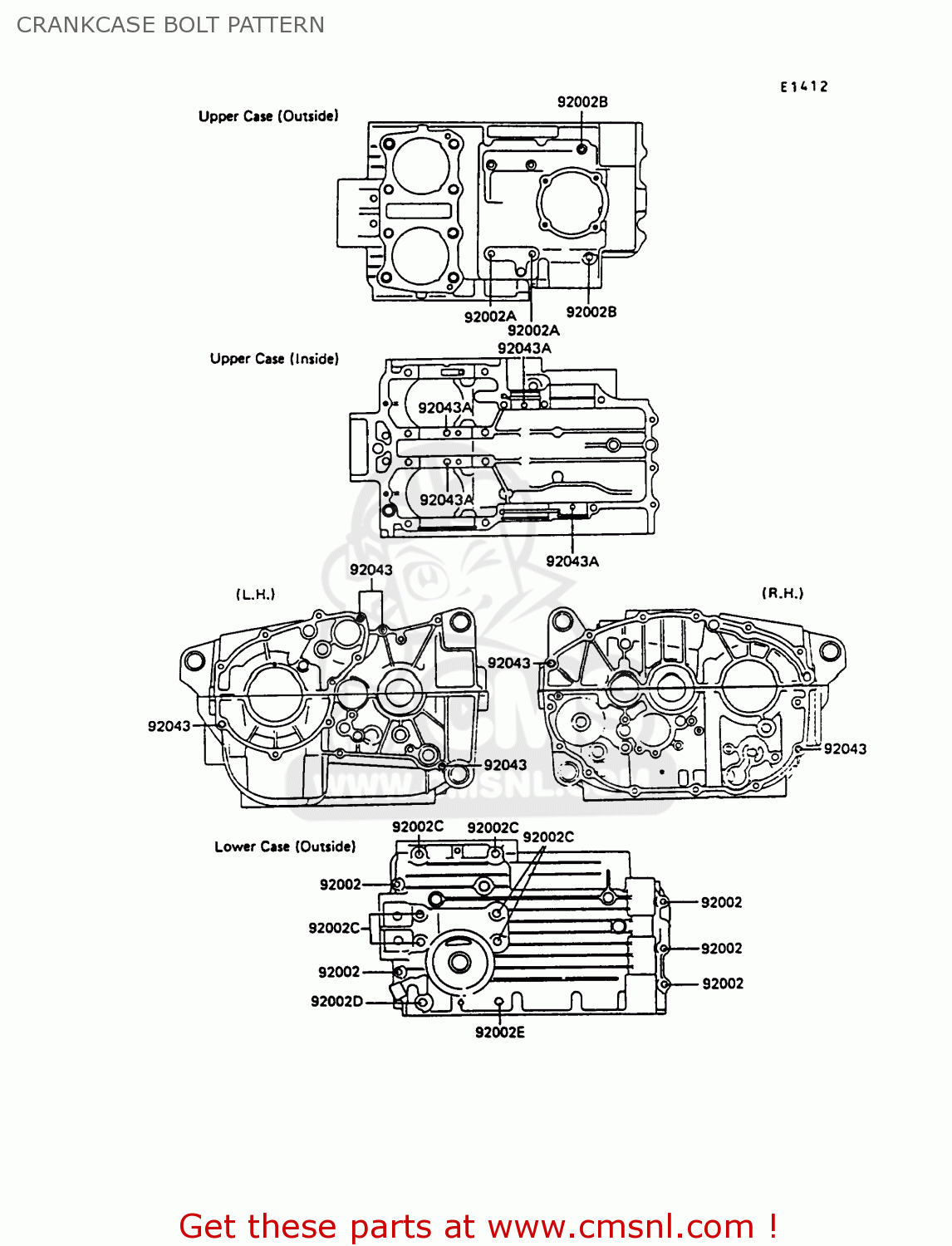

Crankcase bolt pattern diagram EX305B7 GPZ305 1989 FG / BELT DRIVE

CRANKCASE BOLT PATTERN EX305B7 GPZ305 1989 FG / BELT DRIVE
CRANKCASE BOLT PATTERN EX305B7 GPZ305 1989 FG / BELT DRIVE
CRANKCASE BOLT PATTERN EX305B7 GPZ305 1989 FG / BELT DRIVE
prices are in EUR
ref
part #
description
quantity
92002
920021051
ref: 92002
BOLT,6X35
€ 3.00
92002A
920021054
ref: 92002A
BOLT,6X55
920021054
€ 3.00
92002B
920021055
ref: 92002B
BOLT,6X90
920021055
€ 3.00
92002C
920021057
ref: 92002C
BOLT,8X90
920021057
€ 6.50
92002D
920021058
ref: 92002D
BOLT,8X115
€ 6.00
92002E
920021059
ref: 92002E
BOLT,8X140
920021059
€ 6.50
92043
92042007
ref: 92043
PIN-DOWEL
92042007
€ 4.00
92043A
92042016
ref: 92043A
PIN,DOWEL,6X16
92042016
€ 3.50
