ENGINE COVER(S)

EX250H10 ZZR250 1999 NETHERLANDS IT SP

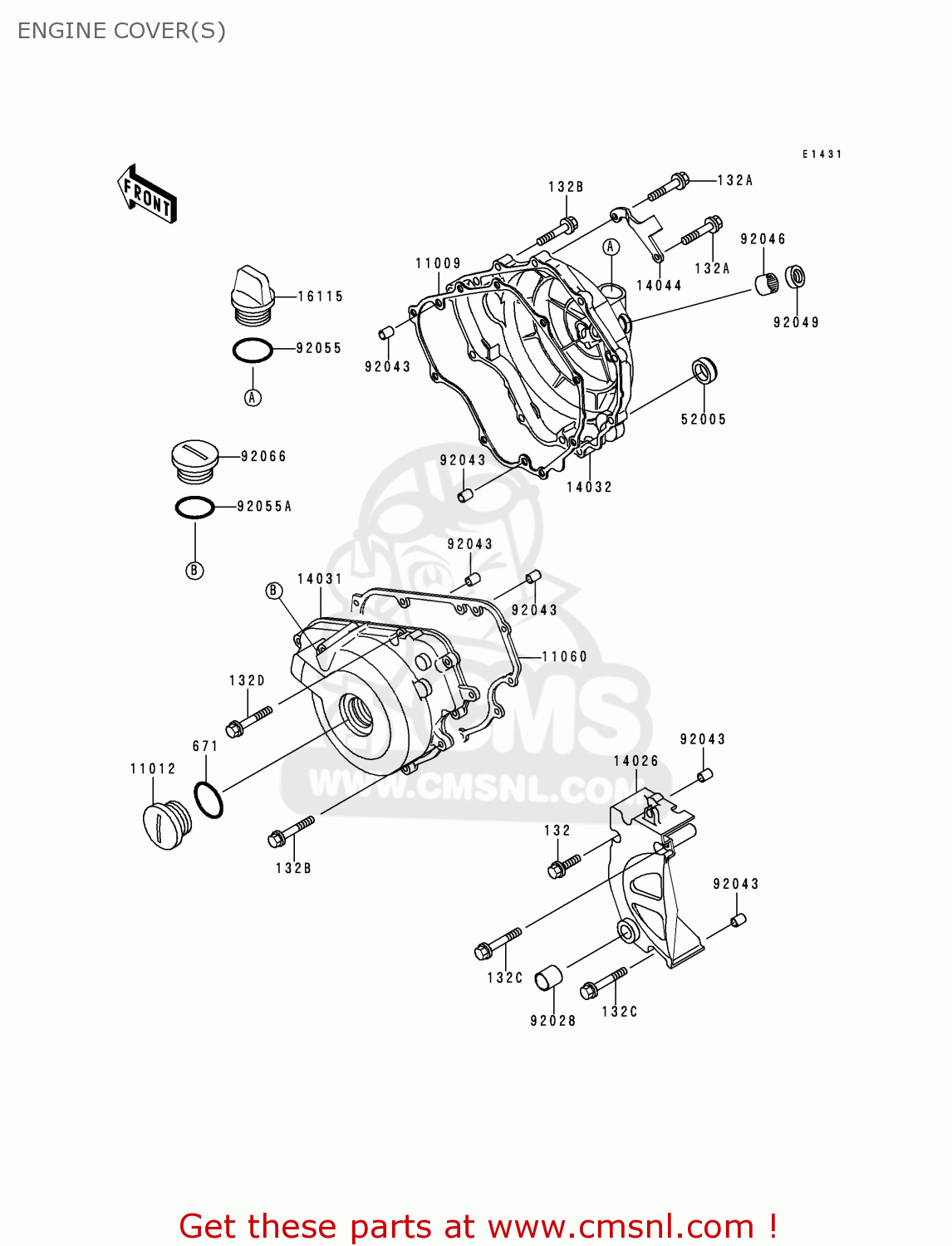

Engine cover(s) diagram EX250H10 ZZR250 1999 NETHERLANDS IT SP

ENGINE COVER(S) EX250H10 ZZR250 1999 NETHERLANDS IT SP
ENGINE COVER(S) EX250H10 ZZR250 1999 NETHERLANDS IT SP
ENGINE COVER(S) EX250H10 ZZR250 1999 NETHERLANDS IT SP
prices are in EUR
ref
part #
description
quantity
132
132E0620
ref: 132
BOLT-FLANGED-SMALL
132E0620
€ 2.00
132A
132E0625
ref: 132A
BOLT-FLANGED-SMALL
132E0625
€ 3.00
132B
132E0630
ref: 132B
BOLT-FLANGED-SMALL
132E0630
€ 3.00
132C
132E0650
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132E0675
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
671
671B2540
ref: 671
O RING,40MM
671B2540
€ 4.00
11009
110091872
ref: 11009
GASKET,CLUTCH COVER (NAS)
110091872
€ 18.00
11012
110121362
ref: 11012
CAP
110121362
€ 6.00
11060
110601920
ref: 11060
GASKET,GENERATOR COVE (NAS)
110601920
€ 11.00
14026
140261161
ref: 14026
COVER-CHAIN
140261161
€ 139.00
14031
140311248
ref: 14031
COVER-GENERATOR
140311248
€ 153.50
14032
140321466
ref: 14032
COVER-CLUTCH
140321466
€ 172.00
14044
140441069
ref: 14044
HOLDER-CABLE
140441069
€ 8.50
16115
161151009
ref: 16115
CAP-OIL FILLER
161151009
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
520051009
€ 12.00
92028
920281710
ref: 92028
BUSHING
920281710
€ 5.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
920461010
€ 17.00
92049
920491271
ref: 92049
SEAL, OIL
920491271
€ 7.00
92055
92055049
ref: 92055
'0'RING,31MM
92055049
€ 2.50
92055A
920551146
ref: 92055A
RING-O
920551146
€ 5.50
92066
920661163
ref: 92066
PLUG,COVER,LH
920661163
€ 10.00
