CYLINDER/PISTON(S)

EX250H10 ZZR250 1999 NETHERLANDS IT SP

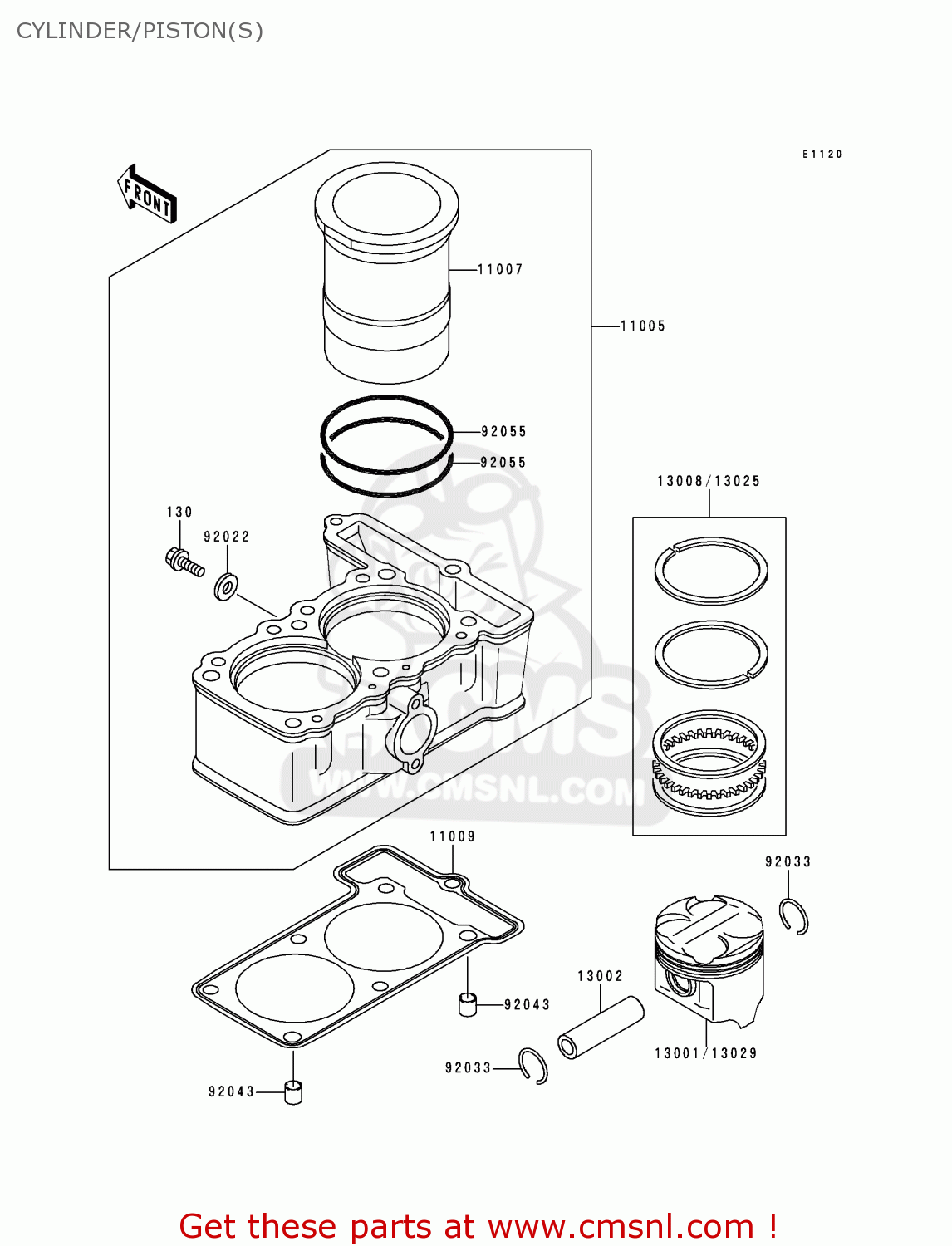

Cylinder/piston(s) diagram EX250H10 ZZR250 1999 NETHERLANDS IT SP

prices are in EUR

ref

part #

description

quantity

130

130C0610
ref: 130

BOLT-FLANGED,6X10,BLA

€ 1.50

11005

110051623
ref: 11005

CYLINDER-ENGINE

€ 793.50

11007

110071111
ref: 11007

LINER-CYLINDER

€ 114.50

11009

110091572
ref: 11009

GASKET,CYLINDER BASE (NAS)

€ 27.50

13001

130011325
ref: 13001

PISTON-ENGINE,STD

€ 59.50

13002

130021097
ref: 13002

PIN-PISTON

€ 16.50

13008

130081157
ref: 13008

RING-SET-PISTON,STD

€ 66.50

13025

130251120
ref: 13025

RING-SET-PISTON L,O/S

€ 48.00

13029

130291201
ref: 13029

PISTON-ENGINE L,O/S 0

€ 45.50

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92033

920331161
ref: 92033

RING-SNAP,PISTON PIN

€ 2.50

92043

920431264
ref: 92043

PIN,DOWEL,8.2X10X14

€ 0.50

92055

920551338
ref: 92055

RING-O,68.2X2.4

€ 3.50
