CHASSIS ELECTRICAL EQUIPMENT

EX250F8 NINJA 250R 1994 USA CALIFORNIA CANADA

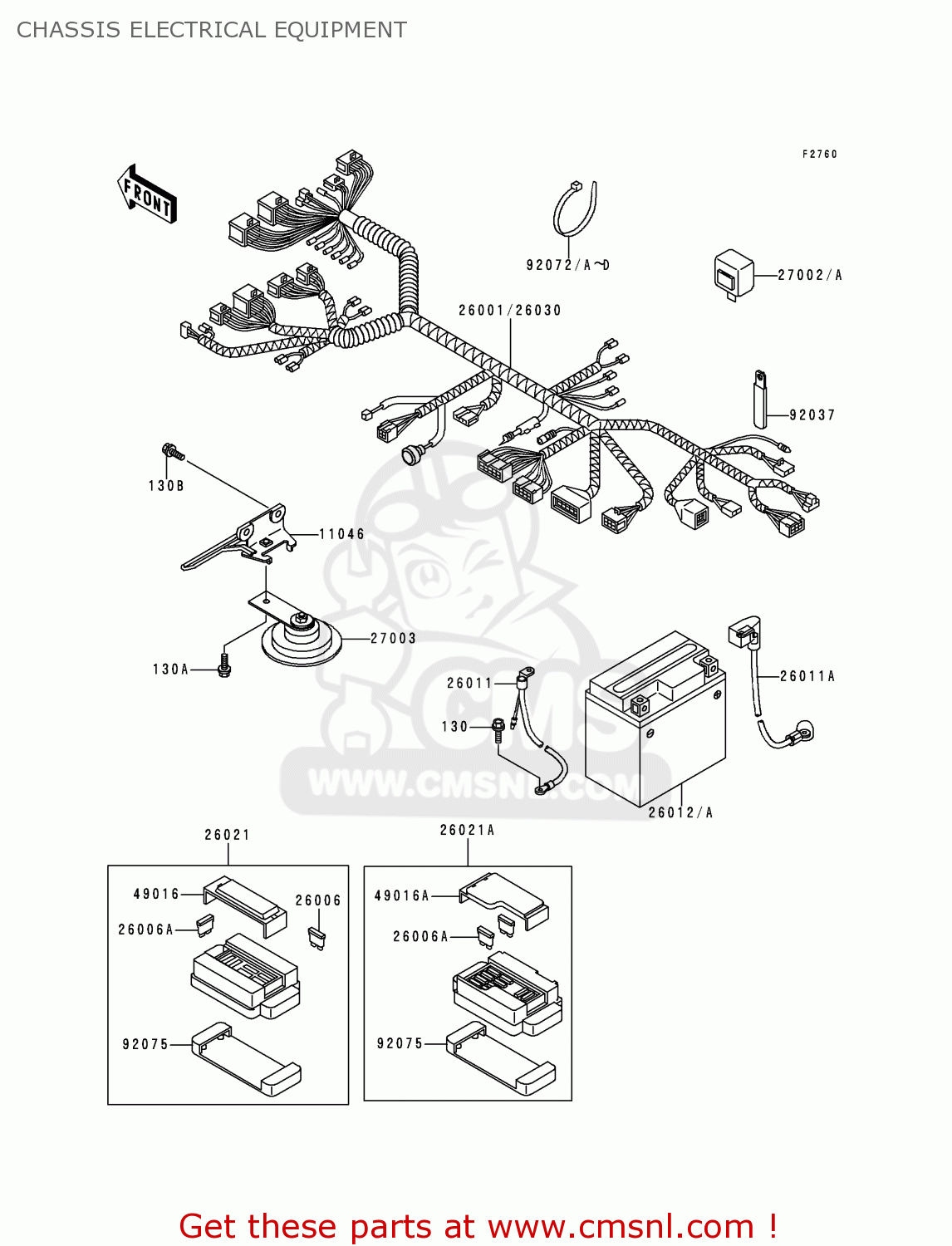

Chassis electrical equipment diagram EX250F8 NINJA 250R 1994 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT EX250F8 NINJA 250R 1994 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT EX250F8 NINJA 250R 1994 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT EX250F8 NINJA 250R 1994 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130C0612
ref: 130
BOLT-FLANGED,6X12
130C0612
€ 1.50
130A
130C0612
ref: 130A
BOLT-FLANGED,6X12
130C0612
€ 1.50
130B
130G0614
ref: 130B
BOLT,FLANGED,6X14
130G0614
€ 0.50
11046
110461233
ref: 11046
BRACKET,HORN&CABLE
110461233
€ 15.00
26001
260011929
ref: 26001
HARNESS,MAIN
€ 155.50
26006
260061067
ref: 26006
FUSE, 30A-G
€ 3.00
26006A
260061068
ref: 26006A
FUSE, 10A-R
€ 3.00
26011
260111189
ref: 26011
WIRE-LEAD,BATTERY GRO
€ 21.50
26011A
260111352
ref: 26011A
WIRE-LEAD,BATTERY(+)
€ 19.00
26012
260121205
ref: 26012
BATTERY,12V 8AH,FB9L-
€ 60.00
26021
260211077
ref: 26021
UNCTION BOX
260211077
€ 159.00
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
270021053
€ 33.50
27003
270031288
ref: 27003
HORN
270031288
€ 62.00
49016
490161125
ref: 49016
COVER-SEAL,FUSE
€ 6.00
92037
920371069
ref: 92037
CLAMP,L=60
920371069
€ 1.50
92072
92072030
ref: 92072
BAND,SHORT
92072030
€ 3.00
92072A
92072031
ref: 92072A
BAND,MIDDLE
92072031
€ 3.00
92072B
92072032
ref: 92072B
BAND,LONG
92072032
€ 3.00
92072C
920721195
ref: 92072C
BAND,L=185
920721195
€ 1.00
92075
920751688
ref: 92075
DAMPER,FUSE & RELAY B
920751688
€ 9.50
