ENGINE COVER(S)
EX250F8 GPX250R 1994 UNITED KINGDOM

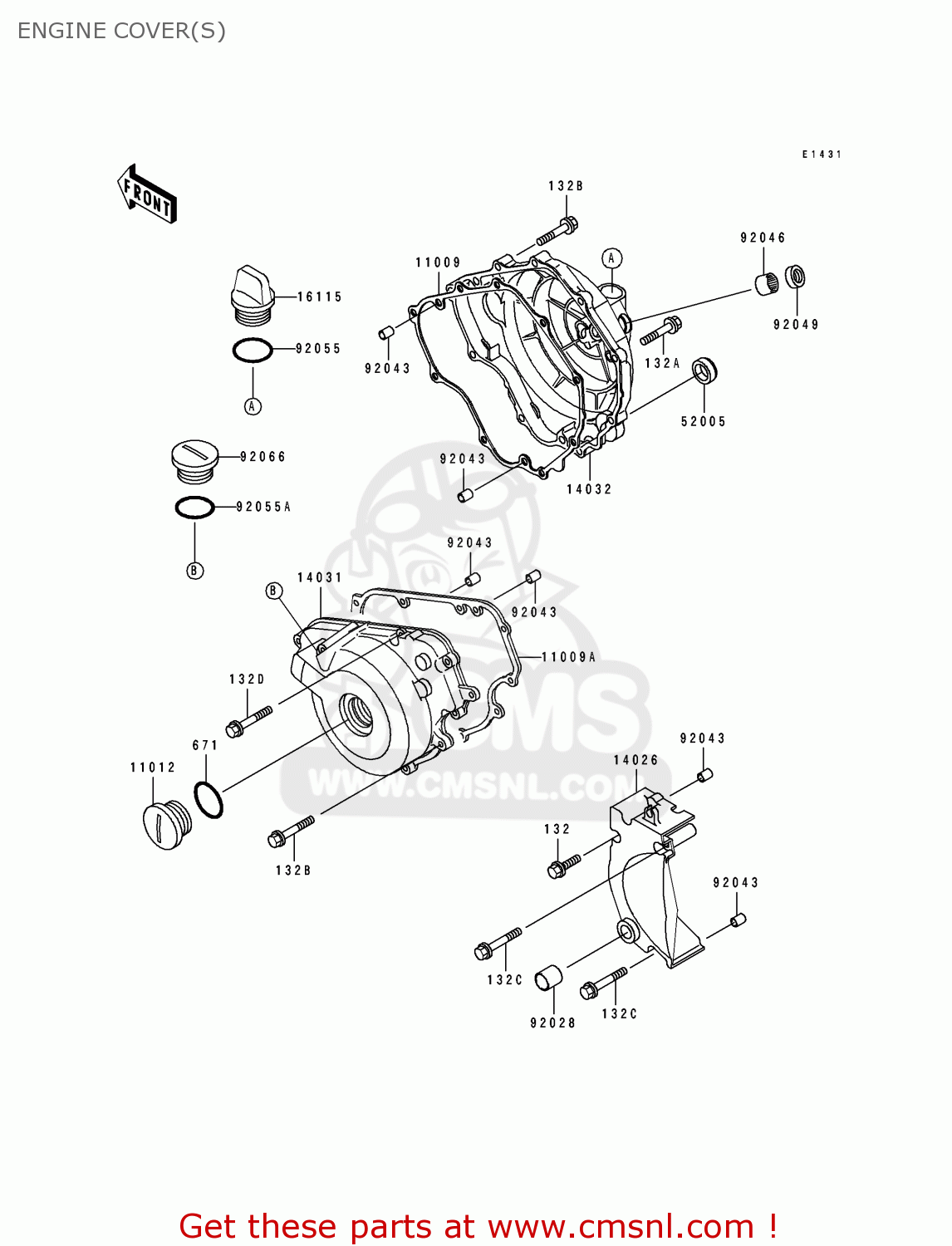

Engine cover(s) diagram EX250F8 GPX250R 1994 UNITED KINGDOM
ENGINE COVER(S) EX250F8 GPX250R 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
132
132J0620
ref: 132
BOLT-FLANGED-SMALL
€ 2.00
132A
132J0625
ref: 132A
BOLT-FLANGED-SMALL
€ 2.50
132B
132J0630
ref: 132B
BOLT-FLANGED-SMALL
€ 2.50
132C
132J0650
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132J0675
ref: 132D
BOLT-FLANGED-SMALL
€ 3.00
671
671B2540
ref: 671
O RING,40MM
€ 4.00
11009
110091872
ref: 11009
GASKET,CLUTCH COVER (NAS)
€ 18.00
11009A
110091873
ref: 11009A
GASKET,GENERATOR (NAS)
€ 11.00
11012
110121362
ref: 11012
CAP
€ 6.00
14026
140261122
ref: 14026
COVER-CHAIN
€ 139.00
14031
140311225
ref: 14031
COVER-GENERATOR
€ 177.00
14032
140321213
ref: 14032
COVER-CLUTCH
€ 156.50
16115
161151009
ref: 16115
CAP-OIL FILLER
€ 10.00
52005
520051009
ref: 52005
GAUGE,OIL LEVEL
€ 12.00
92028
920281710
ref: 92028
BUSHING
€ 5.50
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
€ 0.50
92046
920461010
ref: 92046
BEARING-NEEDLE,HK1210
€ 17.00
92049
920491271
ref: 92049
SEAL, OIL
€ 7.00
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551146
ref: 92055A
RING-O
€ 5.50
92066
920661163
ref: 92066
PLUG,COVER,LH
€ 10.00
