CARBURETOR
EX250F8 GPX250R 1994 UNITED KINGDOM

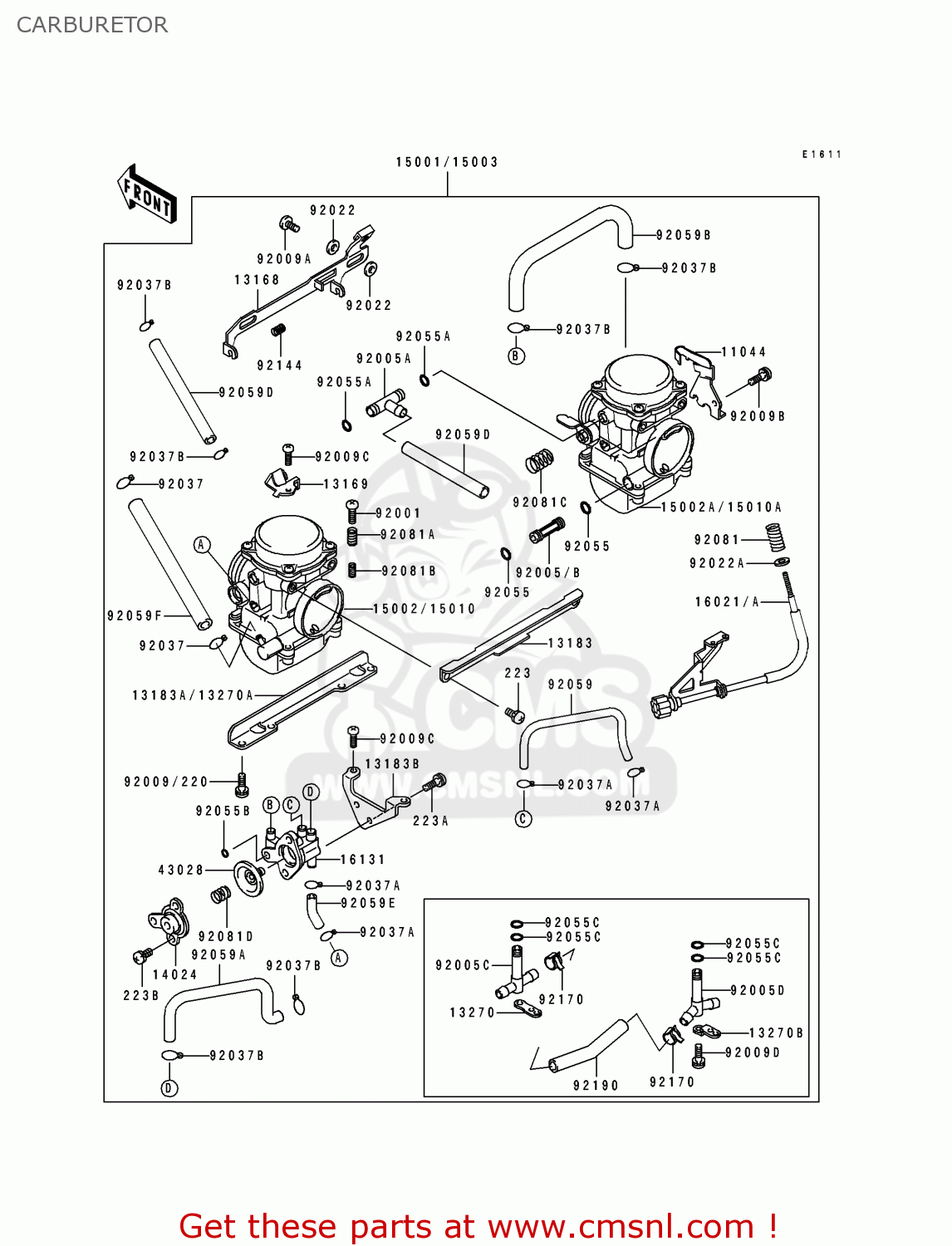

Carburetor diagram EX250F8 GPX250R 1994 UNITED KINGDOM
CARBURETOR EX250F8 GPX250R 1994 UNITED KINGDOM
×
prices are in EUR
ref
part #
description
quantity
11044
110441061
ref: 11044
BRACKET,THROTTLE CABL
€ 44.00
13168
131681330
ref: 13168
LEVER,STARTER
€ 59.50
13169
131691965
ref: 13169
PLATE,STARTER CABLE
€ 26.50
13183
131831029
ref: 13183
PLATE,CARBURETOR STAY
€ 49.00
13183B
131831031
ref: 13183B
PLATE,AIR CUT VALVE
€ 28.50
13270
132701063
ref: 13270
PLATE,JOINT STAY
€ 21.00
13270A
132701073
ref: 13270A
PLATE,CARBURETOR STAY
€ 21.50
13270B
132701286
ref: 13270B
PLATE,FITTING STAY
€ 46.00
14024
140241327
ref: 14024
COVER,AIR CUT VALVE
€ 43.00
15003
150031094
ref: 15003
CARBURETOR-ASSY
€ 1,266.50
15010
150101730
ref: 15010
CARBURETOR,LH
€ 832.50
15010A
150101731
ref: 15010A
CARBURETOR,RH
€ 832.50
16021A
160211132
ref: 16021A
SCREW-THROTTLE STOP
€ 89.00
16131
161311062
ref: 16131
BODY-VALVE,DIAPHRAGM
€ 51.50
43028
430281053
ref: 43028
DIAPHRAGM,5.9MM,AIR C
€ 62.50
92001
920011998
ref: 92001
BOLT,THROTTLE ADJUST
€ 11.50
92005A
920051125
ref: 92005A
FITTING,T-TYPE
€ 18.00
92005B
920051157
ref: 92005B
FITTING
€ 25.00
92005C
920051235
ref: 92005C
FITTING
€ 8.50
92005D
920051266
ref: 92005D
FITTING,WATER
€ 15.00
92009A
920091262
ref: 92009A
SCREW
€ 4.00
92009B
920091365
ref: 92009B
SCREW
€ 4.50
92009C
920091446
ref: 92009C
SCREW,4X18
€ 4.00
92009D
920091704
ref: 92009D
SCREW
€ 2.50
92022
920221199
ref: 92022
WASHER,6.1X11X0.8,POL
€ 3.00
92022A
920221480
ref: 92022A
WASHER,PLAIN,STOP SPR
€ 3.00
92037
920371075
ref: 92037
CLAMP,FUEL INLET TUBE
€ 2.50
92037A
920371142
ref: 92037A
CLAMP,TUBE
€ 2.50
92037B
920371477
ref: 92037B
CLAMP,TUBE
€ 3.00
92055
920551004
ref: 92055
O RING
€ 2.50
92055A
920551223
ref: 92055A
RING-O,FUEL FITTING
€ 3.50
92055B
920551245
ref: 92055B
RING-O
€ 3.50
92055C
920551427
ref: 92055C
RING-O,4.5X1.5
€ 3.00
220
220B0616
ref: 220
SCREW-PAN HEAD,6X16
€ 2.50
223
223C0510
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
223A
223D0408
ref: 223A
SCREW-PAN-WS-CROS
€ 1.00
223B
223D0410
ref: 223B
SCREW-PAN-WS-CROS
€ 2.50
92059
920591140
ref: 92059
TUBE,3.5X6.5X180
€ 17.50
92059A
920591201
ref: 92059A
TUBE,5X9X160
€ 14.50
92059B
920591377
ref: 92059B
TUBE,5X9X180
€ 16.50
92059C
920591465
ref: 92059C
TUBE,6.5X9.5X500
€ 20.50
92059D
920591634
ref: 92059D
TUBE,5X9X140
€ 12.00
92059E
920591722
ref: 92059E
TUBE
€ 15.50
92059F
920591860
ref: 92059F
TUBE,7.3X12.5X150
€ 14.00
92081
920811617
ref: 92081
SPRING,THROTTLE STOP
€ 3.50
92081A
920811620
ref: 92081A
SPRING,THROTTLE ADJUS
€ 3.00
92081B
920811621
ref: 92081B
SPRING,THROTTLE ADJUS
€ 3.00
92081C
920811622
ref: 92081C
SPRING,THROTTLE ADJUS
€ 6.50
92081D
920811719
ref: 92081D
SPRING,AIR CUT VALVE
€ 8.50
92144
921441048
ref: 92144
SPRING,STARTER LEVER
€ 7.00
92170
921701504
ref: 92170
CLAMP
€ 3.00
92190
921901539
ref: 92190
TUBE,WATER
€ 7.50
