Genuine EX Kawasaki Parts delivered quickly!


METER(S)

EX250F4 NINJA 250R 1990 USA CALIFORNIA CANADA

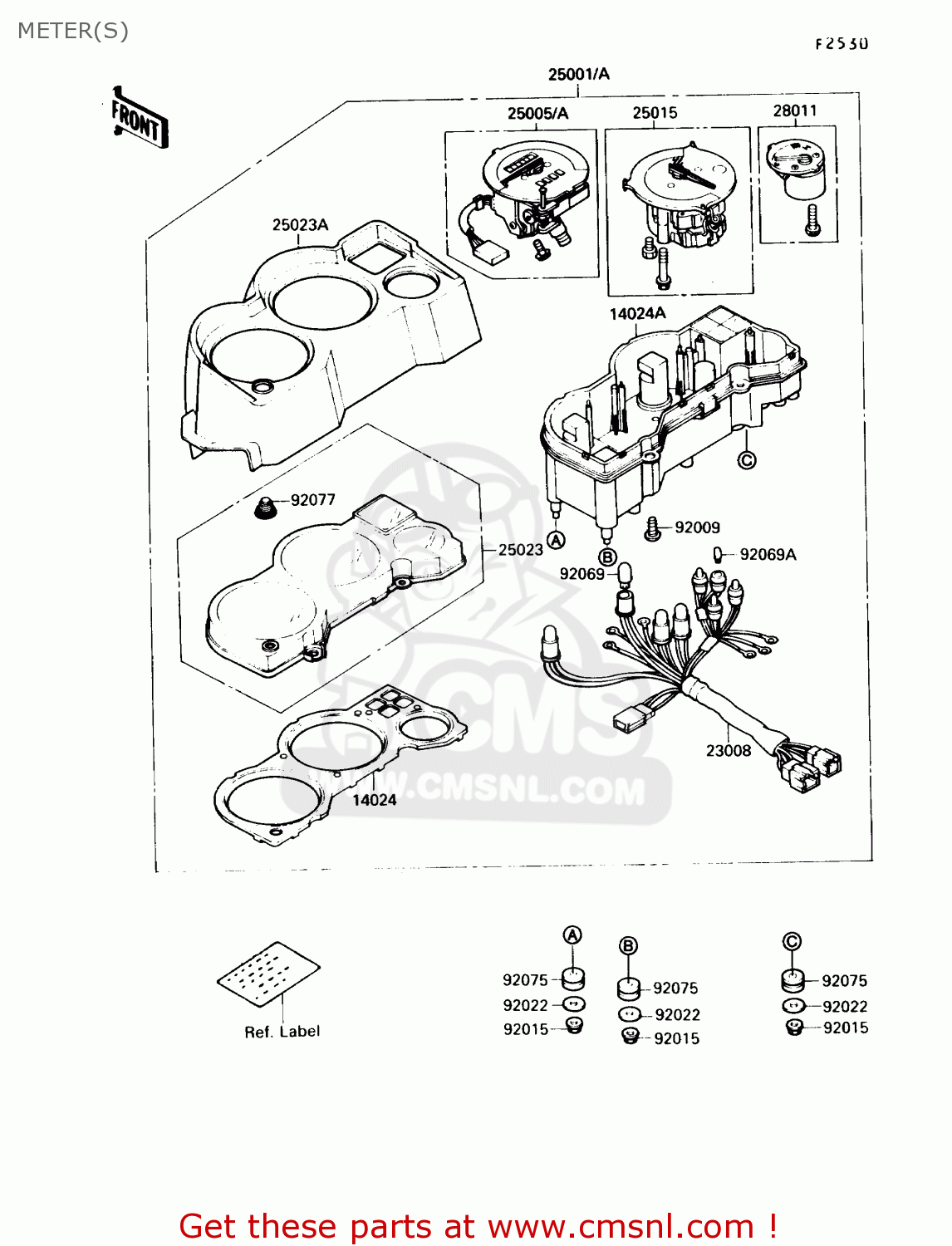

Meter(s) diagram EX250F4 NINJA 250R 1990 USA CALIFORNIA CANADA

METER(S) EX250F4 NINJA 250R 1990 USA CALIFORNIA CANADA
METER(S) EX250F4 NINJA 250R 1990 USA CALIFORNIA CANADA
METER(S) EX250F4 NINJA 250R 1990 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
14024
140241463
ref: 14024
COVER,METER
140241463
€ 21.00
14024A
140241664
ref: 14024A
COVER,METER HOUSING
€ 51.50
23008
230081367
ref: 23008
SOCKET-ASSY,METER
230081367
€ 47.50
25001
250011718
ref: 25001
CAUS
METER ASSEMBLY,MPH
€ 692.00
25001A
250011719
ref: 25001A
CN
METER-ASSY,KPH
€ 1,263.50
25005
250051378
ref: 25005
CAUS
SPEEDOMETER,MPH
€ 327.50
25005A
250051379
ref: 25005A
CN
SPEEDOMETER,KPH
250051379
€ 217.50
25015
250151275
ref: 25015
TACHOMETER,X1000R/MIN
250151275
€ 312.00
25023
250231158
ref: 25023
COVER-METER CASE,UPP
250231158
€ 67.00
25023A
250231159
ref: 25023A
COVER-METER CASE,VISO
250231159
€ 38.00
28011
280111100
ref: 28011
METER,TEMP
280111100
€ 108.00
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
920091163
€ 2.50
92015
920151259
ref: 92015
NUT,FLANGED,5MM
920151259
€ 2.50
92022
25009004
ref: 92022
WASHER,5.2X16X1.2T
25009004
€ 2.50
92069
920691007
ref: 92069
BULB,12V3.4W
920691007
€ 2.50
92069A
920691068
ref: 92069A
BULB,14V 3W
920691068
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
920751385
€ 3.00
92077
920771061
ref: 92077
BOOT,TRIP RESET KNOB
920771061
€ 6.00
