FRAME

EX250F4 NINJA 250R 1990 USA CALIFORNIA CANADA

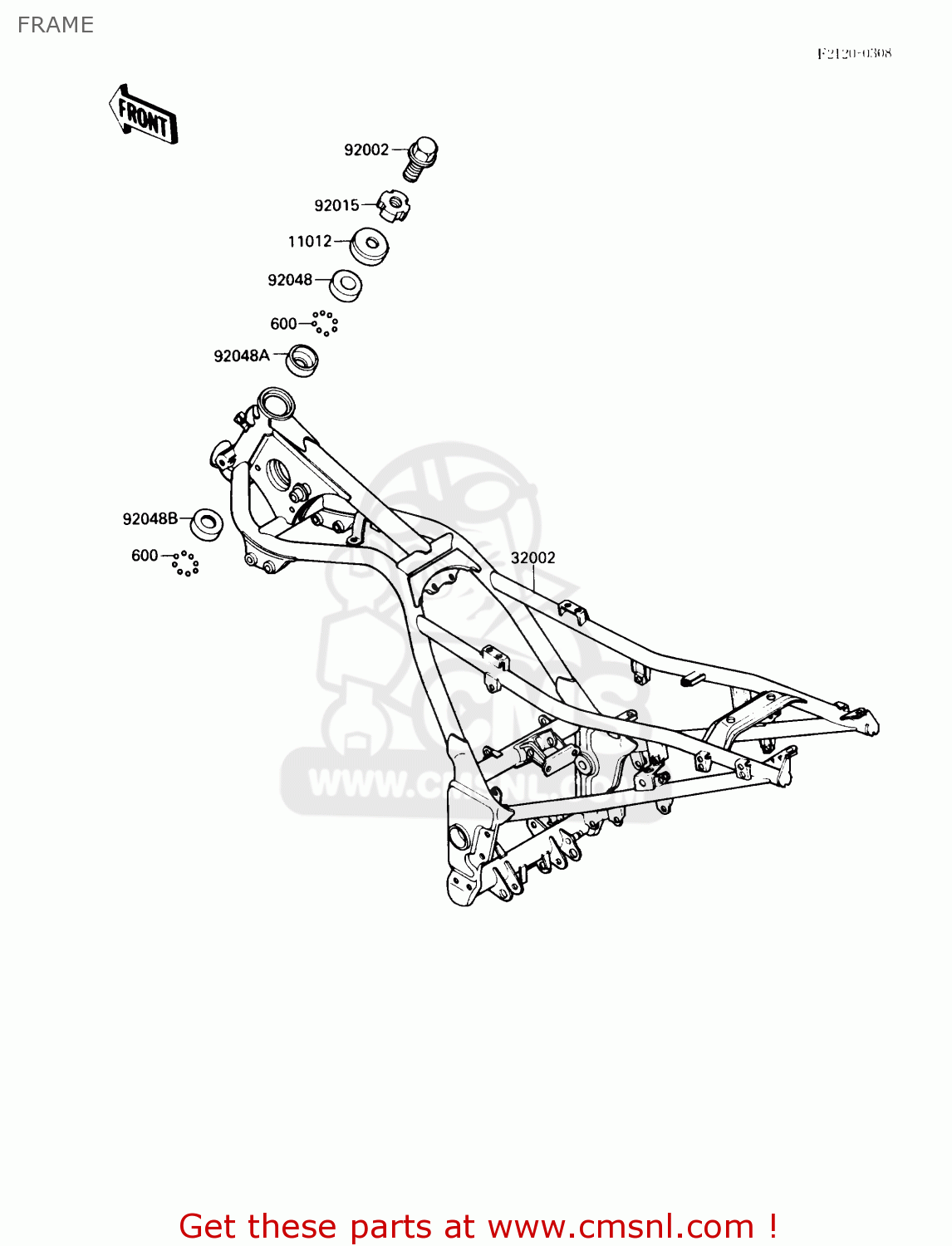

Frame diagram EX250F4 NINJA 250R 1990 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

11012

46098016
ref: 11012

CAP,STEERING STEM

€ 4.00

32002

320021944
ref: 32002

FRAME-COMP

€ 869.50

92002

920021950
ref: 92002

BOLT,FLANGED,16X22

€ 13.50

92015

92090007
ref: 92015

NUT-STEERING STEM LCK

€ 8.00

92048

92047011
ref: 92048

CONE-STRNG STM BRNG

€ 14.50

92048A

92048006
ref: 92048A

RACE-STRNG BEARIN-STE

€ 11.50

92048B

92048008
ref: 92048B

RACE-STRNG STM BRNG

€ 16.00
