SWINGARM

EX250F2 NINJA 250R 1988 USA CALIFORNIA CANADA

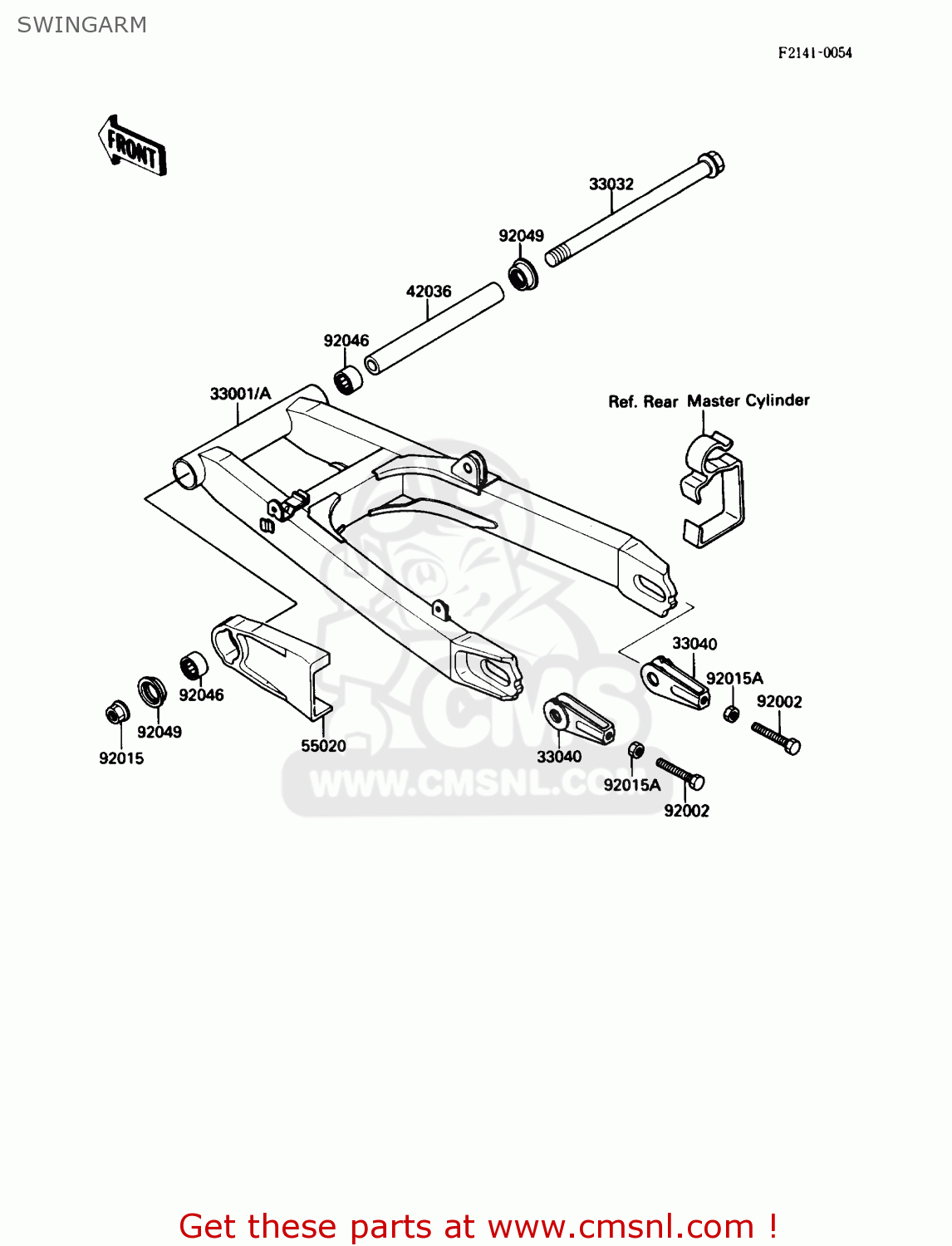

Swingarm diagram EX250F2 NINJA 250R 1988 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

33001A

330011301X3
ref: 33001A

ARM-COMP-SWING,SILVER

€ 272.50

33032

330321134
ref: 33032

SHAFT-SWING ARM

€ 40.50

33040

33040043
ref: 33040

ADJUSTER-CHAIN

€ 20.50

42036

420361218
ref: 42036

SLEEVE

€ 34.50

55020

550201218
ref: 55020

GUARD,CHAIN

€ 34.50

92002

920021825
ref: 92002

BOLT

€ 1.50

92015

920151041
ref: 92015

NUT,16M/M

€ 8.50

92015A

920151364
ref: 92015A

NUT,8MM

€ 2.50

92046

920461174
ref: 92046

BEARING-NEEDLE,TA2230

€ 37.50

92049

920491289
ref: 92049

SEAL-OIL

€ 6.00
