BRAKE PEDAL/TORQUE LINK

EX250F2 NINJA 250R 1988 USA CALIFORNIA CANADA

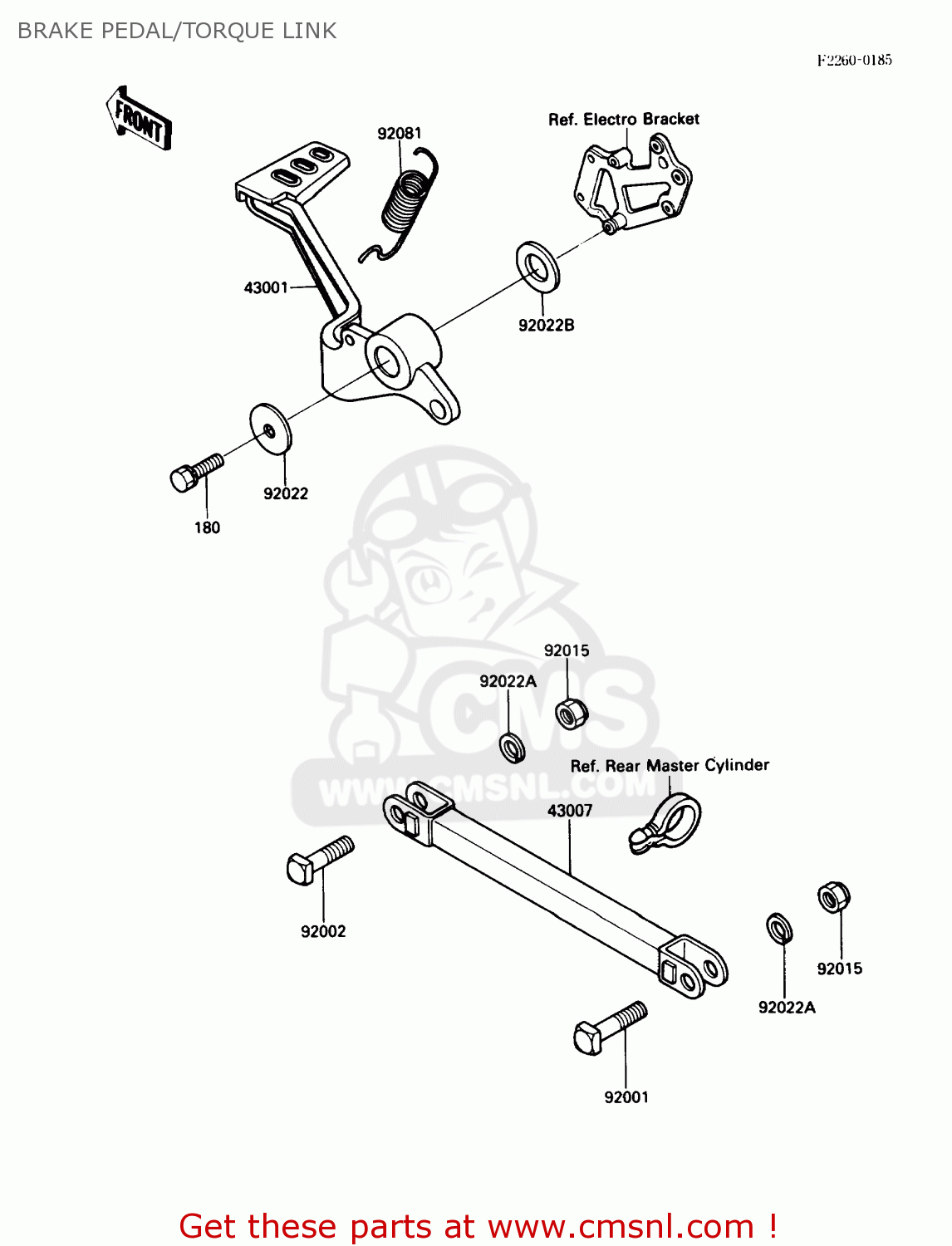

Brake pedal/torque link diagram EX250F2 NINJA 250R 1988 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

180

180D0616
ref: 180

BOLT-UPSET-WS

€ 0.50

43001

430011226
ref: 43001

LEVER-BRAKE,PEDAL

€ 88.50

43007

430071134
ref: 43007

ROD-TORQUE

€ 37.00

92001

920011307
ref: 92001

BOLT,SQUARE HEAD

€ 4.50

92002

920021708
ref: 92002

BOLT,10X32

€ 4.50

92015

92019021
ref: 92015

NUT,LOCK,10M/M

€ 2.00

92022

920221282
ref: 92022

WASHER,7X28X1.6

€ 3.00

92022A

920221540
ref: 92022A

WASHER,SPRING,10MM

€ 2.50

92022B

92022326
ref: 92022B

WASHER,15.3X24X1

€ 2.50

92081

920811833
ref: 92081

SPRING,BRAKE PEDAL

€ 7.00
