FUEL TANK
EX250F18 NINJA 250R 2004 USA CALIFORNIA

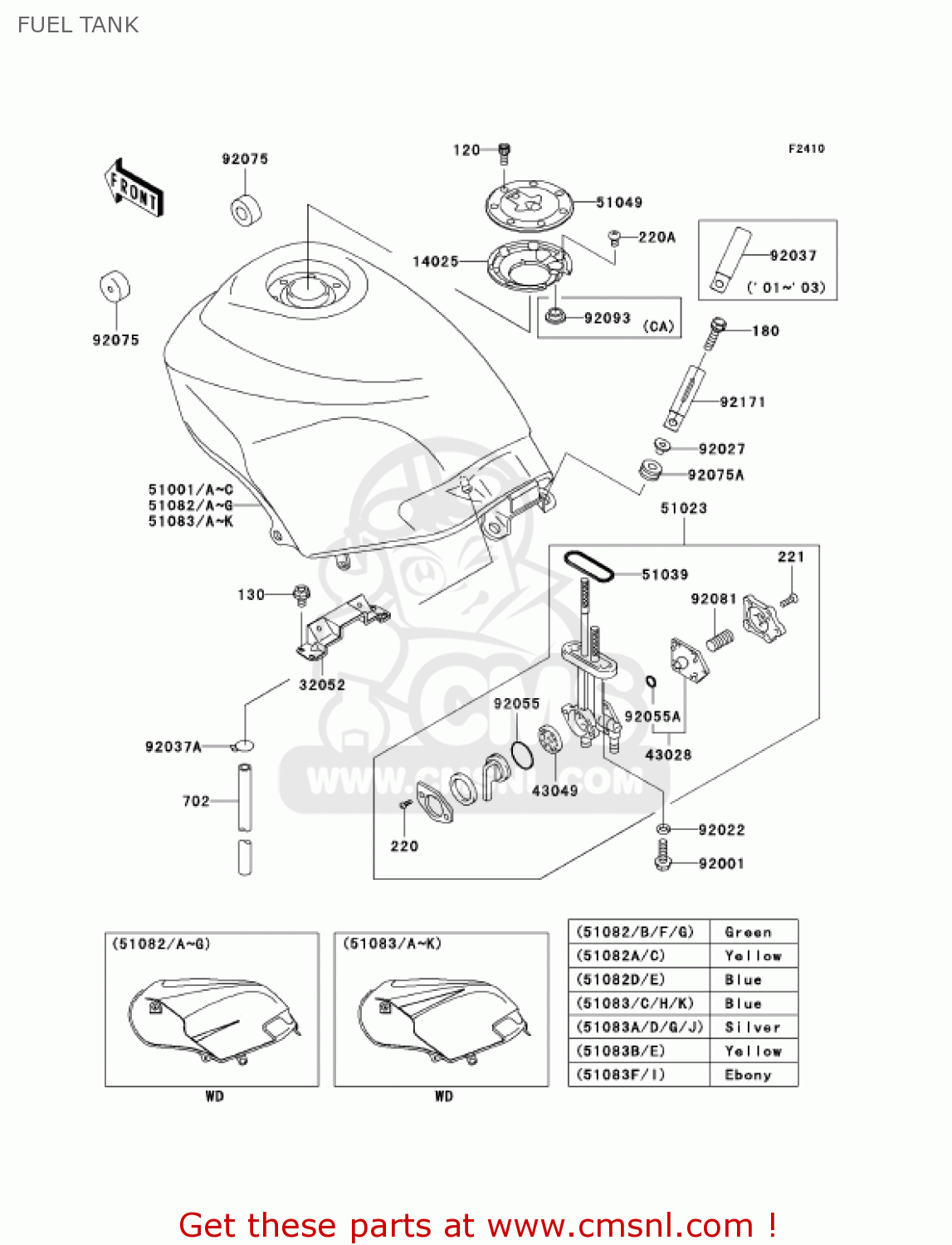

Fuel tank diagram EX250F18 NINJA 250R 2004 USA CALIFORNIA
FUEL TANK EX250F18 NINJA 250R 2004 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
14025
140251913
ref: 14025
COVER,TANK CAP
€ 13.50
32052
320521254
ref: 32052
BRACKET-TANK,RR
€ 19.50
43028
430281068
ref: 43028
DIAPHRAGM,TAP
€ 32.50
43049
430491103
ref: 43049
PACKING (NAS)
€ 4.00
51023
510231393
ref: 51023
TAP-ASSY,FUEL
€ 100.00
51039
51039003
ref: 51039
'O' RING
€ 4.00
51049
510491131
ref: 51049
/AP-TANK,FUEL
€ 106.50
51083
510835159KQ
ref: 51083
[US]
TANK-COMP-FUEL,M.N.BL
€ 613.00
51083A
510835160X1
ref: 51083A
[US]
TANK-COMP-FUEL,G.SILV
€ 613.00
51083B
510835161616
ref: 51083B
[US]
TANK-COMP-FUEL,P.C.YE
€ 613.00
51083C
510835162KQ
ref: 51083C
[CA]
TANK-COMP-FUEL,M.N.BL
€ 613.00
51083D
510835163X1
ref: 51083D
[CA]
TANK-COMP-FUEL,G.SILV
€ 613.00
51083E
510835164616
ref: 51083E
[CA]
TANK-COMP-FUEL,P.C.YE
€ 613.00
120
120S0512
ref: 120
BOLT-SOCKET
€ 1.00
130
130H0610
ref: 130
BOLT-FLANGED,6X10
€ 0.50
180
180D0625
ref: 180
BOLT-UPSET-WS,6X25
€ 2.50
220
220C0308
ref: 220
SCREW-PAN-CROS
€ 0.50
220A
220F0508
ref: 220A
SCREW-PAN-CROSS
€ 1.00
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
€ 2.50
702
702A071000
ref: 702
TUBE-RUBBER,7X10X1000
€ 9.50
92001
920011091
ref: 92001
BOLT,6X20,FUEL TAP
€ 2.50
92022
92022183
ref: 92022
WASHER,6.2X11X1.5
€ 2.50
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92037A
920371712
ref: 92037A
CLAMP
€ 3.00
92055
920551085
ref: 92055
'O' RING,FUEL TAP LEV
€ 3.00
92055A
920551664
ref: 92055A
RING-O
€ 3.00
92075
920751115
ref: 92075
DAMPER,FUEL TANK FRON
€ 4.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
€ 3.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
€ 2.50
92093
920931030
ref: 92093
[CA]
OIL SEAL,FUEL TANK CA
€ 5.00
92171
921711425
ref: 92171
CLAMP,WIRING HARNESS,
€ 1.50
