CRANKCASE BOLT PATTERN

EX250F18 NINJA 250R 2004 USA CALIFORNIA

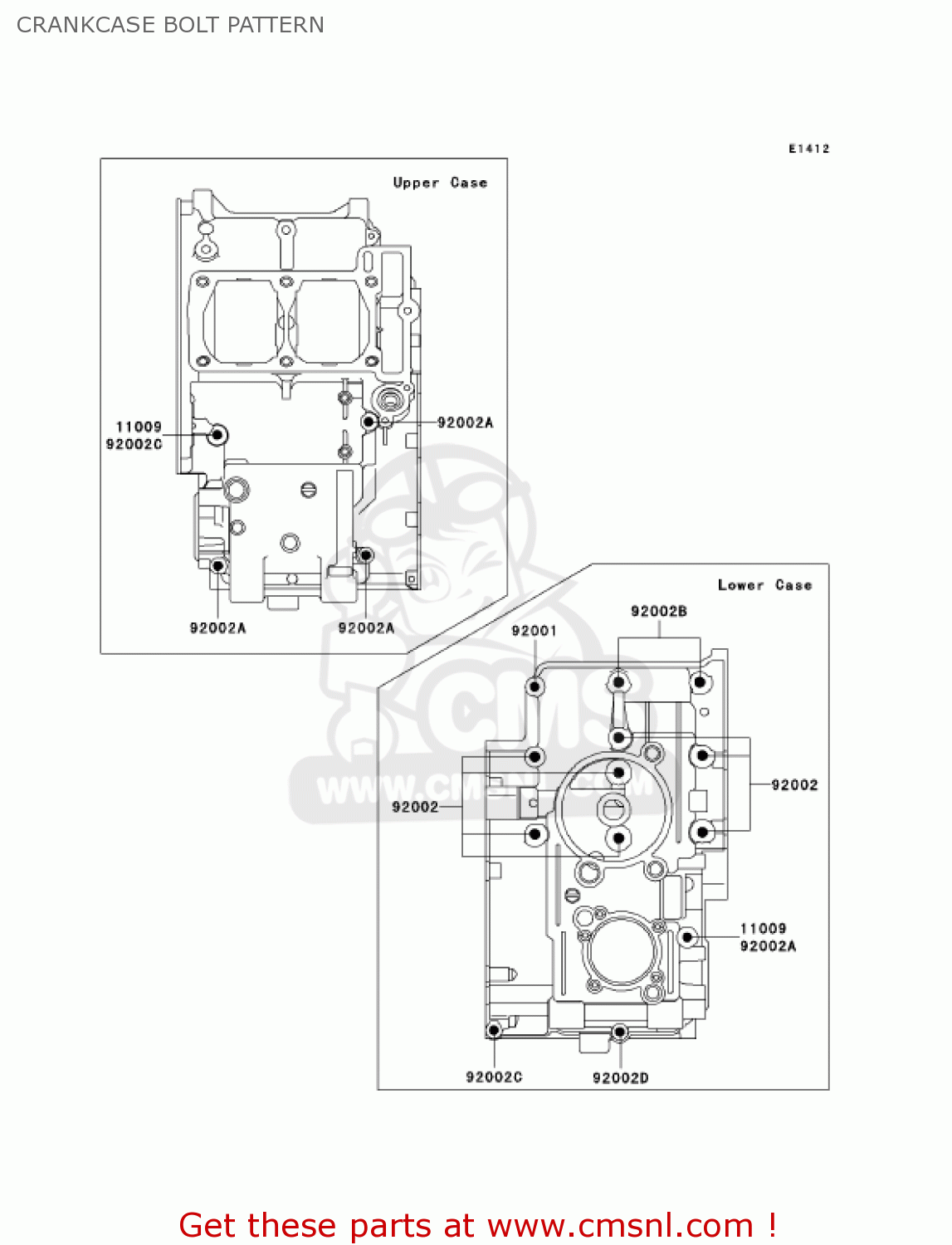

Crankcase bolt pattern diagram EX250F18 NINJA 250R 2004 USA CALIFORNIA

CRANKCASE BOLT PATTERN EX250F18 NINJA 250R 2004 USA CALIFORNIA

CRANKCASE BOLT PATTERN EX250F18 NINJA 250R 2004 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

11009

110091568
ref: 11009

GASKET,6.5X12X1.0 (NAS)

€ 2.50

92001

920011899
ref: 92001

BOLT,6X38

€ 2.50

92002

920021057
ref: 92002

BOLT,8X90

€ 6.50

92002A

920021306
ref: 92002A

BOLT

€ 3.50

92002B

920021329
ref: 92002B

BOLT,8X72

€ 6.50

92002C

920021584
ref: 92002C

BOLT,6X60

€ 3.50

92002D

920021687
ref: 92002D

BOLT,6X135

€ 5.50
