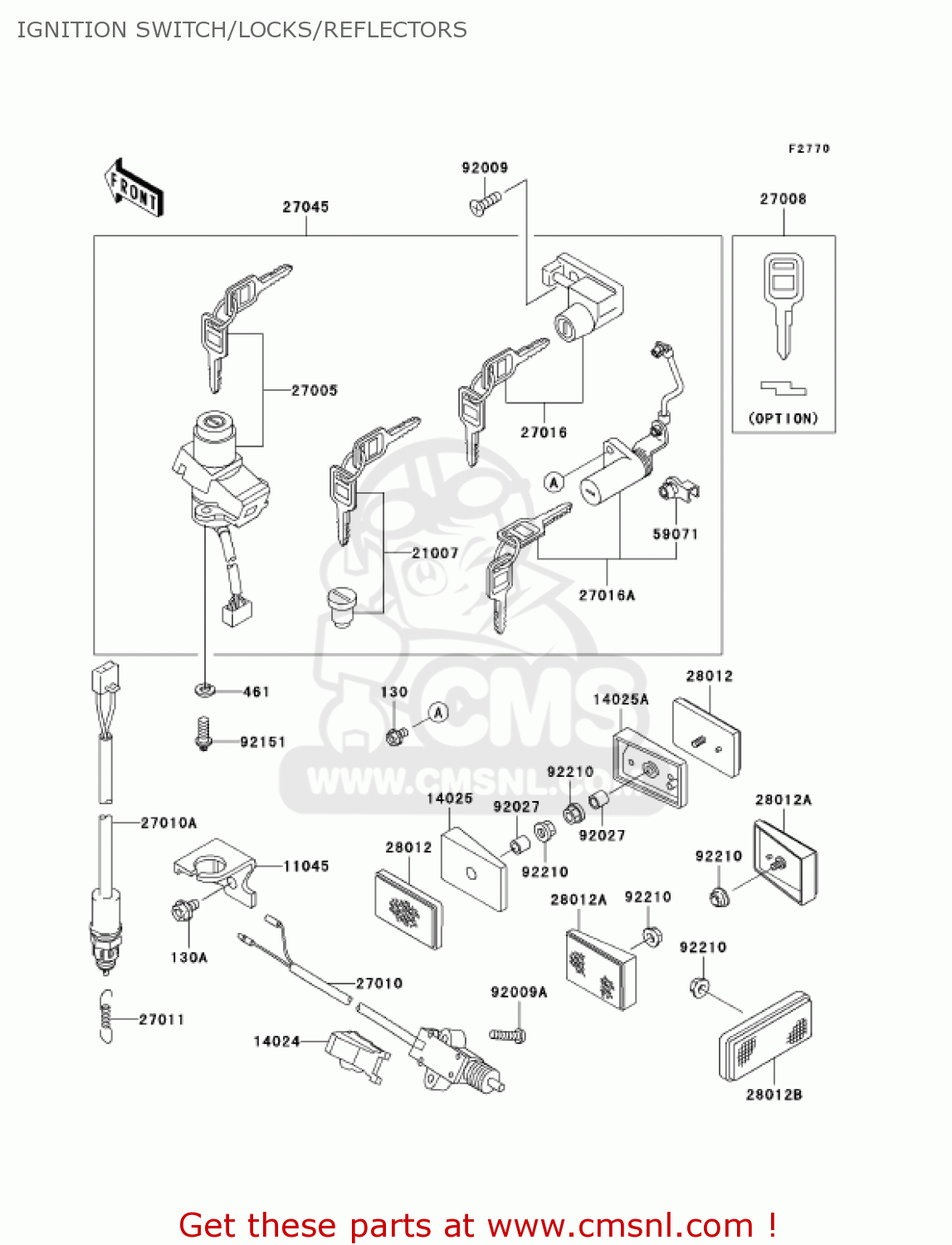

IGNITION SWITCH/LOCKS/REFLECTORS

ref

part #

description

quantity

130

130B0510
ref: 130

BOLT-FLANGED

€ 1.50

130A

130H0610
ref: 130A

BOLT-FLANGED,6X10

€ 0.50

461

461L0600
ref: 461

WASHER-SPRING

€ 0.50

11045

110451641
ref: 11045

BRACKET,REAR BRAKE SW

€ 5.50

14024

140241532
ref: 14024

COVER,SIDE STAND SWIT

€ 5.00

14025

140251886
ref: 14025

COVER,REFLECTOR,FR

€ 9.50

14025A

140251887
ref: 14025A

COVER,REFLECTOR,FR

€ 9.50

21007

210075037
ref: 21007

ROTOR,LOCK,TANK CAP

€ 65.50

27005

270055105
ref: 27005

SWITCH-ASSY-IGNITION

€ 237.50

27008

270081173
ref: 27008
(OPTION)

KEY-LOCK,BLANK

€ 13.00

27010

270101223
ref: 27010

SWITCH,SIDE STAND

€ 48.00

27010A

270101479
ref: 27010A

SWITCH,REAR BRAKE

€ 20.00

27011

27011004
ref: 27011

SPRING-BRAKE LAMP SW

€ 2.50

27016

270165211
ref: 27016

LOCK-ASSY,HELMET

€ 56.50

27016A

270165224
ref: 27016A

SEAT LOCK ASSEMBLY

€ 60.00

27045

270455003
ref: 27045

SWITCH-ASSY

€ 374.50

28012

280121052
ref: 28012

REFLECTOR-REFLEX,FR

€ 17.50

28012A

280121056
ref: 28012A

REFLECTOR,REAR,REFLEX

€ 13.50

28012B

280121077
ref: 28012B

REFLECTOR-REFLEX

€ 16.00

59071

590711103
ref: 59071

JOINT

€ 5.50

92009

920091401
ref: 92009

SCREW

€ 2.50

92009A

920091492
ref: 92009A

SCREW,5X22

€ 2.50

92027

920271789
ref: 92027

COLLAR,5X8X14.5

€ 3.00

92151

921511911
ref: 92151

BOLT,TORX,6X16

€ 1.50

92210

922100007
ref: 92210

NUT,FLANGED,5MM

€ 2.00
