CHASSIS ELECTRICAL EQUIPMENT

EX250F16 NINJA 250R 2002 USA CALIFORNIA

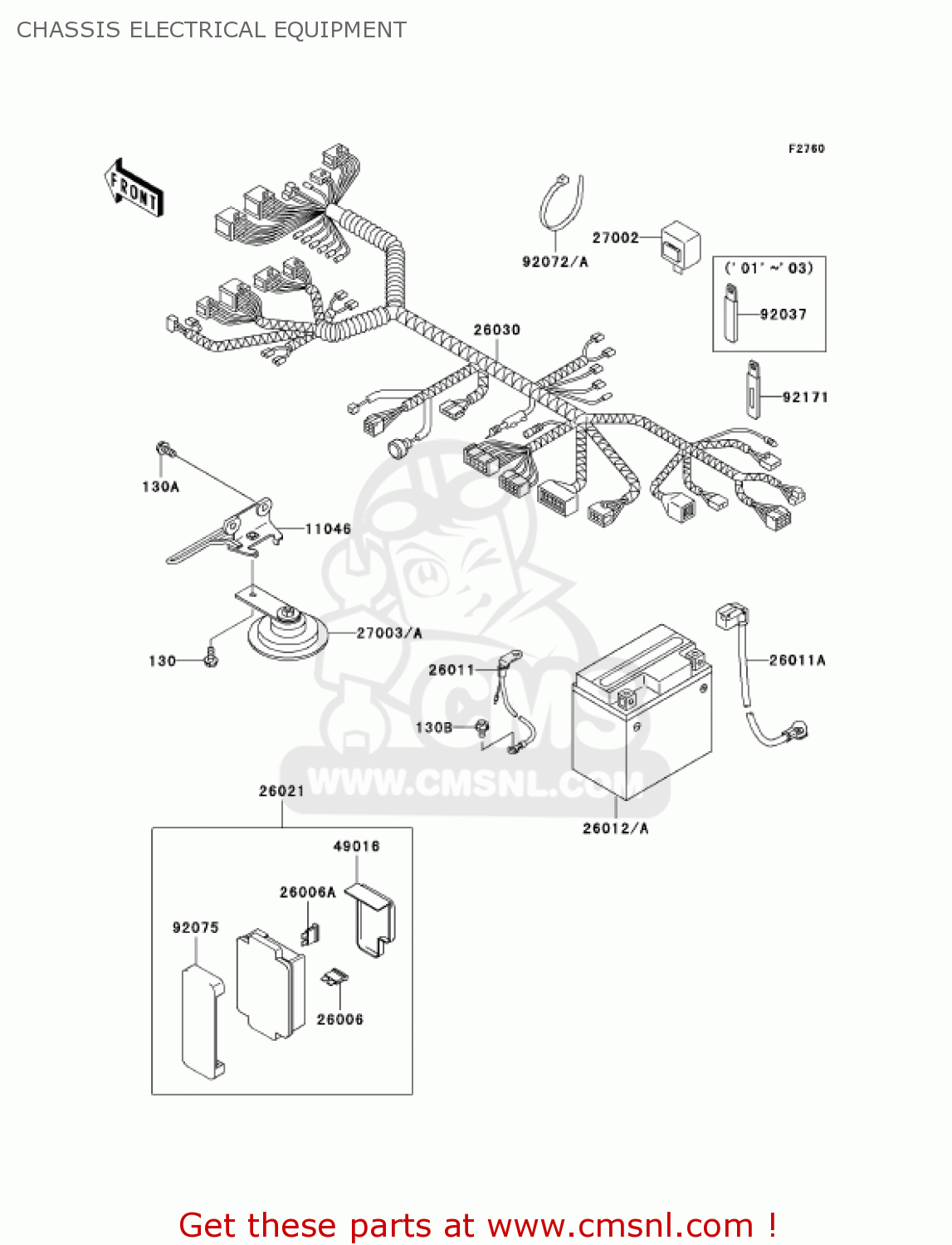

Chassis electrical equipment diagram EX250F16 NINJA 250R 2002 USA CALIFORNIA

prices are in EUR

ref

part #

description

quantity

130

130C0612
ref: 130

BOLT-FLANGED,6X12

€ 1.50

130A

130G0614
ref: 130A

BOLT,FLANGED,6X14

€ 0.50

130B

130V0610
ref: 130B

BOLT-FLANGED,6X10

€ 0.50

11046

110461233
ref: 11046

BRACKET,HORN&CABLE

€ 15.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260110035
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 21.50

26011A

260110042
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 19.00

26012A

260121321
ref: 26012A

BATTERY,YTX7L-BS,12V6

€ 50.50

26021

260211089
ref: 26021

JUNCTION BOX

€ 126.00

26030

260301351
ref: 26030

HARNESS,MAIN

€ 190.00

27002

270021101
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 49.50

27003A

270031288
ref: 27003A

HORN

€ 62.00

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721237
ref: 92072A

BAND,L=250

€ 2.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50
