TAILLIGHT(S)
EX250F15 NINJA 250R 2001 USA CALIFORNIA

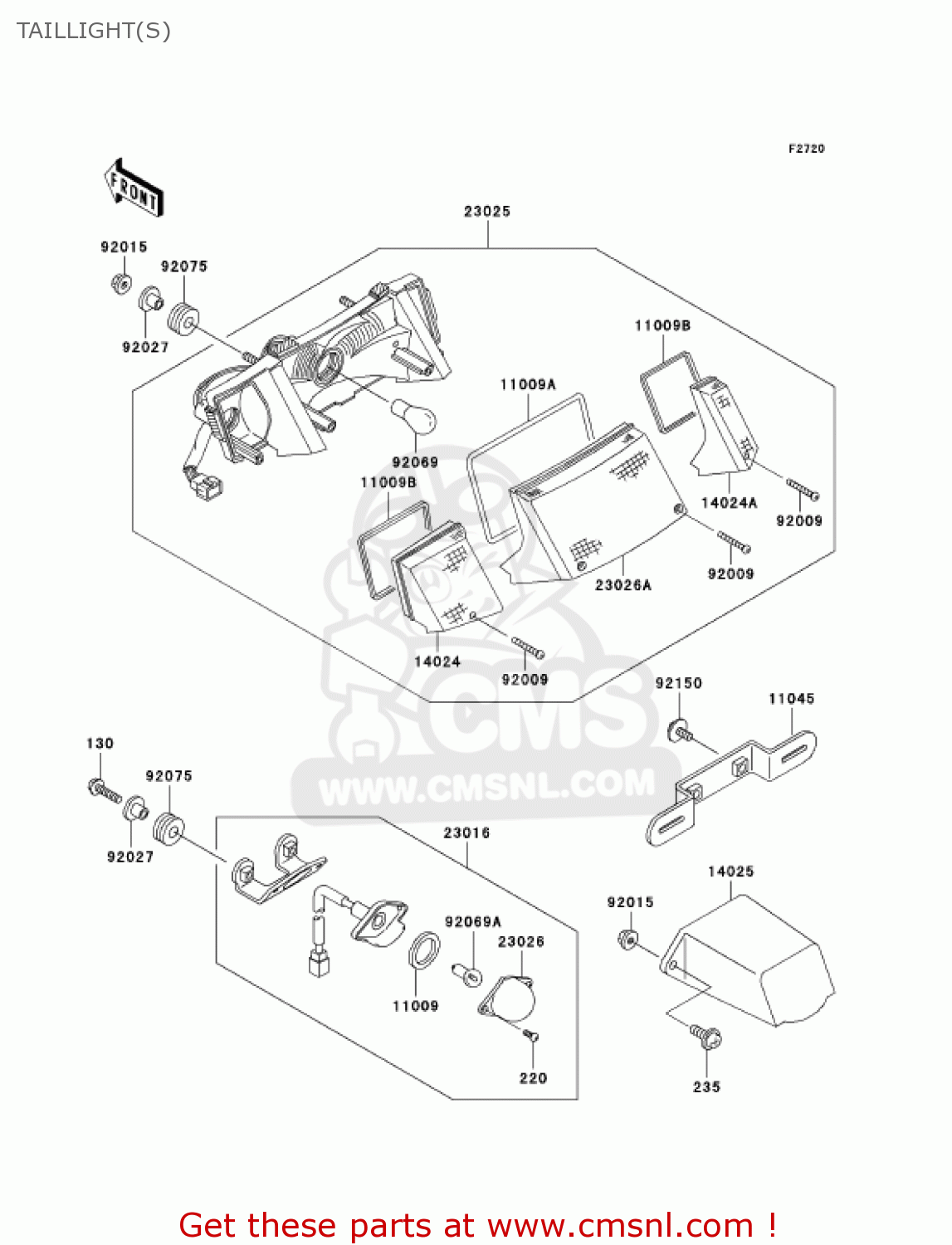

Taillight(s) diagram EX250F15 NINJA 250R 2001 USA CALIFORNIA
TAILLIGHT(S) EX250F15 NINJA 250R 2001 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
130
130H0625
ref: 130
BOLT-FLANGED,6X25
€ 0.50
220
220B0410
ref: 220
SCREW-PAN-CROS
€ 2.00
235
235C0620
ref: 235
SCREW-PAN-WP-CROS
€ 1.50
11009
110091372
ref: 11009
GASKET,LICENSE PLATE (NAS)
€ 3.00
11009A
110091663
ref: 11009A
GASKET,TAIL LAMP LENS (NAS)
€ 6.00
11009B
110091664
ref: 11009B
SIGNAL LAMP LENS GASKET
€ 3.00
11045
110451387
ref: 11045
BRACKET,LICENSE
€ 11.00
14024
140241662
ref: 14024
COVER,TAIL LAMP,LH
€ 11.00
14024A
140241663
ref: 14024A
COVER,TAIL LAMP,RH
€ 11.00
14025
140251821
ref: 14025
COVER,LICENSE PLATE L
€ 13.50
23016
230161054
ref: 23016
LAMP-ASSY,LICENSE PLA
€ 54.50
23025
230251311
ref: 23025
LAMP-TAIL
€ 213.50
23026
230261054
ref: 23026
LENS,LICENSE PLATE LA
€ 7.00
23026A
230261101
ref: 23026A
LENS,TAIL LAMP
€ 43.00
92009
920091063
ref: 92009
SCREW,4X16
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92027
92027251
ref: 92027
COLLAR,L=13.1
€ 1.00
92069
92069063
ref: 92069
BULB 12V 21/5W
€ 4.50
92069A
920691055
ref: 92069A
BULB,12V 5W
€ 4.00
92075
920751690
ref: 92075
DAMPER,10X24X12
€ 3.00
92150
921501909
ref: 92150
BOLT
€ 3.00
