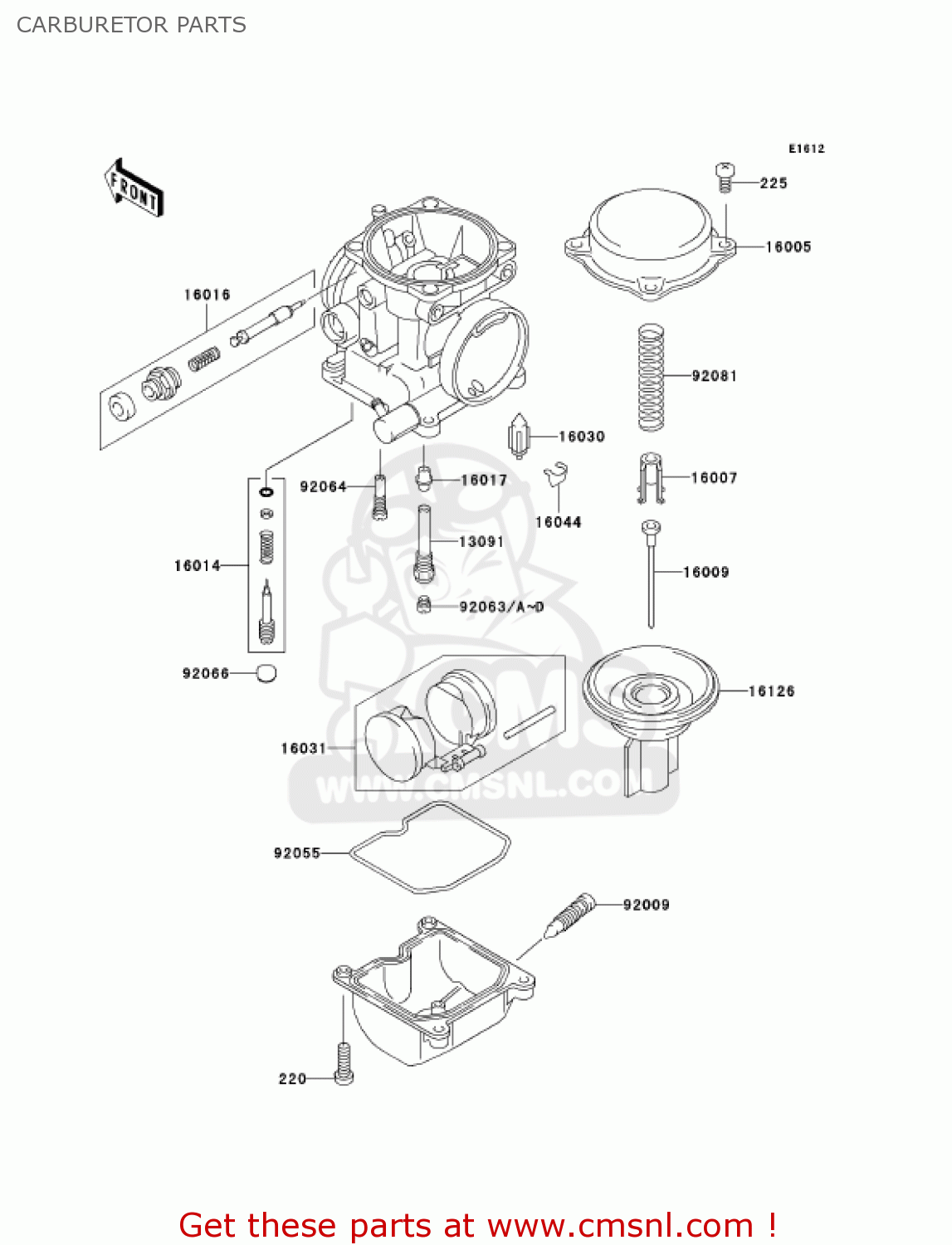

CARBURETOR PARTS

ref

part #

description

quantity

220

220D0414
ref: 220

SCREW-PAN-CROS

€ 2.00

225

225C0418
ref: 225

SCREW-PAN-WSP-CROS

€ 2.50

13091

130911425
ref: 13091

HOLDER,NEEDLE JET

€ 19.50

16005

160051056
ref: 16005

TOP-CHAMBER,MIXING

€ 48.50

16007

160071120
ref: 16007

SEAT-SPRING

€ 16.50

16009

160091461
ref: 16009

NEEDLE-JET,N16I

€ 26.00

16014

160141081
ref: 16014

SCREW-PILOT AIR

€ 15.50

16016

160161090
ref: 16016

PLUNGER,STARTER

€ 46.50

16017

160171326
ref: 16017

JET,NEEDLE

€ 24.50

16030

160301007
ref: 16030

FLOAT VALVE ASSY

€ 37.00

16031

160311077
ref: 16031

FLOAT

€ 39.00

16044

16044007
ref: 16044

CLIP, FLOAT VALVE

€ 4.00

16126

161261198
ref: 16126

VALVE,VACUUM

€ 176.00

92009

920091551
ref: 92009

SCREW,DRAIN

€ 6.50

92055

920551222
ref: 92055

RING-O,FLOAT CHAMBER

€ 12.50

92063

920631008
ref: 92063
(OPTION)

JET-MAIN,#100

€ 9.00

92063A

920631009
ref: 92063A

JET-MAIN,#105

€ 10.00

92063B

920631114
ref: 92063B
(OPTION)

JET-MAIN,#110

€ 9.50

92063C

920631115
ref: 92063C
(OPTION)

JET-MAIN,#102

€ 10.00

92063D

920631116
ref: 92063D
(OPTION)

JET-MAIN,#108

€ 9.50

92064

920641050
ref: 92064

JET-PILOT,#38

€ 12.50

92066

920661051
ref: 92066

PLUG,PILOT AIR SCREW,

€ 3.00

92081

920811925
ref: 92081

SPRING,VACUUM VALVE

€ 16.00

all assemblies
