WATER PUMP

ER500A3 ER5 1999 UNITED KINGDOM FR NL AR GR IT NR SD SP ST

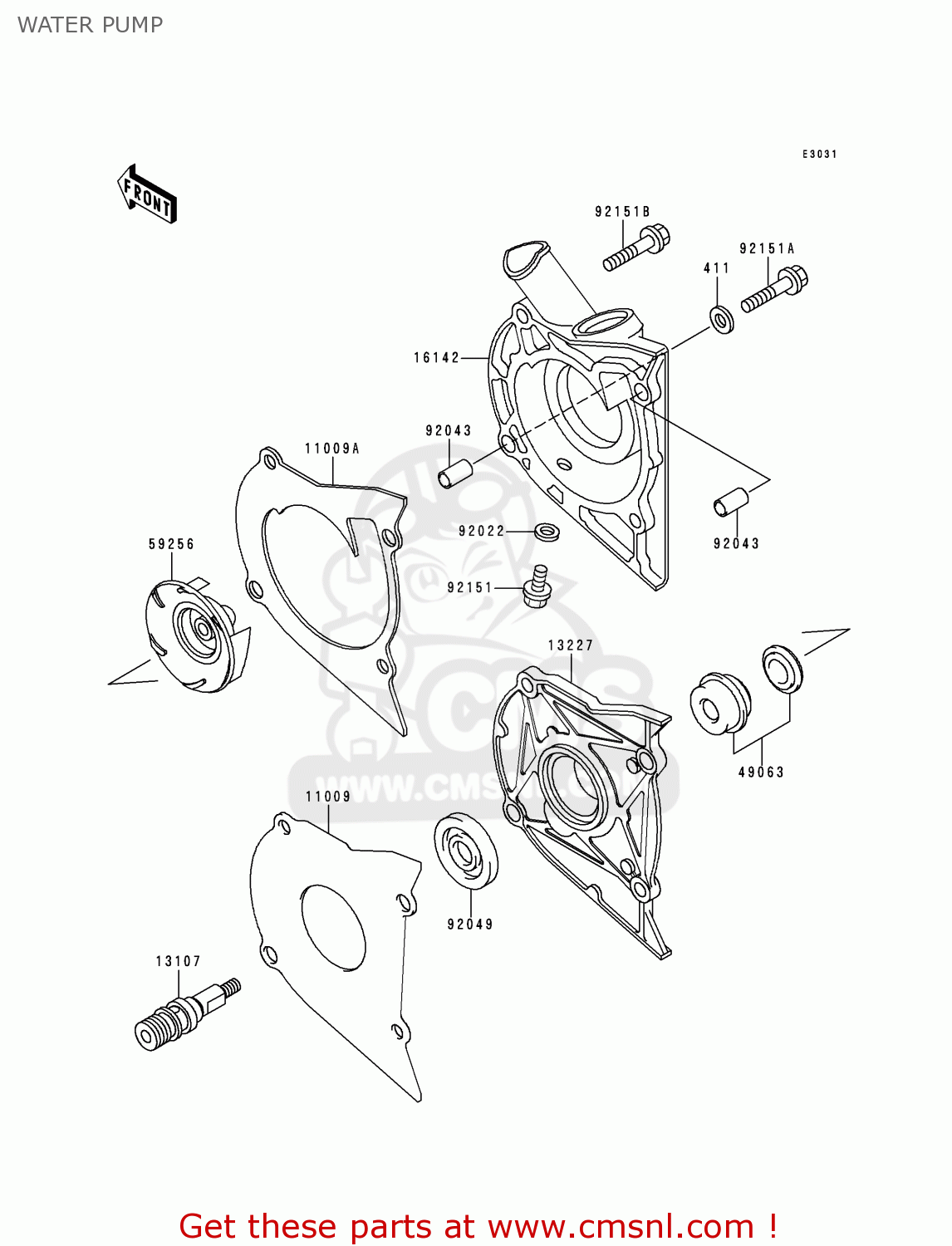

Water pump diagram ER500A3 ER5 1999 UNITED KINGDOM FR NL AR GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

411

411F0600
ref: 411

WASHER-PLAIN,6MM,BLAC

€ 0.50

11009

110091838
ref: 11009

GASKET, PUMP HOUSING (NAS)

€ 7.50

11009A

110091839
ref: 11009A

GASKET, PUMP COVER (NAS)

€ 9.50

13107

131071203
ref: 13107

SHAFT,IMPELLER

€ 38.50

13227

132271126
ref: 13227

HOUSING,WATER PUMP

€ 51.50

16142

161421143
ref: 16142

COVER-PUMP

€ 96.00

49063

490631054
ref: 49063

SEAL-MECHANICAL

€ 19.00

59256

592561060
ref: 59256

IMPELLER

€ 24.00

92022

92022304
ref: 92022

WASHER,PLAIN

€ 2.50

92043

920431263
ref: 92043

PIN,DOWEL,6.2X8X14

€ 0.50

92049

920491215
ref: 92049

SEAL-OIL

€ 10.00

92151

921511133
ref: 92151

BOLT,6X12

€ 1.50

92151A

921511134
ref: 92151A

BOLT,6X30

€ 1.50

92151B

921511135
ref: 92151B

BOLT,6X35

€ 2.50

WATER PUMP

all assemblies
