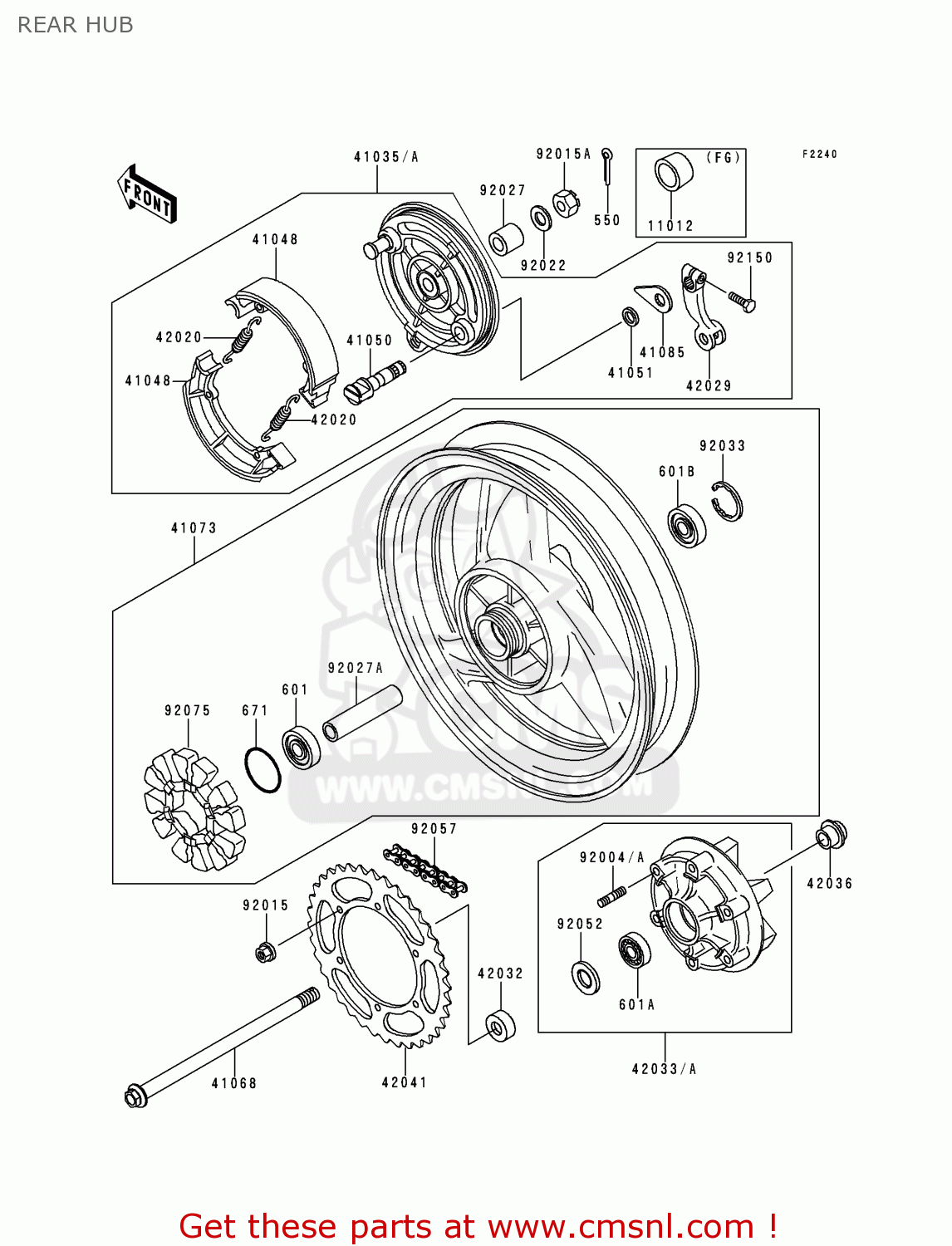

REAR HUB

ref

part #

description

quantity

550

550D4035
ref: 550

PIN-COTTER,4.0X35

€ 1.00

601

601B6203UU
ref: 601

BEARING-BALL,#6203UUC

€ 25.00

601A

601B6205G
ref: 601A

BEARING BALL

€ 14.00

601B

601B6303UU
ref: 601B

BEARING-BALL,6303LLUC

€ 30.50

671

671B2550
ref: 671

O RING,50MM

€ 1.50

11012

110121592
ref: 11012
FG

CAP,AXLE NUT

€ 5.00

41035

410351301GD
ref: 41035

PANEL-ASSY-BRAKE,RR,G

€ 443.50

41048

410481069
ref: 41048

SHOE-BRAKE (NAS)

€ 26.00

41050

410501065
ref: 41050

CAM-BRAKE

€ 29.00

41051

41051003
ref: 41051

DUST SHIELD-BRAKE CAM

€ 2.50

41068

410681191
ref: 41068

AXLE,RR

€ 55.50

41073

410731615GE
ref: 41073

WHEEL-ASSY,RR,G.GRAY

€ 862.50

41085

41085004
ref: 41085

INDICATOR,BRAKE SHOE

€ 10.00

42020

42020004
ref: 42020

SPRING-BRAKE SHOE

€ 5.50

42029

42029039
ref: 42029

LEVER REAR BRAKE CAM

€ 37.00

42032

42032063
ref: 42032

COLLAR,RR AXLE,L=13

€ 15.00

42033A

4203311917J
ref: 42033A

COUPLING-ASSY,RR HUB,

€ 213.00

42036

420361055
ref: 42036

SLEEVE,L=25

€ 19.00

42041

420411279
ref: 42041

SPROCKET-HUB,42T

€ 40.00

92004A

920041151
ref: 92004A

STUD,10X19.5

€ 6.50

92015

920151720
ref: 92015

NUT,10MM

€ 3.50

92015A

920151947
ref: 92015A

NUT

€ 6.50

92022

920221916
ref: 92022

WASHER

€ 3.00

92027

920271257
ref: 92027

COLLAR,17.2X30X24.5

€ 21.50

92027A

920271555
ref: 92027A

COLLAR,17.2X25X96

€ 13.00

92033

920331042
ref: 92033

CIRCLIP,47M/M

€ 4.00

92052

92052006
ref: 92052

OIL SEAL WTC35527

€ 6.50

92057

920571288
ref: 92057

CHAIN,DRIVE,EK520SX-O

€ 107.50

92075

920751436
ref: 92075

DAMPER,RR HUB SHOCK

€ 65.00

92150

921501797
ref: 92150

BOLT

€ 3.50
