FUEL TANK(ER500-A1)

ER500A1 ER5 1997 UNITED KINGDOM FR NL AR GR IT NR SD SP ST

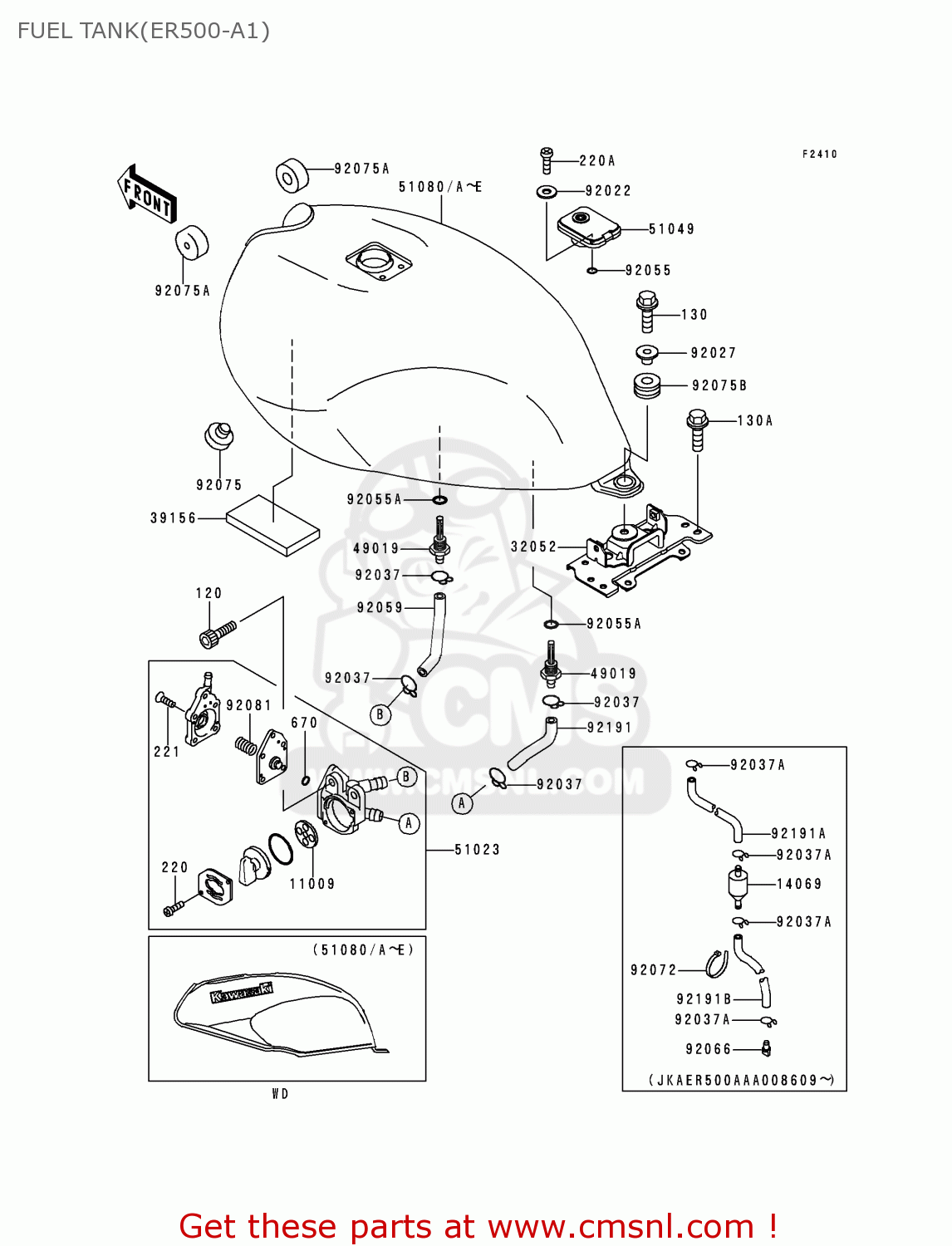

Fuel tank(er500-a1) diagram ER500A1 ER5 1997 UNITED KINGDOM FR NL AR GR IT NR SD SP ST

FUEL TANK(ER500-A1) ER500A1 ER5 1997 UNITED KINGDOM FR NL AR GR IT NR SD SP ST
FUEL TANK(ER500-A1) ER500A1 ER5 1997 UNITED KINGDOM FR NL AR GR IT NR SD SP ST
FUEL TANK(ER500-A1) ER500A1 ER5 1997 UNITED KINGDOM FR NL AR GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
11009
110091188
ref: 11009
GASKET,TAP VALVE (NAS)
110091188
€ 4.00
14069
140691004
ref: 14069
BREATHER,FUEL TANK
140691004
€ 6.50
32052
320521431
ref: 32052
BRACKET-TANK,RR
€ 35.50
39156
391561280
ref: 39156
PAD,FUEL TANK
391561280
€ 8.50
49019
490191057
ref: 49019
FILTER-FUEL,"RES"
490191057
€ 12.00
51023
510231229
ref: 51023
TAP-ASSY,FUEL
510231229
€ 80.00
51049
510491085
ref: 51049
CAP-TANK,FUEL
€ 156.50
51080
510805376B1
ref: 51080
TANK-COMP-FUEL,F.RED
€ 317.00
51080A
510805377B5
ref: 51080A
TANK-COMP-FUEL,BLACK
€ 348.50
51080B
510805378C6
ref: 51080B
ARFGFRGRITNLNRSTUK
TANK-COMP-FUEL,M.N.BL
€ 302.00
51080C
510805412B1
ref: 51080C
TANK-COMP-FUEL,F.RED
510805412B1
€ 317.00
51080D
510805413B5
ref: 51080D
TANK-COMP-FUEL,BLACK
510805413B5
€ 348.50
51080E
510805414C6
ref: 51080E
ARFGFRGRITNLNRSTUK
TANK-COMP-FUEL,M.N.BL
510805414C6
€ 302.00
92022
920221977
ref: 92022
WASHER,5.1X10X1.0
920221977
€ 2.50
92027
920271780
ref: 92027
COLLAR,L=19.3
920271780
€ 4.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
92037147
€ 4.50
92037A
920371972
ref: 92037A
CLAMP,TUBE
920371972
€ 2.50
92055
920551023
ref: 92055
ORING
920551023
€ 2.50
92055A
920551387
ref: 92055A
RING-O,ID=11.5
920551387
€ 2.50
92059
920591392
ref: 92059
TUBE,6.5X11.5X260
€ 4.50
92066
920661211
ref: 92066
PLUG
920661211
€ 5.50
92072
920721197
ref: 92072
BAND
920721197
€ 5.00
92075
92075015
ref: 92075
DAMPER RUBB-MAIN STND
92075015
€ 3.00
92075A
92075125
ref: 92075A
DAMPER RUBBER-FL TANK
92075125
€ 4.00
120
120S0612
ref: 120
BOLT-SOCKET
120S0612
€ 1.50
130
130G0830
ref: 130
BOLT,8X30
130G0830
€ 1.00
130A
130J0610
ref: 130A
BOLT-FLANGED
130J0610
€ 1.50
220
220B0308
ref: 220
SCREW-PAN-CROS
220B0308
€ 0.50
220A
220D0510
ref: 220A
SCREW-PAN-CROS
220D0510
€ 0.50
221
221B0414
ref: 221
SCREW-CSR-CROS,4X14
221B0414
€ 2.50
670
670B1504
ref: 670
O RING,4MM
670B1504
€ 2.50
92075B
920751736
ref: 92075B
DAMPER
920751736
€ 4.00
92081
920811240
ref: 92081
SPRING,DIAPHRAGM VLV
920811240
€ 2.50
92191
921911149
ref: 92191
TUBE,5.8X10.8X245
921911149
€ 6.50
92191A
921911205
ref: 92191A
TUBE,FUEL TANK DRAIN,
921911205
€ 5.50
92191B
921911206
ref: 92191B
TUBE,FUEL TANK DRAIN,
921911206
€ 17.00
