CHASSIS ELECTRICAL EQUIPMENT

ER500A1 ER5 1997 UNITED KINGDOM FR NL AR GR IT NR SD SP ST

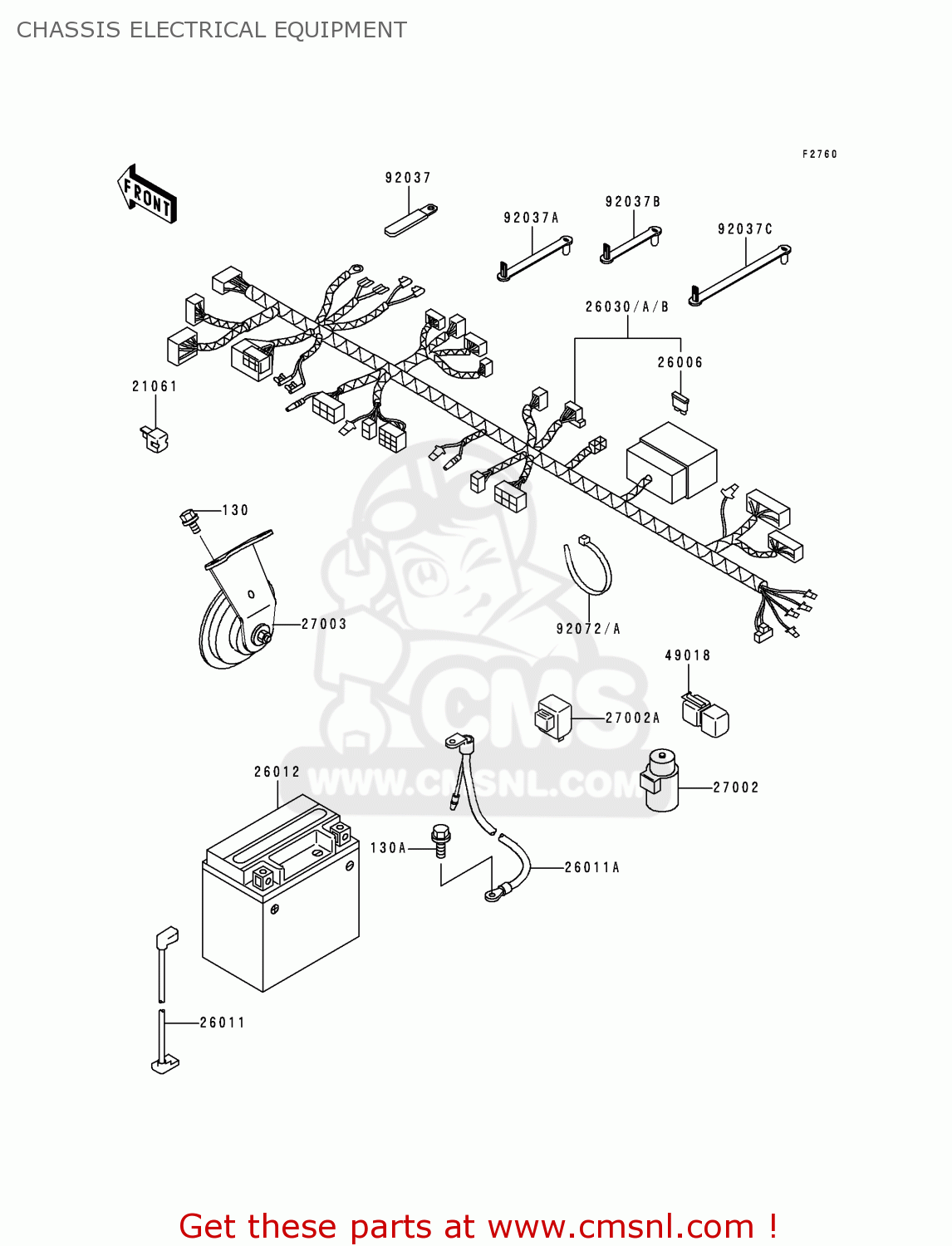

Chassis electrical equipment diagram ER500A1 ER5 1997 UNITED KINGDOM FR NL AR GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

130A

130V0610
ref: 130A

BOLT-FLANGED,6X10

€ 0.50

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061068
ref: 26006

FUSE, 10A-R

€ 3.00

26011

260111656
ref: 26011

WIRE-LEAD,BATTERY(-)

€ 16.50

26011A

260111657
ref: 26011A

WIRE-LEAD,BATTERY(+)

€ 25.50

26012

260121330
ref: 26012

BATTERY,YTX12BS,12V10

€ 120.50

26030

260301472
ref: 26030

HARNESS,MAIN

€ 243.50

27002

270021051
ref: 27002

RELAY-ASSY

€ 32.00

27002A

270021101
ref: 27002A

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270031405
ref: 27003

HORN

€ 55.50

49018

490181052
ref: 49018

DIODE

€ 35.50

92037

920371069
ref: 92037

CLAMP,L=60

€ 1.50

92037A

920371163
ref: 92037A

CLAMP,HARNESS,REAR

€ 4.50

92037B

920371290
ref: 92037B

CLAMP,CARBURETOR

€ 4.50

92037C

920371903
ref: 92037C

CLAMP

€ 5.00

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92072A

920721197
ref: 92072A

BAND

€ 5.00
