CRANKCASE BOLT PATTERN

EN500C8 VULCAN500LTD 2003 USA CALIFORNIA CANADA

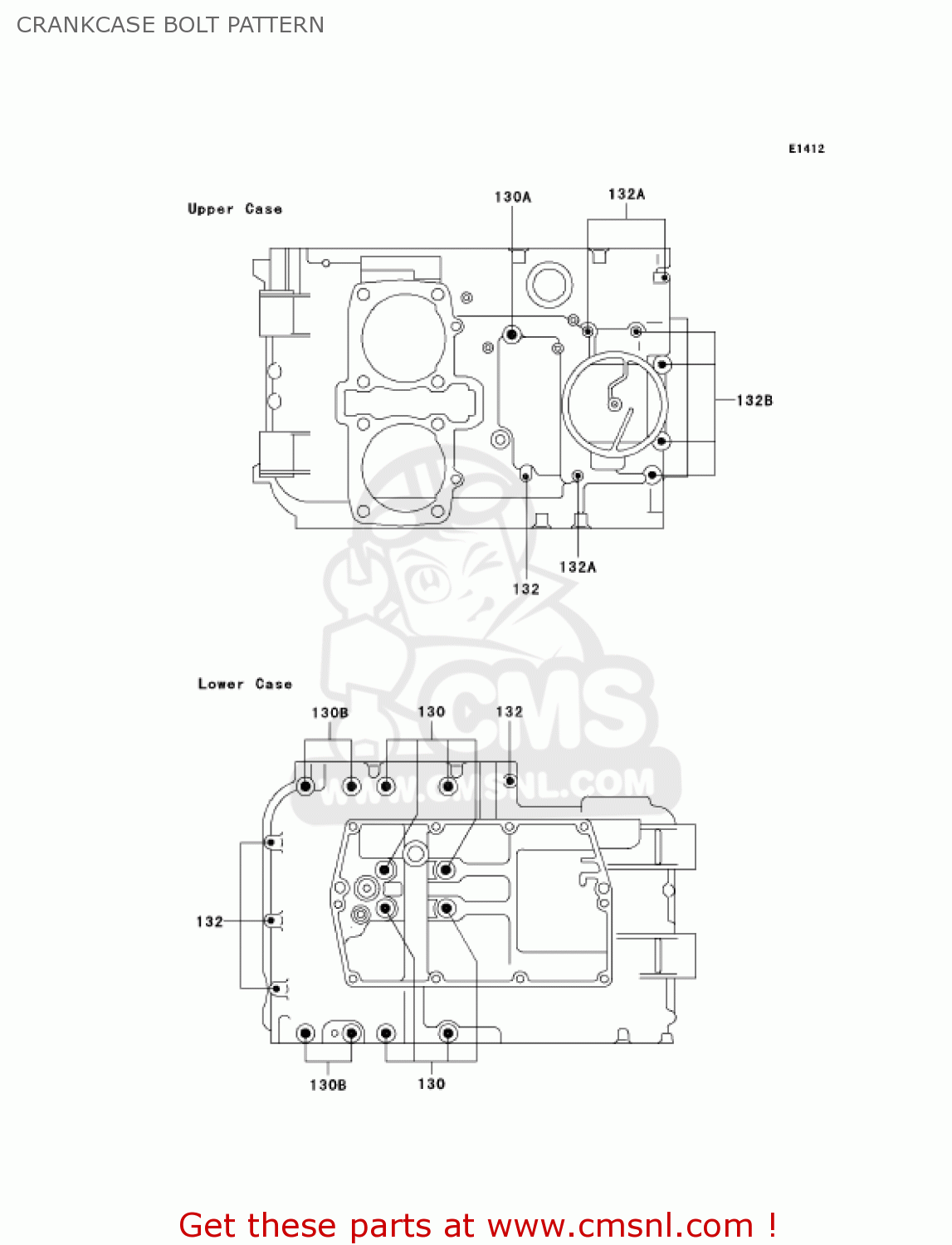

Crankcase bolt pattern diagram EN500C8 VULCAN500LTD 2003 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN EN500C8 VULCAN500LTD 2003 USA CALIFORNIA CANADA

CRANKCASE BOLT PATTERN EN500C8 VULCAN500LTD 2003 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130Z08100
ref: 130

BOLT-FLANGED

€ 7.50

130A

130Z0855
ref: 130A

BOLT-FLANGED

€ 3.50

130B

130Z0875
ref: 130B

BOLT-FLANGED

€ 6.00

132

132Y0640
ref: 132

BOLT-FLANGED-SMALL

€ 3.50

132A

132Y0660
ref: 132A

BOLT-FLANGED-SMALL

€ 3.00

132B

132Y0680
ref: 132B

BOLT-FLANGED-SMALL

€ 3.50
