CRANKCASE

EN500C8 VULCAN500LTD 2003 USA CALIFORNIA CANADA

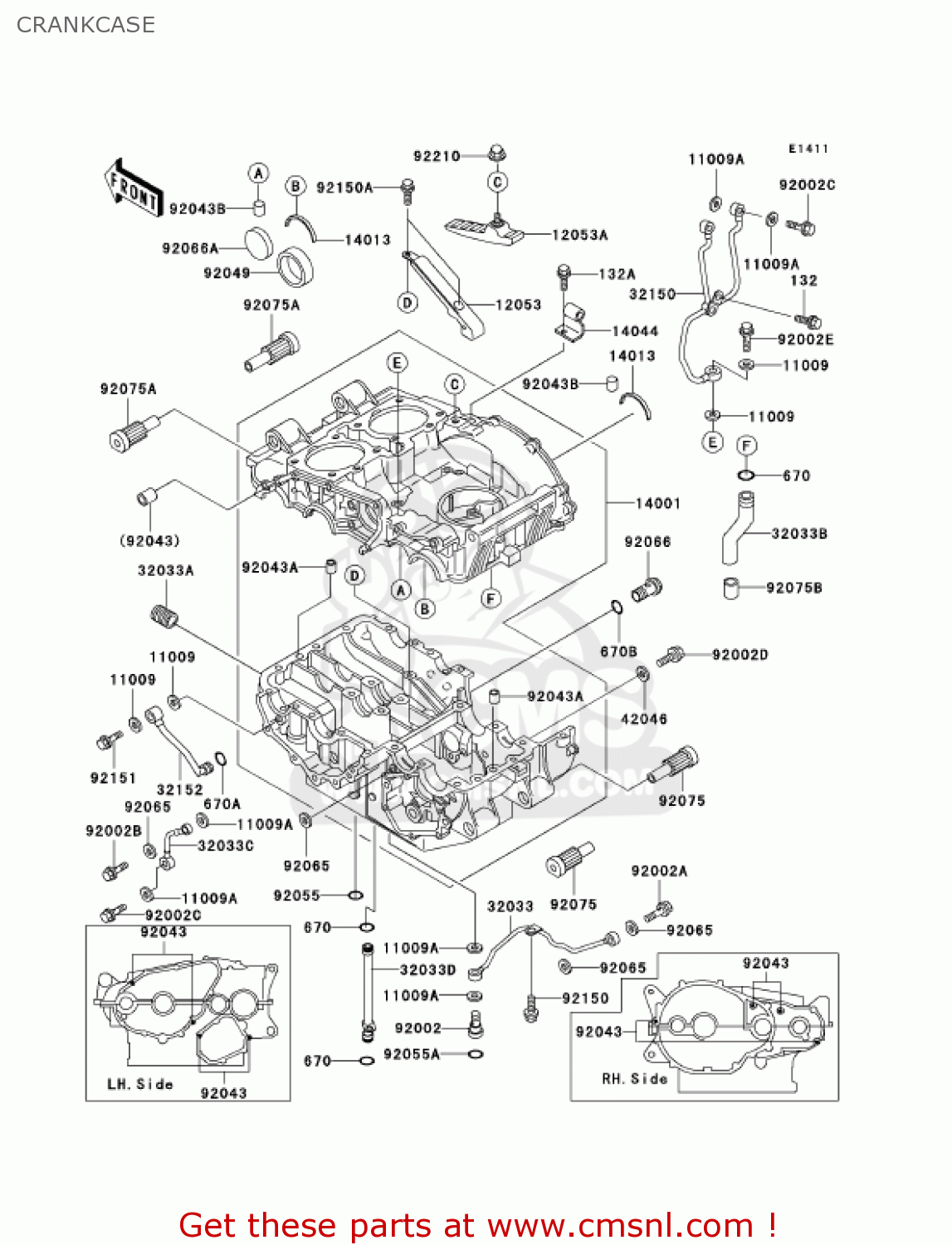

Crankcase diagram EN500C8 VULCAN500LTD 2003 USA CALIFORNIA CANADA

CRANKCASE EN500C8 VULCAN500LTD 2003 USA CALIFORNIA CANADA
CRANKCASE EN500C8 VULCAN500LTD 2003 USA CALIFORNIA CANADA
CRANKCASE EN500C8 VULCAN500LTD 2003 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132Y0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132Y0616
ref: 132A
BOLT-FLANGED-SMALL
132Y0616
€ 2.50
11009
110091105
ref: 11009
GASKET,10X14.5X1.5 (NAS)
110091105
€ 4.00
11009A
110091344
ref: 11009A
GASKET,OIL PIPE,8.2X1 (NAS)
110091344
€ 1.50
12053
120531378
ref: 12053
GUIDE-CHAIN,LWR
€ 33.50
12053A
120531379
ref: 12053A
GUIDE-CHAIN,UPP
€ 46.00
14001
140011092
ref: 14001
SET-CRANKCASE
140011092
€ 1,813.00
14013
14013004
ref: 14013
RING-BEARING SETTING
14013004
€ 7.00
14044
140441070
ref: 14044
HOLDER-CABLE
140441070
€ 10.50
32033
320331530
ref: 32033
PIPE
320331530
€ 38.50
32033A
320331535
ref: 32033A
PIPE
320331535
€ 9.00
32033B
320331538
ref: 32033B
PIPE
320331538
€ 26.00
32033C
320331539
ref: 32033C
PIPE
320331539
€ 29.50
32033D
320331574
ref: 32033D
PIPE
320331574
€ 39.50
32150
321501478
ref: 32150
PIPE
321501478
€ 84.50
32152
321521166
ref: 32152
PIPE,OIL
€ 45.50
42046
42046008
ref: 42046
WASHER,6.5X24X1.2
€ 2.00
92002
920021467
ref: 92002
BOLT
€ 19.00
92002A
920021471
ref: 92002A
BOLT,BANJO,6X28
€ 12.00
92002B
920021473
ref: 92002B
BOLT,BANJO,6X19
920021473
€ 8.50
92002C
920021618
ref: 92002C
BOLT,BANJO,8X20
920021618
€ 7.00
92002D
920021656
ref: 92002D
BOLT, 6 X 14
920021656
€ 3.00
92002E
920021809
ref: 92002E
BOLT
€ 10.00
92043
920431263
ref: 92043
PIN,DOWEL,6.2X8X14
920431263
€ 0.50
92043A
920431264
ref: 92043A
PIN,DOWEL,8.2X10X14
920431264
€ 0.50
92043B
920431690
ref: 92043B
PIN,6X16
920431690
€ 3.50
92049
920491567
ref: 92049
SEAL-OIL
920491567
€ 11.50
92055
92055048
ref: 92055
RING-O,OD=18
92055048
€ 3.00
92055A
92055074
ref: 92055A
O RING
92055074
€ 5.50
92065
92065096
ref: 92065
GASKET,FUEL COCK (NAS)
92065096
€ 3.00
92066
920661205
ref: 92066
PLUG,MAIN GALLERY
920661205
€ 19.00
92066A
920661208
ref: 92066A
PLUG,RCA 345.5
920661208
€ 10.00
92075
920751678
ref: 92075
DAMPER,L=79.5
920751678
€ 33.00
92075A
920751679
ref: 92075A
DAMPER,L=93
920751679
€ 35.50
92075B
920751742
ref: 92075B
DAMPER
920751742
€ 3.00
92150
921501826
ref: 92150
BOLT,6X12
921501826
€ 2.50
92150A
921501868
ref: 92150A
BOLT,6X12
921501868
€ 2.00
92151
921511066
ref: 92151
BOLT,BANJO,10X27
€ 6.00
92210
922101061
ref: 92210
NUT
€ 2.50
670
670B1510
ref: 670
O RING,9.8X1.9
670B1510
€ 2.50
670A
670B2010
ref: 670A
O RING,10MM
670B2010
€ 1.00
670B
670B2021
ref: 670B
O RING,21MM
670B2021
€ 3.00
