SEAT

EN500C7 VULCAN500LTD 2002 USA CALIFORNIA CANADA

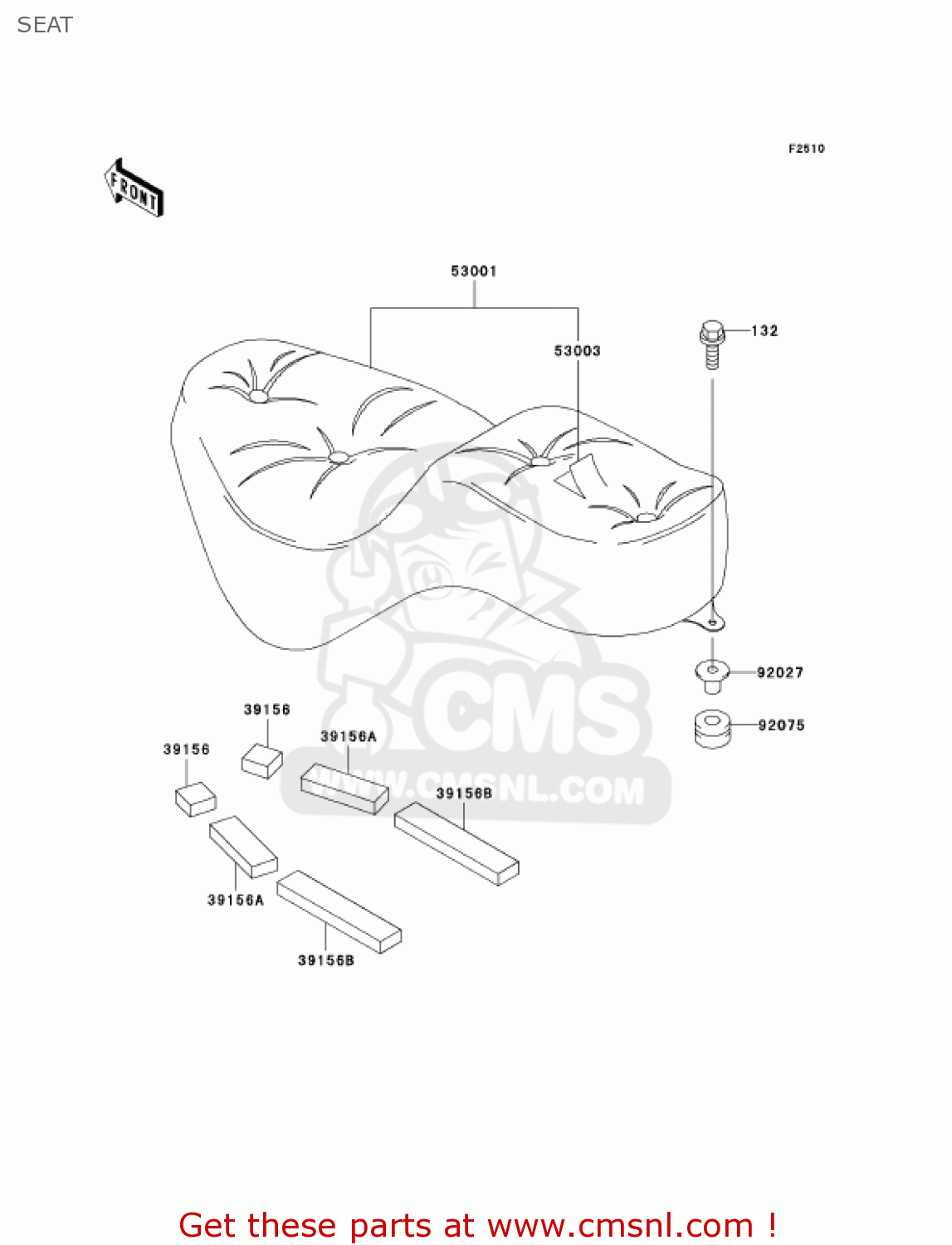

Seat diagram EN500C7 VULCAN500LTD 2002 USA CALIFORNIA CANADA

SEAT EN500C7 VULCAN500LTD 2002 USA CALIFORNIA CANADA

SEAT EN500C7 VULCAN500LTD 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

132

132E0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

39156

391561562
ref: 39156

PAD,SEAT,FR

€ 2.00

39156A

391561563
ref: 39156A

PAD,SEAT,CNT

€ 4.00

39156B

391561564
ref: 39156B

PAD,SEAT,RR

€ 6.50

53001

530011801MA
ref: 53001

SEAT-ASSY,DUAL,W/BAND

€ 381.00

53003

530031358MA
ref: 53003

LEATHER,SEAT,BLACK

€ 152.00

92027

920271166
ref: 92027

COLLAR,FRONT FENDER

€ 4.00

92075

92075105
ref: 92075

DAMPER

€ 2.50
