CHASSIS ELECTRICAL EQUIPMENT

EN500C7 VULCAN500LTD 2002 USA CALIFORNIA CANADA

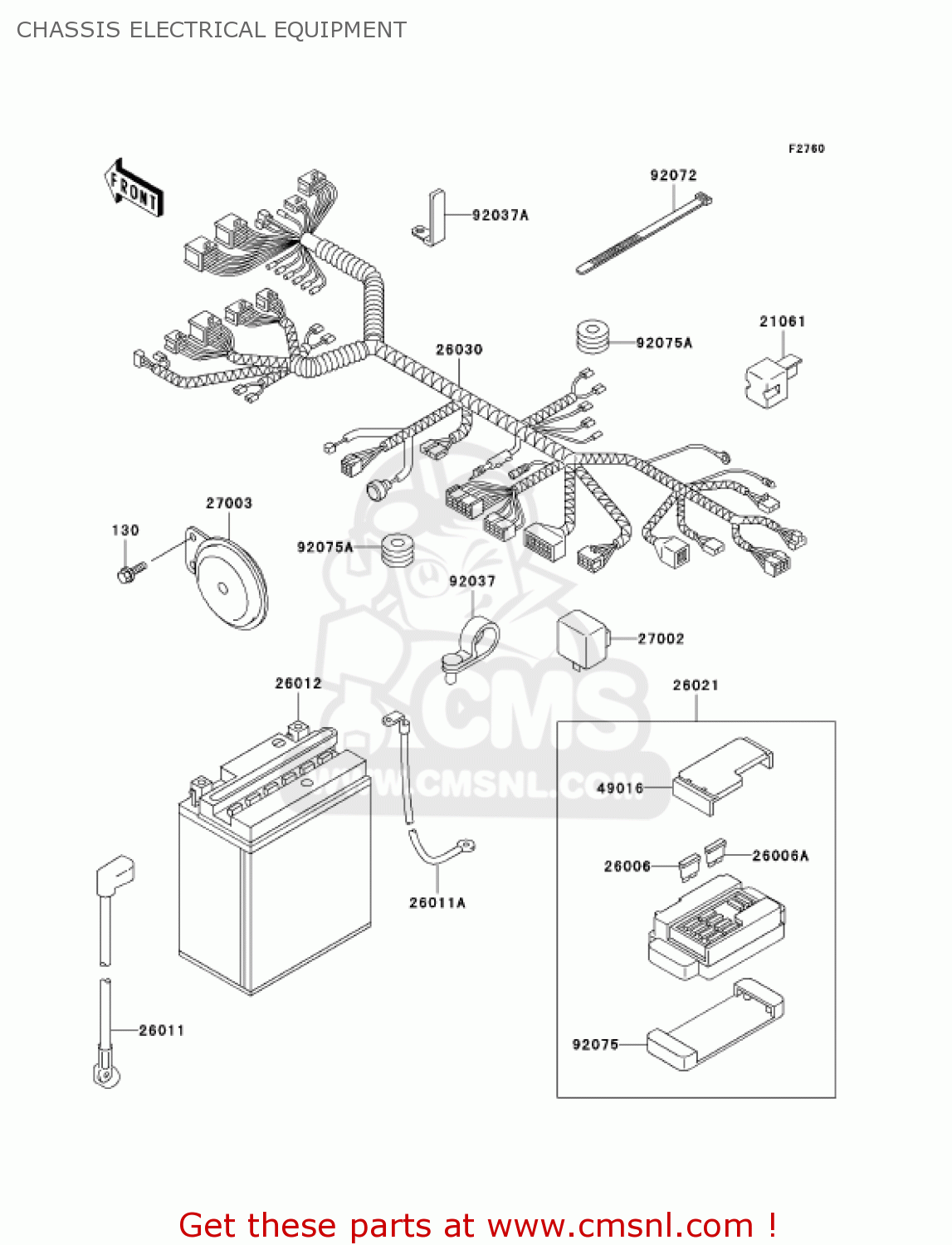

Chassis electrical equipment diagram EN500C7 VULCAN500LTD 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130J0612
ref: 130

BOLT-FLANGED,6X12,BLA

€ 1.50

21061

210611003
ref: 21061

RECTIFIER

€ 25.00

26006

260061067
ref: 26006

FUSE, 30A-G

€ 3.00

26006A

260061068
ref: 26006A

FUSE, 10A-R

€ 3.00

26011

260111642
ref: 26011

WIRE-LEAD,BATTERY(+)

€ 25.00

26011A

260111643
ref: 26011A

WIRE-LEAD,BATTERY(-)

€ 26.50

26012

260121342
ref: 26012

BATTERY,YB12AL-A2,12V

€ 70.00

26021

260211089
ref: 26021

JUNCTION BOX

€ 126.00

26030

260301730
ref: 26030

HARNESS,MAIN

€ 204.00

27002

270021101
ref: 27002

RELAY-ASSY,TURN SIGNA

€ 49.50

27003

270031392
ref: 27003

HORN

€ 53.00

49016

490161177
ref: 49016

COVER-SEAL,FUSE

€ 7.00

92037

920371163
ref: 92037

CLAMP,HARNESS,REAR

€ 4.50

92037A

920371679
ref: 92037A

CLAMP

€ 3.50

92072

920721195
ref: 92072

BAND,L=185

€ 1.00

92075

920751688
ref: 92075

DAMPER,FUSE & RELAY B

€ 9.50

92075A

92075294
ref: 92075A

DAMPER RUBBER,HORN MT

€ 2.50
