HEADLIGHT(S)

EN500C6F VULCAN500LTD 2006 USA CALIFORNIA CANADA

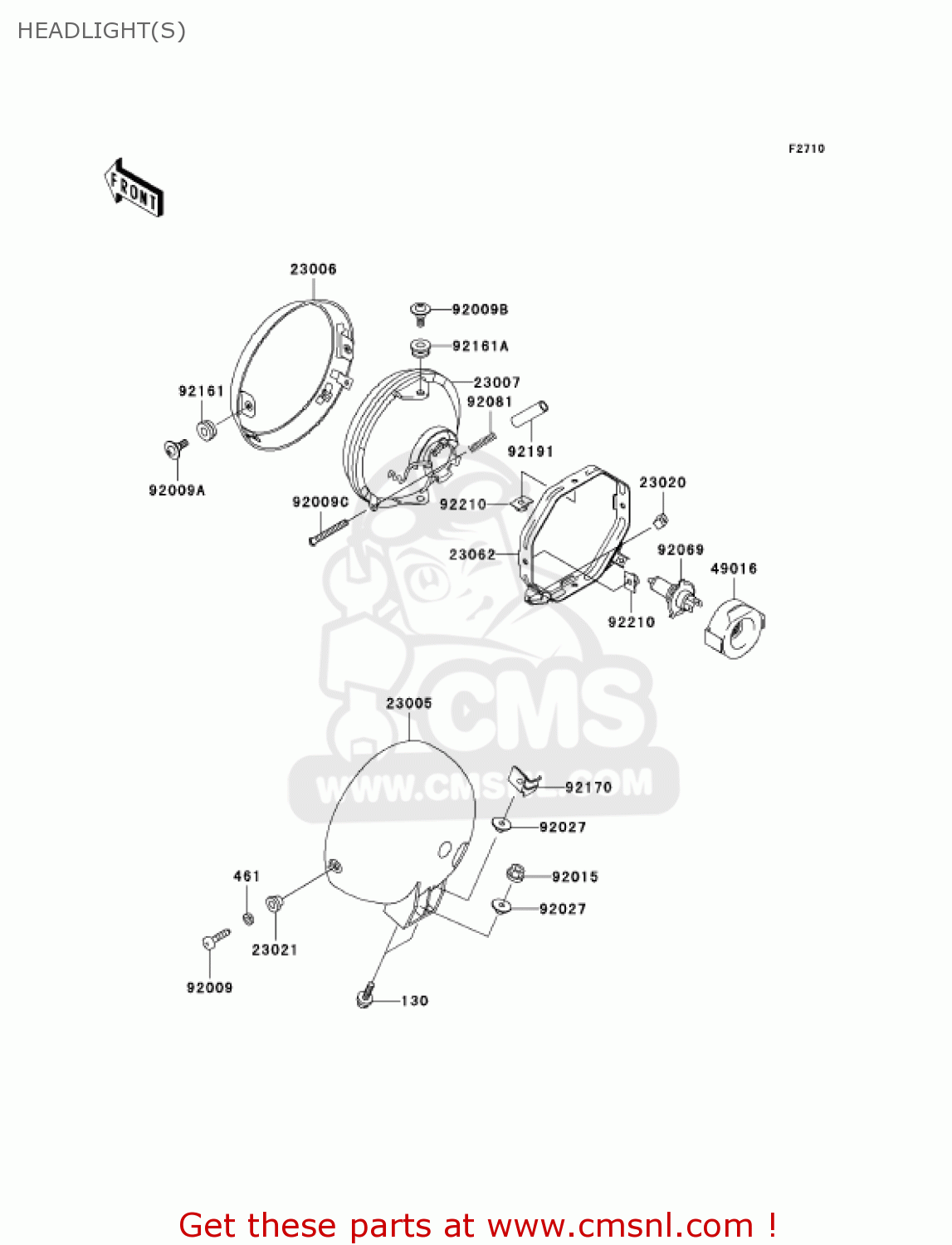

Headlight(s) diagram EN500C6F VULCAN500LTD 2006 USA CALIFORNIA CANADA

HEADLIGHT(S) EN500C6F VULCAN500LTD 2006 USA CALIFORNIA CANADA
HEADLIGHT(S) EN500C6F VULCAN500LTD 2006 USA CALIFORNIA CANADA
HEADLIGHT(S) EN500C6F VULCAN500LTD 2006 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
130
130V0620
ref: 130
BOLT-FLANGED
€ 2.00
461
461S0500
ref: 461
WASHER-SPRING,5MM
461S0500
€ 0.50
23005
230051149
ref: 23005
BODY-COMP-HEAD LAMP
230051149
€ 117.00
23006
230061084
ref: 23006
RIM-LAMP
€ 66.00
23007
230071401
ref: 23007
LENS-COMP, HEAD LAMP
€ 126.50
23020
23020018
ref: 23020
NUT,4MM,FOCUS ADJUST
23020018
€ 3.00
23021
23021010
ref: 23021
WASHER
23021010
€ 2.50
23062
230621134
ref: 23062
BRACKET-COMP
230621134
€ 33.00
49016
490161210
ref: 49016
COVER-SEAL
490161210
€ 12.50
92009
920091947
ref: 92009
SCREW,5MM
920091947
€ 2.00
92009A
920091955
ref: 92009A
SCREW
920091955
€ 2.00
92009B
920091956
ref: 92009B
SCREW
€ 2.00
92009C
920091957
ref: 92009C
SCREW
€ 2.50
92015
920151367
ref: 92015
NUT,FLANGED,6MM
920151367
€ 0.50
92027
92027252
ref: 92027
COLLAR,L=6.5
92027252
€ 3.50
92069
920691002
ref: 92069
BULB,12V-60155W
920691002
€ 15.00
92081
920811701
ref: 92081
SPRING,FOCUS ADJUSTIN
920811701
€ 3.00
92161
921611187
ref: 92161
DAMPER
€ 2.00
92161A
921611188
ref: 92161A
DAMPER
921611188
€ 2.00
92170
921701624
ref: 92170
CLAMP
€ 3.50
92191
921911217
ref: 92191
TUBE
921911217
€ 1.50
92210
922101060
ref: 92210
NUT
922101060
€ 1.50
