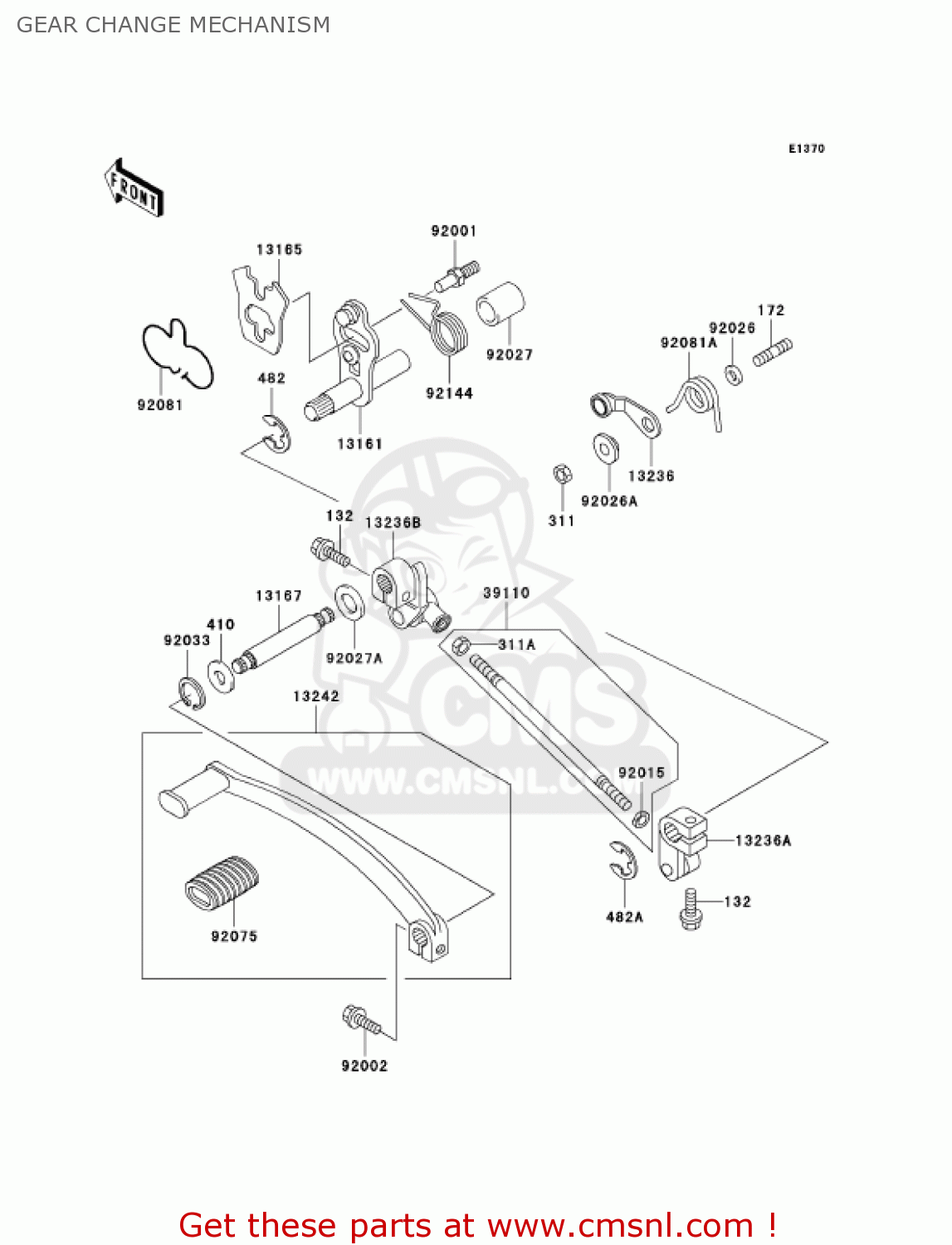

GEAR CHANGE MECHANISM

ref

part #

description

quantity

132

132J0620
ref: 132

BOLT-FLANGED-SMALL

€ 2.00

172

172G0614
ref: 172

STUD,6X14

€ 1.00

311

311G0600
ref: 311

NUT,6M/M

€ 0.50

311A

311J0600
ref: 311A

NUT-HEX

€ 1.00

410

410F1200
ref: 410

410F1200

482

482J0200
ref: 482

CIRCLIP-TYPE-E,12MM

€ 2.50

482A

482L7000
ref: 482A

CIRCLIP-TYPE-E

€ 2.50

13161

131611117
ref: 13161

LEVER-COMP-CHANGE SHA

€ 56.00

13165

131651034
ref: 13165

PAWL,CHANGE LEVER

€ 7.00

13167

131671059
ref: 13167

SHAFT-CHANGE

€ 41.50

13236

132361103
ref: 13236

LEVER-COMP,GEAR POSIT

€ 13.00

13236A

132361123
ref: 13236A

LEVER-COMP,CHANGE

€ 62.00

13236B

132361401
ref: 13236B

LEVER-COMP,CHANGE

€ 67.00

13242

132421331
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 29.00

39110

391101116
ref: 39110

ROD-ASSY-TIE

€ 10.50

92001

920011455
ref: 92001

BOLT

€ 3.00

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92015

920151178
ref: 92015

NUT

€ 2.50

92026

92026094
ref: 92026

WASHER,THRUST

€ 6.50

92026A

920261217
ref: 92026A

SPACER

€ 3.50

92027

920271440
ref: 92027

COLLAR,13X18.3X21.5

€ 3.50

92027A

920271855
ref: 92027A

COLLAR,13.2X22X5.5

€ 7.00

92033

920331189
ref: 92033

RING-SNAP,11MM

€ 3.00

92075

920751585
ref: 92075

DAMPER

€ 6.50

92081

920811785
ref: 92081

SPRING,CHANGE LEVER

€ 6.00

92081A

920811786
ref: 92081A

SPRING,POSITION LEVER

€ 6.00

92144

921441644
ref: 92144

SPRING,CHANGE PEDAL R

€ 6.00

all assemblies
