FRONT HUB

EN500C4 1999 EUROPE FR NL AR FG GR IT NR SD SP ST

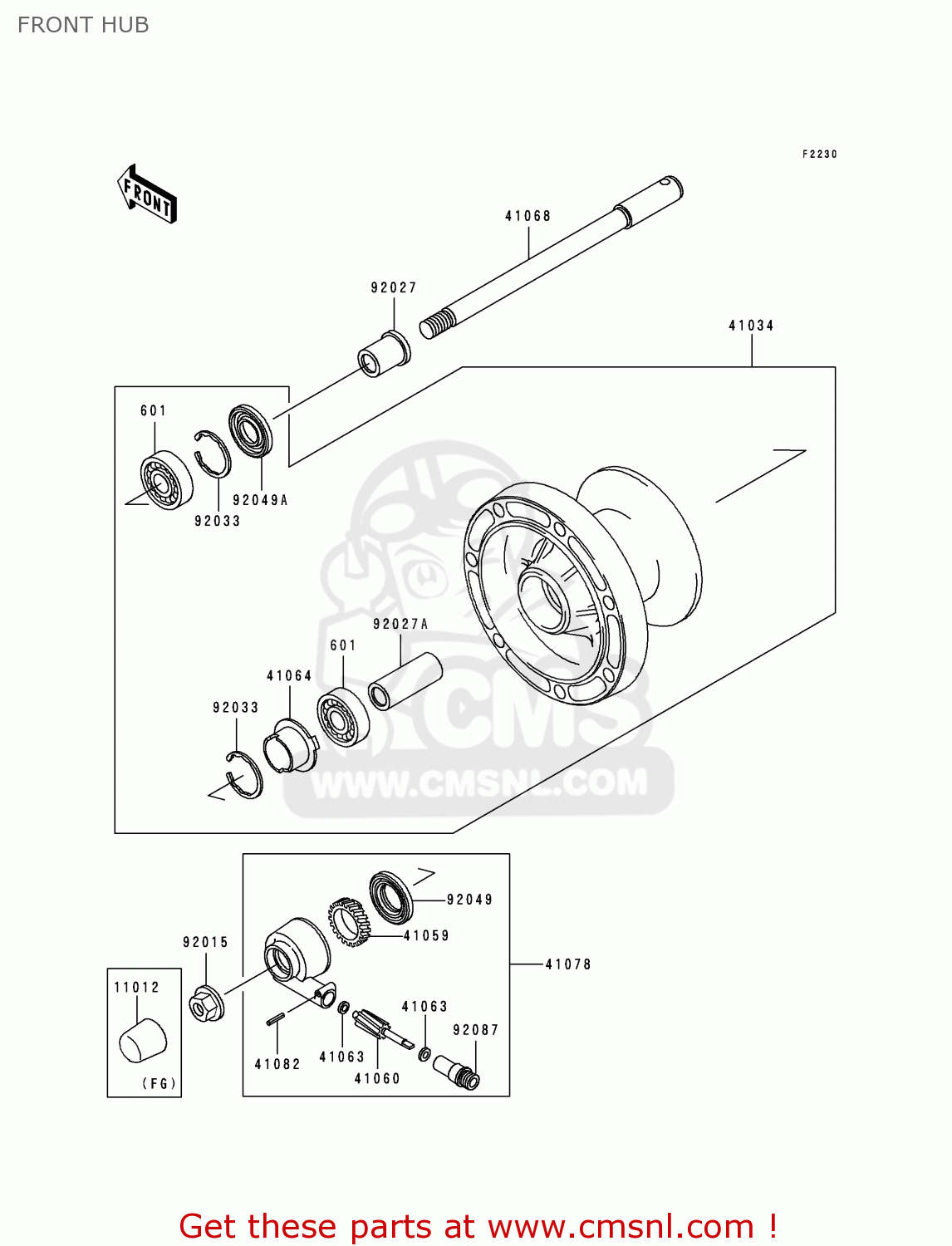

Front hub diagram EN500C4 1999 EUROPE FR NL AR FG GR IT NR SD SP ST

FRONT HUB EN500C4 1999 EUROPE FR NL AR FG GR IT NR SD SP ST
FRONT HUB EN500C4 1999 EUROPE FR NL AR FG GR IT NR SD SP ST
FRONT HUB EN500C4 1999 EUROPE FR NL AR FG GR IT NR SD SP ST
prices are in EUR
ref
part #
description
quantity
601
601B6302UG
ref: 601
BEARING BALL
€ 29.00
11012
110121591
ref: 11012
FG
CAP,AXLE NUT
110121591
€ 3.00
41034
410341237
ref: 41034
DRUM-ASSY,FRONT BRAKE
€ 547.50
41059
41059026
ref: 41059
GEAR,SPEEDOMETER
41059026
€ 27.00
41060
410601006
ref: 41060
PINION,SPEEDOMETER
410601006
€ 39.00
41063
41063001
ref: 41063
WASHER-THRST SPD PINI
41063001
€ 3.00
41064
410641056
ref: 41064
RECEIVER-SPEEDOMETER
410641056
€ 16.00
41068
410681376
ref: 41068
AXLE,FR
410681376
€ 44.00
41078
410781100
ref: 41078
CASE-ASSY-METER GEAR
410781100
€ 107.00
41082
41082001
ref: 41082
PIN-SPRING
41082001
€ 2.50
92015
920151407
ref: 92015
NUT,14MM
920151407
€ 6.50
92027
920271225
ref: 92027
COLLAR,FR AXLE L=30MM
920271225
€ 11.50
92027A
920271866
ref: 92027A
COLLAR,L=70
920271866
€ 14.50
92033
920331041
ref: 92033
CIRCLIP,42MM
920331041
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
920491057
€ 7.50
92049A
920491058
ref: 92049A
OIL SEAL,BJN22425
920491058
€ 7.50
92087
920871056
ref: 92087
BUSHING-METER GEAR
920871056
€ 14.00
