FRAME FITTINGS

EN500C4 1999 EUROPE FR NL AR FG GR IT NR SD SP ST

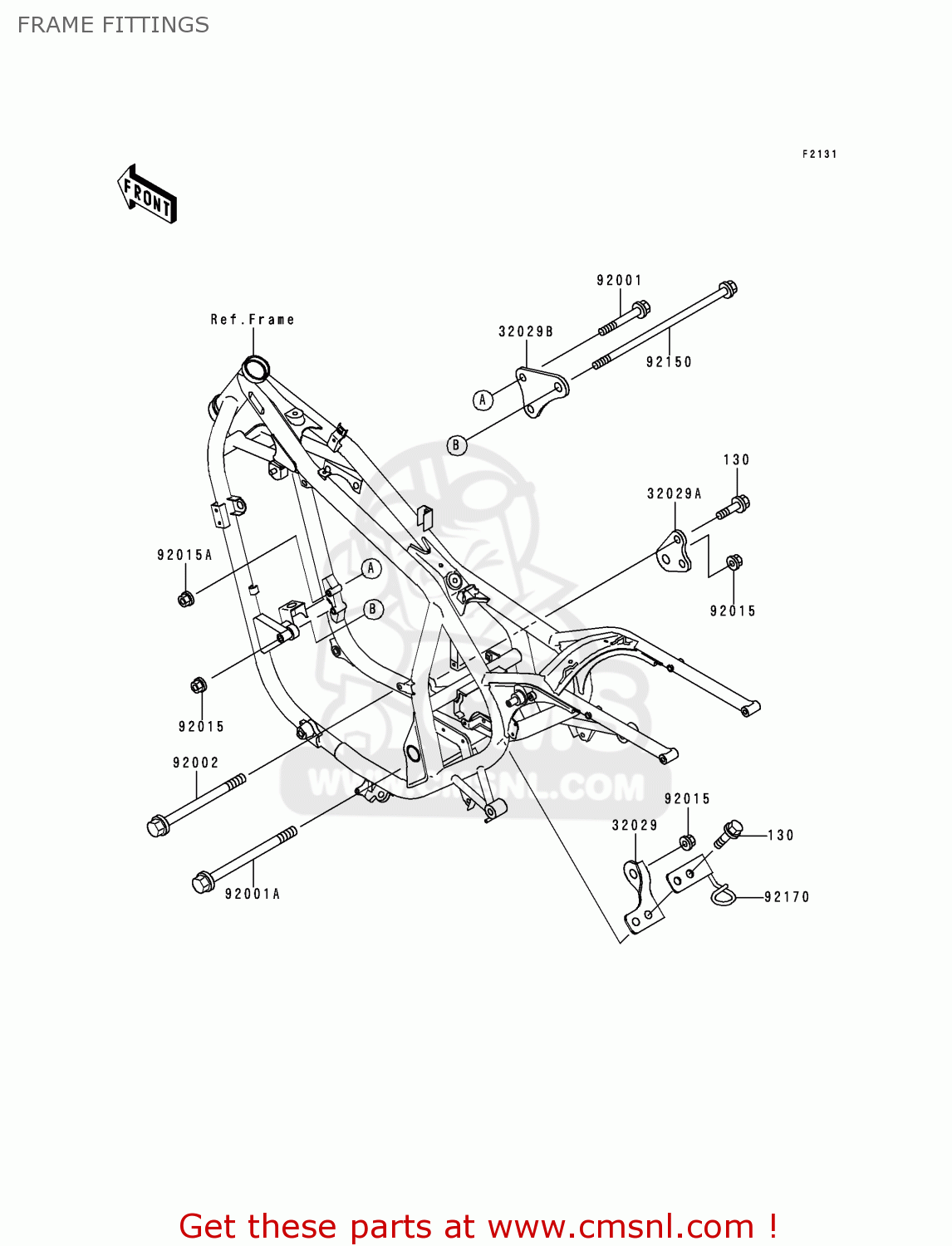

Frame fittings diagram EN500C4 1999 EUROPE FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

130

130J0816
ref: 130

BOLT-FLANGED,8X16,BLA

€ 0.50

32029

320291379
ref: 32029

BRACKET-ENGINE,RR,LWR

€ 8.50

32029A

320291974
ref: 32029A

BRACKET-ENGINE,RR,RH,

€ 6.50

32029B

320291975
ref: 32029B

BRACKET-ENGINE,FR,RH

€ 9.50

92001

920011613
ref: 92001

BOLT,FLANGED,8X45

€ 3.00

92001A

920011621
ref: 92001A

BOLT,FLANGED,10X180

€ 15.00

92002

920021470
ref: 92002

BOLT,FLANGED,10X170

€ 13.50

92015

920151180
ref: 92015

NUT,FLANGED,10MM,BLAC

€ 2.50

92015A

920151251
ref: 92015A

NUT,FLANGED,8MM,BLACK

€ 1.50

92150

921501742
ref: 92150

BOLT

€ 13.00

92170

921701711
ref: 92170

CLAMP,HOSE

€ 13.50

FRAME FITTINGS

all assemblies
