FRONT FORK

EN500C3 VULCAN500LTD 1998 USA CALIFORNIA CANADA

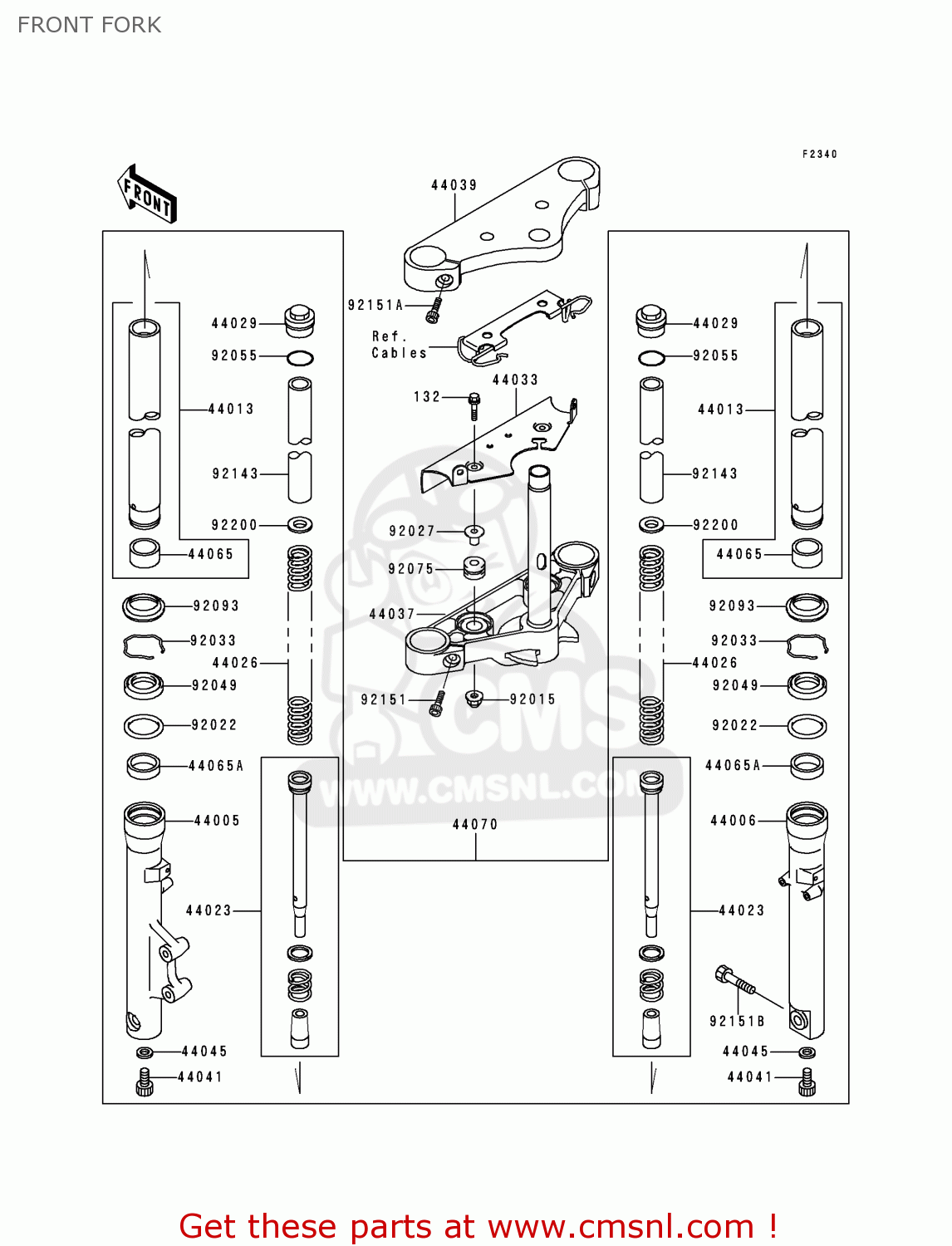

Front fork diagram EN500C3 VULCAN500LTD 1998 USA CALIFORNIA CANADA

FRONT FORK EN500C3 VULCAN500LTD 1998 USA CALIFORNIA CANADA
FRONT FORK EN500C3 VULCAN500LTD 1998 USA CALIFORNIA CANADA
FRONT FORK EN500C3 VULCAN500LTD 1998 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
132
132E0625
ref: 132
BOLT-FLANGED-SMALL
132E0625
€ 3.00
44005
440051365
ref: 44005
PIPE-LEFT FORK OUTER
€ 362.50
44006
440061364
ref: 44006
PIPE-RIGHT FORK OUTER
€ 337.00
44013
440131422
ref: 44013
PIPE-FORK INNER
440131422
€ 258.50
44023
440231099
ref: 44023
CYLINDER-COMP-FORK
€ 236.50
44026
440261606
ref: 44026
SPRING-FRONT FORK
€ 48.00
44029
440291147
ref: 44029
SEAT-FORK SPRING
440291147
€ 31.50
44033
440331213
ref: 44033
COVER-FORK
440331213
€ 49.50
44037
440371341
ref: 44037
HOLDER-FORK UNDER
440371341
€ 339.50
44039
440391265
ref: 44039
HOLDER-FORK UPPER
440391265
€ 228.50
44041
44041040
ref: 44041
BOLT-FORK CYLINDER
44041040
€ 4.50
44045
44045057
ref: 44045
GASKET (NAS)
44045057
€ 3.00
44065
440651114
ref: 44065
BUSHING-FRONT FORK,IN
440651114
€ 14.50
44065A
440651115
ref: 44065A
BUSHING-FRONT FORK
440651115
€ 19.50
44070
440701482
ref: 44070
DAMPER-ASSY,FORK
€ 1,280.00
92015
920151385
ref: 92015
NUT,CAP,6MM
920151385
€ 2.50
92022
920221298
ref: 92022
WASHER,FORK OUTER TUB
920221298
€ 5.50
92027
920271847
ref: 92027
COLLAR,6=16.1
920271847
€ 4.00
92033
920331036
ref: 92033
CIRCLIP
920331036
€ 4.00
92049
920491356
ref: 92049
SEAL-OIL
920491356
€ 13.00
92055
920551321
ref: 92055
RING-O
€ 1.00
92075
920751035
ref: 92075
DAMPER RUBBER
920751035
€ 3.50
92093
920931359
ref: 92093
SEAL,FORK OUTER TUBE
920931359
€ 14.00
92143
921431861
ref: 92143
COLLAR,FORK,L=250
€ 17.00
92151
921511080
ref: 92151
BOLT,SOCKET,10X25
€ 4.00
92151A
921511081
ref: 92151A
BOLT,SOCKET,8X25
€ 3.00
92151B
921511082
ref: 92151B
BOLT,SOCKET,10X40
€ 4.50
92200
922001302
ref: 92200
WASHER
922001302
€ 3.00
