BRAKE PEDAL/TORQUE LINK

EN500C3 VULCAN500LTD 1998 USA CALIFORNIA CANADA

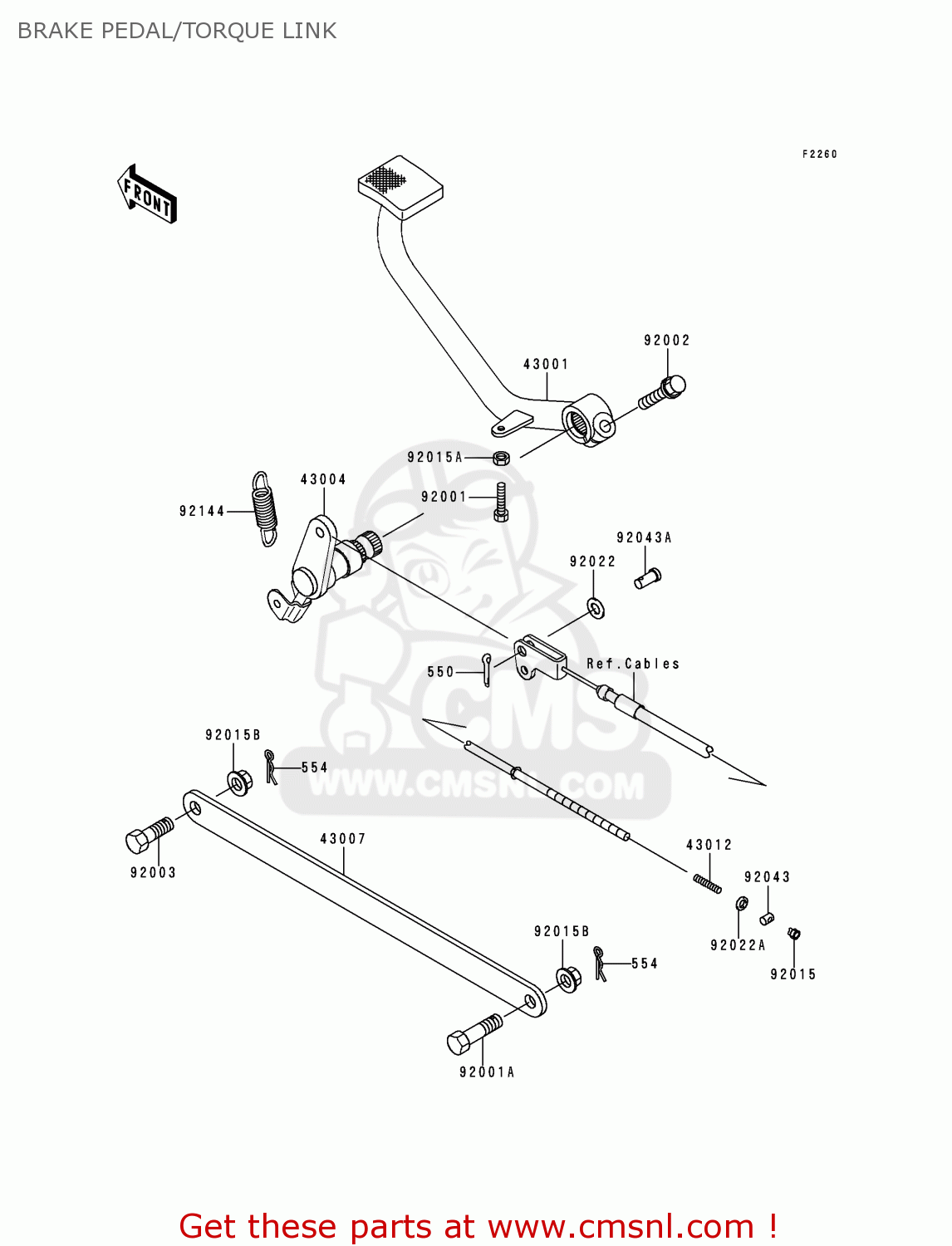

Brake pedal/torque link diagram EN500C3 VULCAN500LTD 1998 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

550

550D2015
ref: 550

PIN-COTTER,2.0X15

€ 1.00

554

554A0800
ref: 554

PIN-SNAP,8MM

€ 1.00

43001

430011365
ref: 43001

LEVER-BRAKE,PEDAL

€ 80.00

43004

430041132
ref: 43004

SHAFT-BRAKE

€ 34.50

43007

430071112
ref: 43007

ROD-TORQUE

€ 20.50

43012

43012001
ref: 43012

SPRING,BRAKE ROD

€ 3.00

92001

920011090
ref: 92001

BOLT,HEX HEAD,6X25

€ 2.50

92001A

920011519
ref: 92001A

BOLT,10X37

€ 4.50

92002

920021201
ref: 92002

BOLT,FLANGED,8X25

€ 3.00

92003

92003096
ref: 92003

BOLT-TRQ LINK 10X29

€ 7.00

92015

92015042
ref: 92015

NUT-BRAKE ROD ADJUST

€ 4.00

92015A

920151391
ref: 92015A

NUT,6MM

€ 2.00

92015B

920151428
ref: 92015B

NUT,FLANGED,10MM

€ 3.00

92022

920221582
ref: 92022

WASHER,8.5X16X1.2

€ 0.50

92022A

920221588
ref: 92022A

WASHER,6.3X10.2X1.6

€ 2.50

92043

92043065
ref: 92043

PIN-BRAKE ROD

€ 3.50

92043A

920431013
ref: 92043A

PIN

€ 6.50

92144

921441053
ref: 92144

SPRING,BRAKE PEDAL RE

€ 6.00
