SWINGARM

EN500C1 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

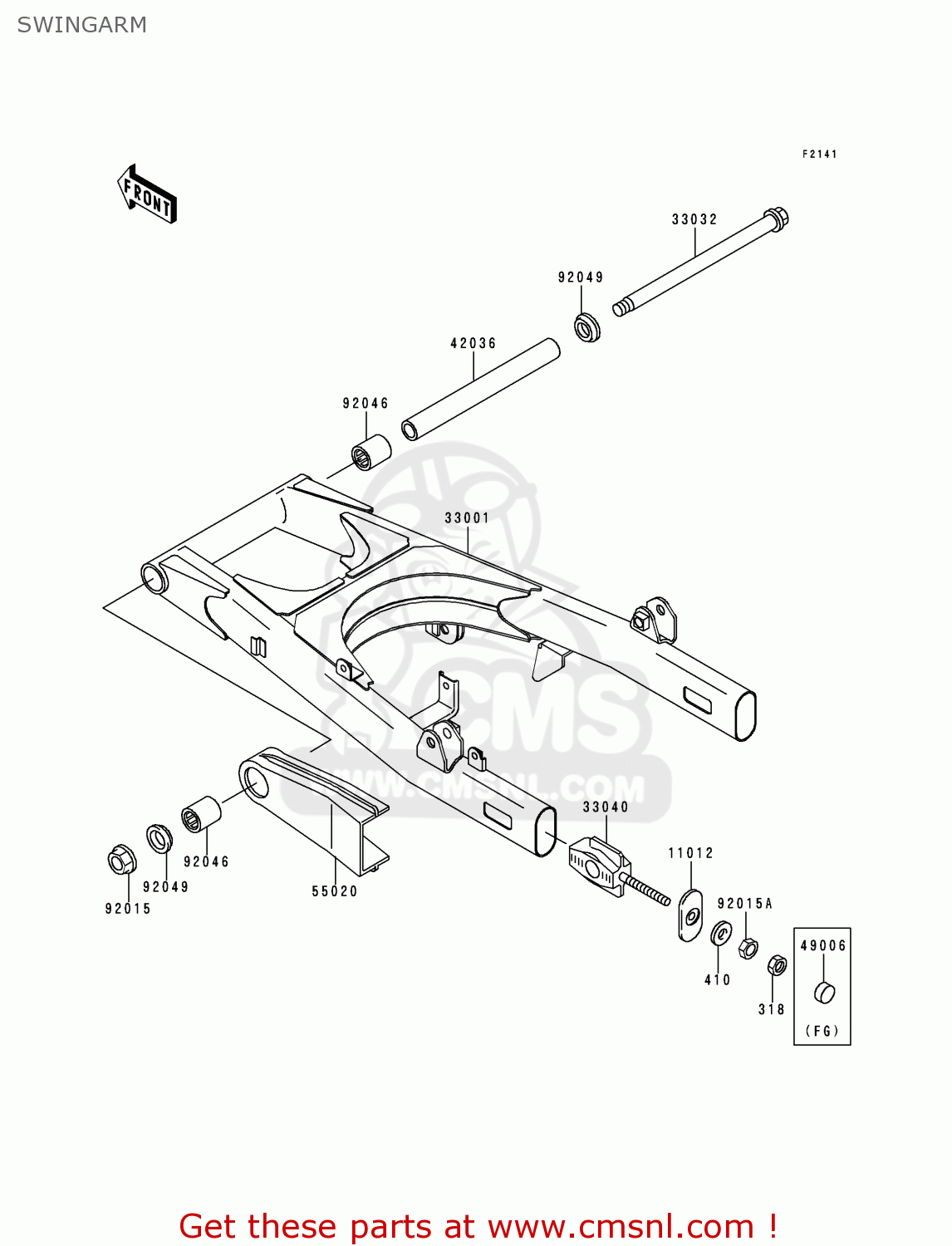

Swingarm diagram EN500C1 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

318

318C0800
ref: 318

NUT-HEX-SMALL

€ 0.50

410

410F0800
ref: 410

WASHER-PLANE-SMALL,8M

€ 3.00

11012

110121819
ref: 11012

CAP,CHAIN ADJUSTER

€ 14.50

33001

330011499
ref: 33001

ARM-COMP-SWING

€ 492.50

33032

330321180
ref: 33032

SHAFT-SWING ARM

€ 45.00

33040

330401140
ref: 33040

ADJUSTER-CHAIN,INNER

€ 25.50

42036

420361329
ref: 42036

SLEEVE,SWING ARM,L=22

€ 45.50

49006

490061218
ref: 49006
FG

BOOT

€ 3.50

55020

550201559
ref: 55020

GUARD,CHAIN

€ 35.50

92015

920151407
ref: 92015

NUT,14MM

€ 6.50

92015A

920151959
ref: 92015A

NUT

€ 4.50

92046

920461174
ref: 92046

BEARING-NEEDLE,TA2230

€ 37.50

92049

920491289
ref: 92049

SEAL-OIL

€ 6.00
