FRONT HUB

EN500C1 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

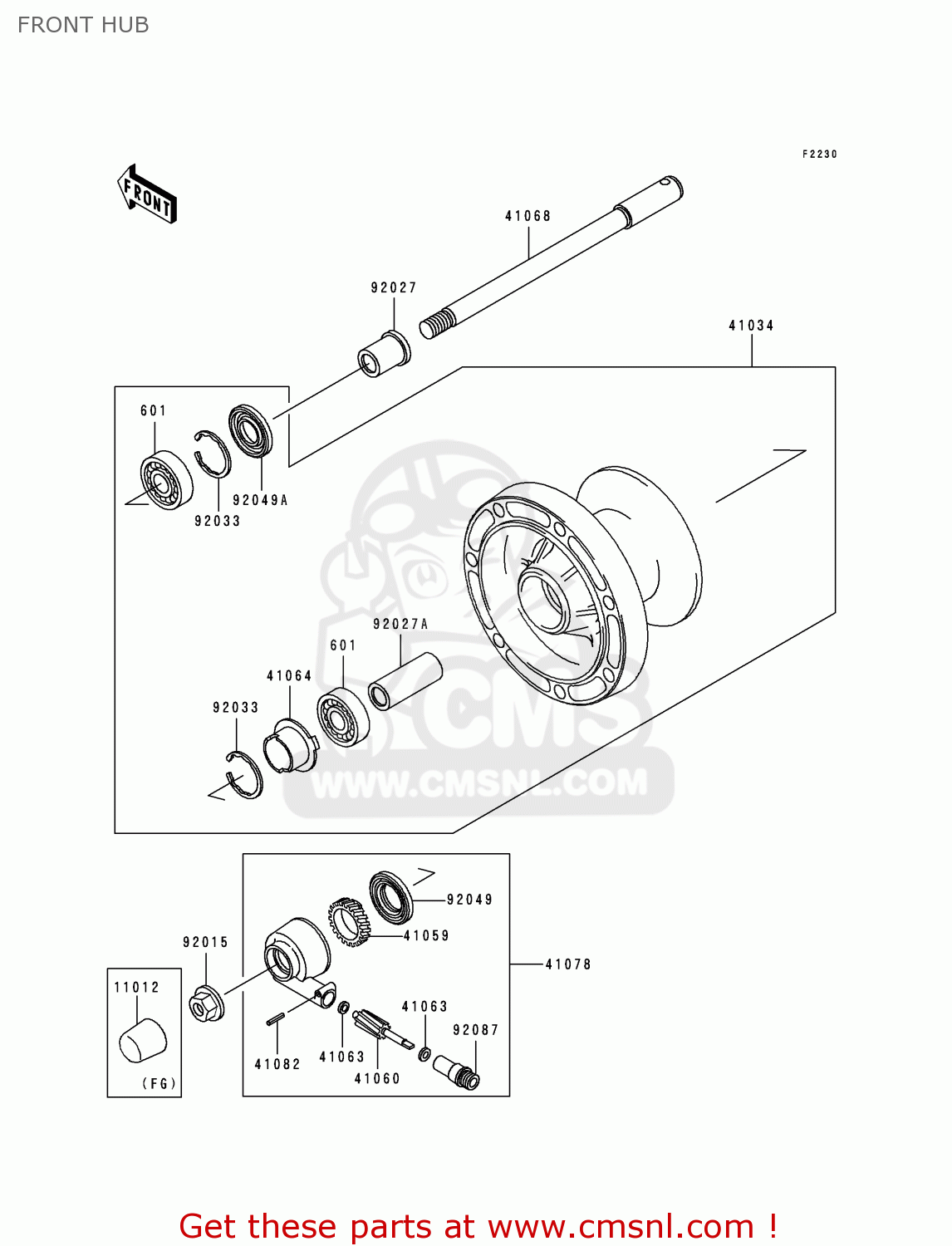

Front hub diagram EN500C1 1996 EUROPE UK FR NL AR FG GR IT NR SD SP ST

prices are in EUR

ref

part #

description

quantity

601

601B6302UG
ref: 601

BEARING BALL

€ 29.00

11012

110121591
ref: 11012
FG

CAP,AXLE NUT

€ 3.00

41034

410341237
ref: 41034

DRUM-ASSY,FRONT BRAKE

€ 547.50

41059

41059026
ref: 41059

GEAR,SPEEDOMETER

€ 27.00

41060

410601006
ref: 41060

PINION,SPEEDOMETER

€ 39.00

41063

41063001
ref: 41063

WASHER-THRST SPD PINI

€ 3.00

41064

410641056
ref: 41064

RECEIVER-SPEEDOMETER

€ 16.00

41068

410681376
ref: 41068

AXLE,FR

€ 44.00

41078

410781100
ref: 41078

CASE-ASSY-METER GEAR

€ 107.00

41082

41082001
ref: 41082

PIN-SPRING

€ 2.50

92015

920151407
ref: 92015

NUT,14MM

€ 6.50

92027

920271225
ref: 92027

COLLAR,FR AXLE L=30MM

€ 11.50

92027A

920271866
ref: 92027A

COLLAR,L=70

€ 14.50

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92049

920491057
ref: 92049

OIL SEAL,BJN30427-C3

€ 7.50

92049A

920491058
ref: 92049A

OIL SEAL,BJN22425

€ 7.50

92087

920871056
ref: 92087

BUSHING-METER GEAR

€ 14.00

FRONT HUB

all assemblies
