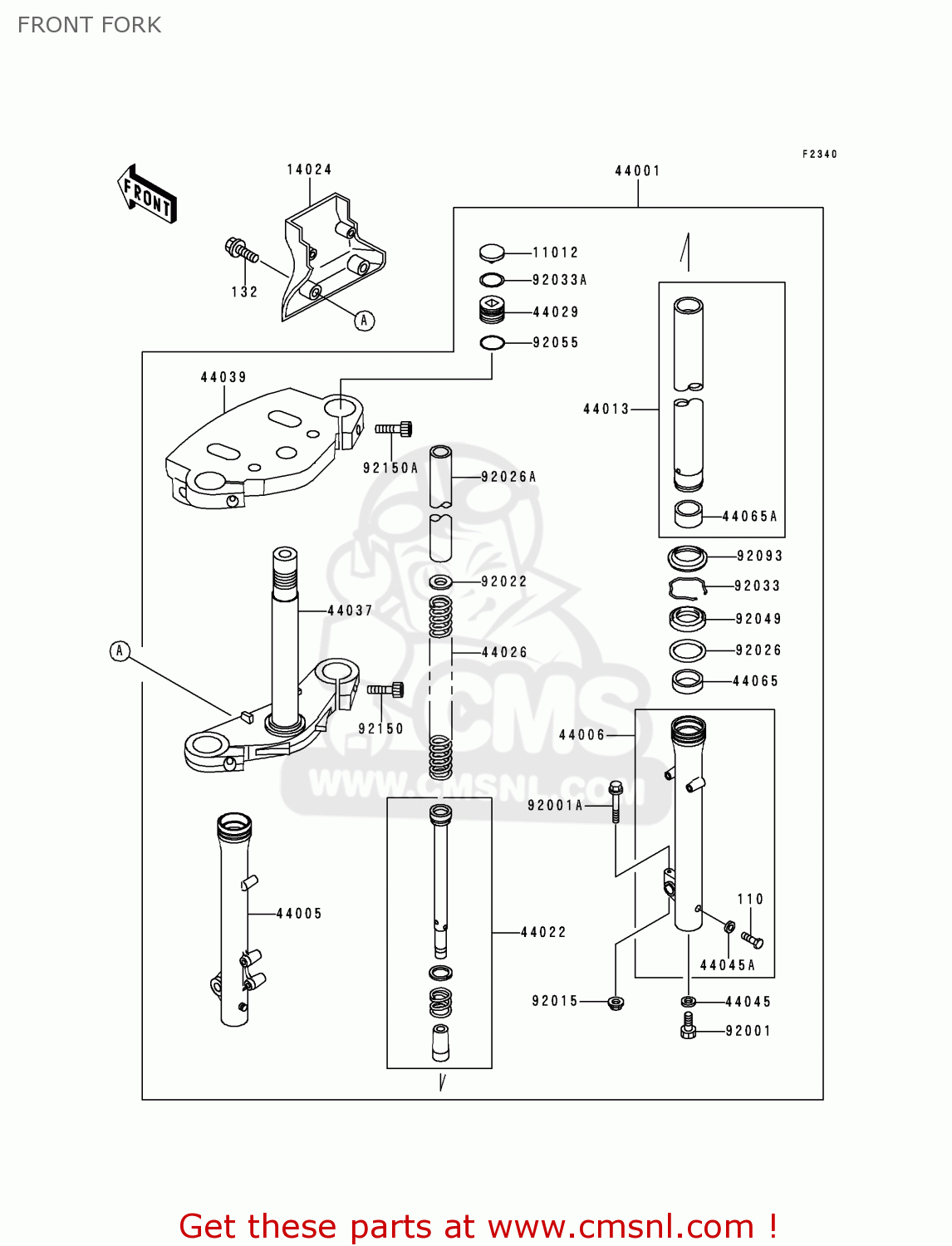

FRONT FORK

ref

part #

description

quantity

110

110B0608
ref: 110

BOLT-HEX HEAD,6X8

€ 0.50

132

132E0625
ref: 132

BOLT-FLANGED-SMALL

€ 3.00

11012

110121689
ref: 11012

CAP,FORK TOP

€ 21.00

14024

140241900
ref: 14024

COVER

€ 20.00

44001

440011752
ref: 44001

FORK-FRONT

€ 2,329.50

44005

440051230
ref: 44005

PIPE-LEFT FORK OUTER

€ 282.00

44006

440061230
ref: 44006

PIPE-RIGHT FORK OUTER

€ 277.00

44013

440131286
ref: 44013

PIPE-FORK INNER

€ 154.00

44022

440221178
ref: 44022

CYLINDER-FORK

€ 78.50

44026

440261464
ref: 44026

SPRING-FRONT FORK

€ 29.50

44029

440291124
ref: 44029

SEAT-FORK SPRING

€ 29.50

44037

440371265
ref: 44037

HOLDER-FORK UNDER

€ 195.50

44039

440391198
ref: 44039

HOLDER-FORK UPPER

€ 96.00

44045

44045051
ref: 44045

GASKET,FORK CYLINDER (NAS)

€ 4.00

44045A

44045052
ref: 44045A

GASKET,DRAIN PLUG (NAS)

€ 6.00

44065

440651068
ref: 44065

BUSHING-FRONT FORK

€ 16.00

44065A

440651069
ref: 44065A

BUSHING-FRONT FORK,IN

€ 16.50

92001

920011464
ref: 92001

BOLT

€ 4.00

92001A

920011486
ref: 92001A

BOLT,FLANGED,8X50

€ 7.50

92015

920151055
ref: 92015

NUT,8M/M

€ 3.00

92022

920221702
ref: 92022

WASHER

€ 3.00

92026

920261038
ref: 92026

SPACER,FORK

€ 6.50

92026A

920261392
ref: 92026A

SPACER

€ 14.50

92033

920331193
ref: 92033

RING-SNAP,FORK

€ 4.00

92033A

920331220
ref: 92033A

RING-SNAP,FORK TOP

€ 6.00

92049

920491226
ref: 92049

SEAL-OIL,FORK

€ 14.50

92055

920551359
ref: 92055

RING-O,FORK SPRING SE

€ 6.00

92093

920931196
ref: 92093

SEAL,FORK

€ 15.50

92150

921501387
ref: 92150

BOLT,SOCKET,10X25

€ 3.50

92150A

921501407
ref: 92150A

BOLT

€ 2.00
