FRAME

EN500A4 VULCAN500 1993 USA CALIFORNIA CANADA

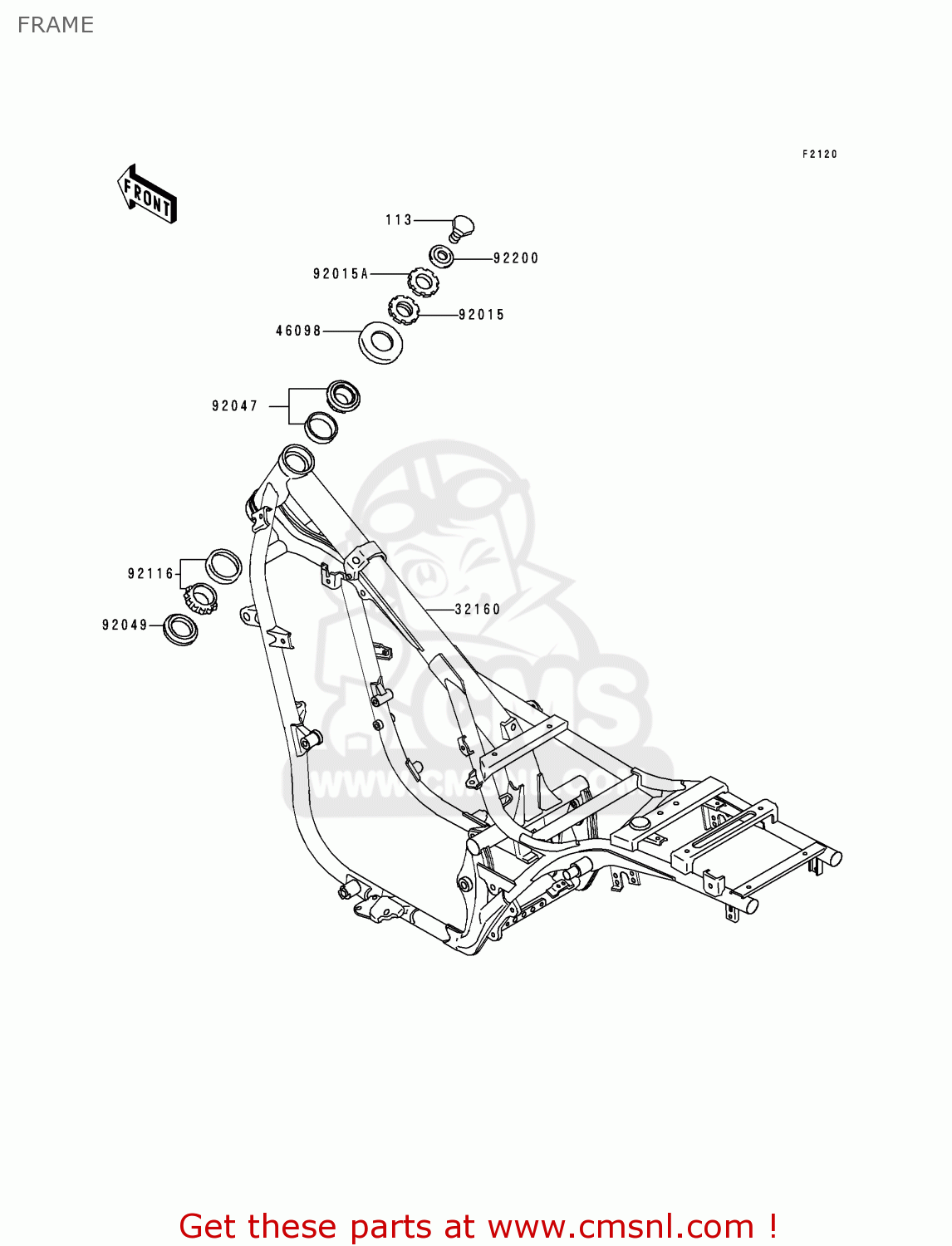

Frame diagram EN500A4 VULCAN500 1993 USA CALIFORNIA CANADA

FRAME EN500A4 VULCAN500 1993 USA CALIFORNIA CANADA

FRAME EN500A4 VULCAN500 1993 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

113

113G1425
ref: 113

BOLT-SMALL-FINE,14X25

€ 5.50

32160

321601107
ref: 32160

FRAME-COMP

€ 1,185.00

46098

46098017
ref: 46098

CAP,STEERING STEM

€ 4.00

92015

920151377
ref: 92015

NUT,25MM,T=10

€ 18.50

92015A

920151378
ref: 92015A

NUT,25MM,T=6

€ 14.50

92047

92047017
ref: 92047

CONE,STRNG,STEM

€ 49.50

92049

920491162
ref: 92049

SEAL-OIL,XMHE36X52X4J

€ 7.50

92116

921161009
ref: 92116

BEARING R,HR320/28XJ

€ 41.00

92200

922001140
ref: 92200

WASHER

€ 8.00
